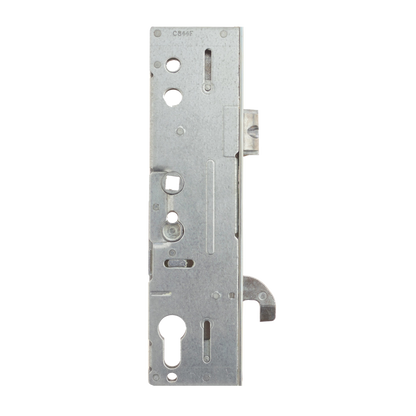

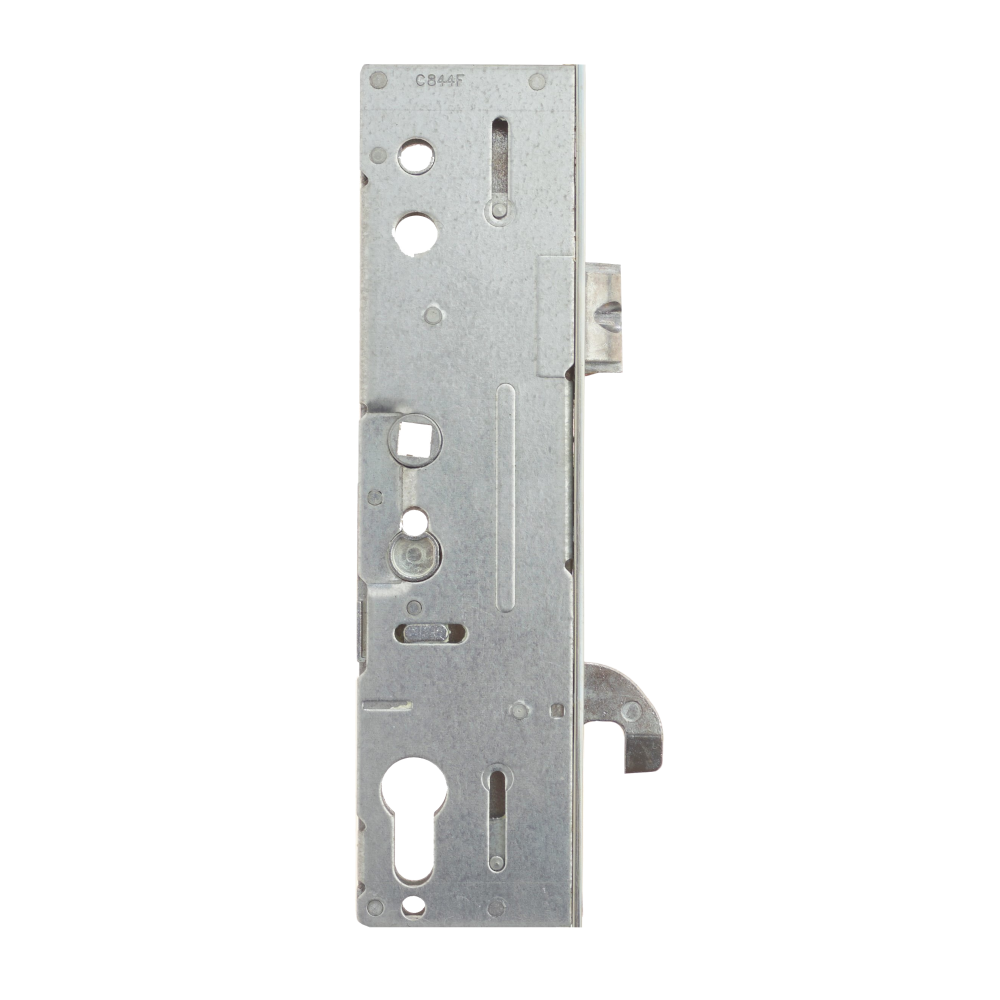

Single Spindle Latch & Hook Gearbox

The LOCKMASTER 21 Single Spindle Latch & Hook Gearbox is designed for versatility and durability, making it an excellent choice for various applications.

Specifications:

• Backset Options: 35mm or 45mm
• Centre Measurement: 92mm
• Configuration: Single spindle, latch & hookbolt centre case
• Dimensions:
  • Case Height: 228mm
  • Case Width: 50mm or 60mm

Handing:

The latch is easily reversible. Simply remove the screw in the latch, take it out, flip it to the opposite hand, and refit the screw for seamless adaptability.

Operation:

• Locking Method:
  • Lift the lever to engage the locking mechanisms.
  • Turn the cylinder one full turn to lock.
  • To unlock, turn the key one full turn and push down on the lever.

Features:

• Single spindle design for straightforward operation
• Reversible latch and snib for flexibility
• Constructed from galvanised mild steel for enhanced durability
• Latch & hook centre case for reliable security
• 92mm centres for compatibility with various door setups

This gearbox combines functionality with robust construction, ensuring reliable performance in securing your spaces.
