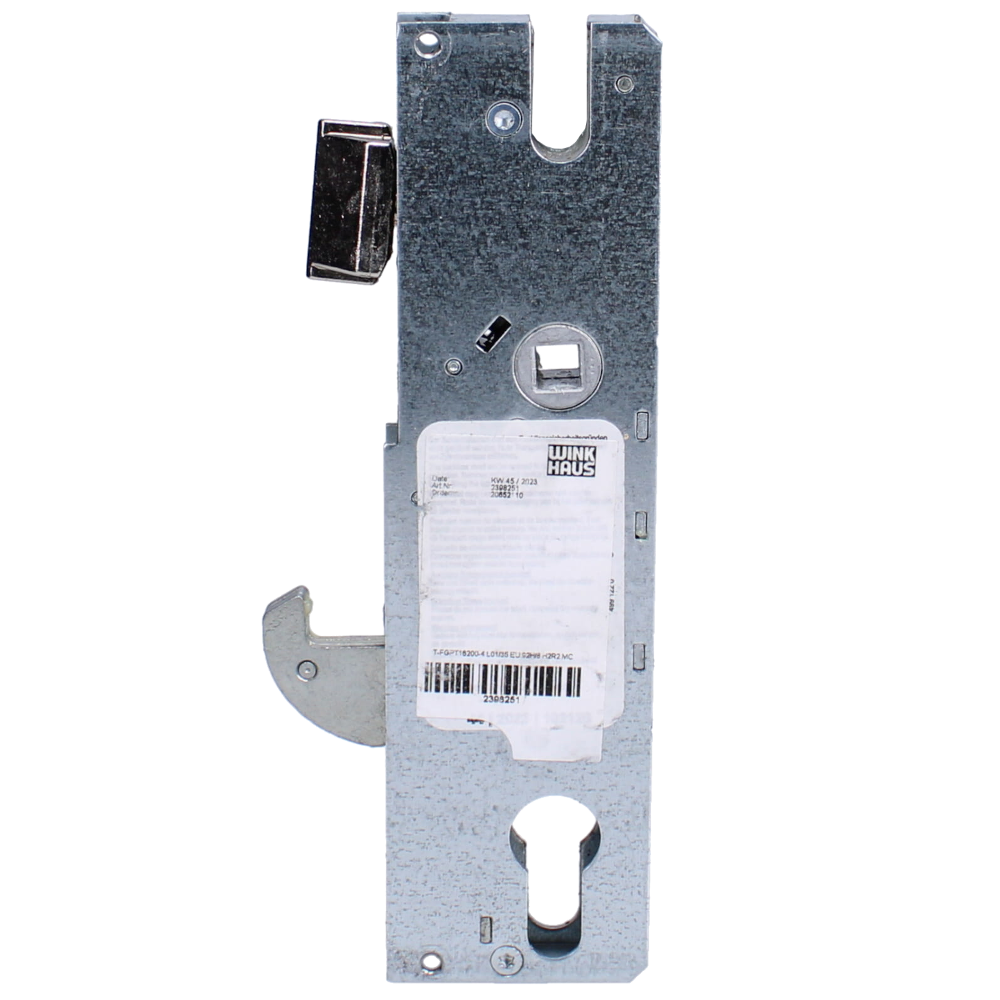

Scorpion Lever Operated Latch & Hook Gearbox

The WINKHAUS Scorpion Lever Operated Latch & Hookbolt Gearbox is designed for durability and efficiency, making it an excellent choice for both locksmiths and trade professionals. With a 35mm backset and 92mm centres, this gearbox is engineered to fit seamlessly into existing door systems, ensuring a smooth installation process.

Winkhaus gearboxes stand out due to their unique rivet fixation to the faceplate, which not only simplifies the replacement process during a gearbox swap but also enhances product identification. This feature is particularly beneficial for professionals who need to quickly assess and replace components.

Key Specifications

• Backset: 35mm
• Centres: 92 mm
• Spindle Type: Split 8mm
• Case Height: 185 mm
• Case Width: 50 mm

Identification

Winkhaus gearboxes are easily identifiable thanks to their rivet fixation, which distinguishes them from other brands.

Handing

To reverse the latch, simply insert a screwdriver into the rear of the case, push the latch forward, and rotate it to the opposite hand. This straightforward adjustment allows for versatile installation options.

Operation

• Locking Method:
  • Lift the lever to engage the locking mechanisms.
  • Turn the cylinder one full turn to lock.
  • To unlock, turn the key one full turn and push down on the lever.

Features

• Latch & Hookbolt mechanism
• Centre gearbox only
• 35mm backset
• Split spindle design

This gearbox offers a cost-effective solution for repairing or refurbishing existing door systems, allowing professionals to maintain functionality without the need for a complete replacement.
