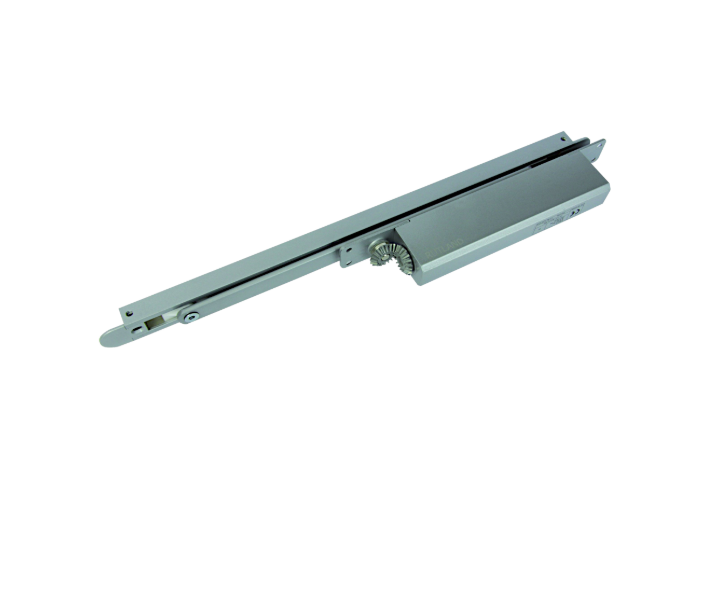

RUTLAND Fire Rated ITS.11205 Concealed Cam Action Door Closer EN 2-5

The Rutland ITS.11205.25 is a top-tier concealed door closer designed with a cam and roller mechanism, ensuring compliance with Approved Document M and BS 8300 recommendations. Its fully concealed design when the door is closed enhances aesthetics while maintaining functionality.

This closer is variable power adjustable (EN2-5), making it suitable for doors weighing up to 180Kg and measuring up to 1250mm in width. When paired with the optional IP.115 intumescent pack, it achieves a fire rating of EN1634-1, providing peace of mind in safety compliance.

With a remarkable 35-year manufacturer’s guarantee, this product is also CE and UKCA marked, ensuring high standards of quality and reliability.

Features:

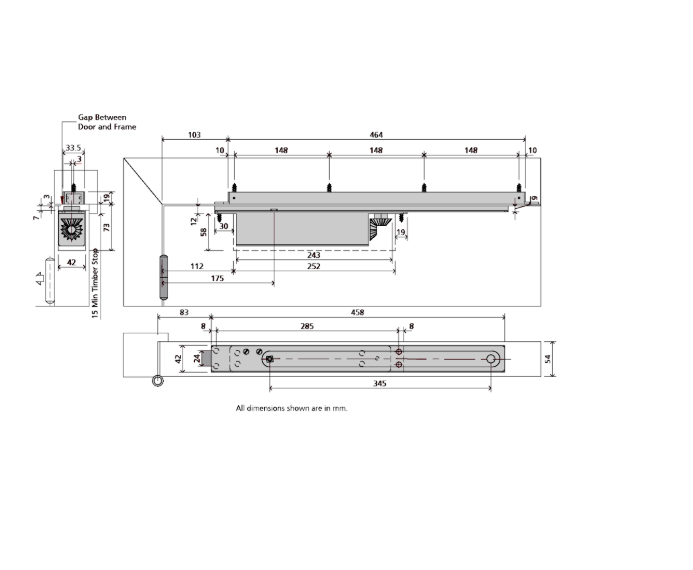

• Size:
  Height58mm

  Width24.3cm

  Depth42mm

  Max Door Weight180Kg

  Max Door Width1250mm

  Strength Size2 To 5

  Opening Angle Max120°
• Fits door width: 595mm to 1250mm
• Opening angle: 120°
• Assists BS8300 for Document M contracts, facilitating ease of opening
• Maximum door weight: 180Kg
• 35-year guarantee
• Fire tested: EN1634-1 with IP.115 intumescent pack
• CE & UKCA marked
• Concealed cam action closer
• Size EN 2-5 adjustable by spring
