ROYDE & TUCKER LP06 Letterplate Fire And Smoke Tested To Suit 42mm-47mm Thick Doors

Introducing the Royde & Tucker Fire Rated Letter Plate, a perfect blend of safety and functionality for your fire doors. Designed specifically for doors with a thickness of 42mm to 47mm, this letter plate is crafted from durable satin anodised aluminium, ensuring longevity and resilience.

Engineered to uphold the integrity of FD30-rated fire doors, it provides an impressive 30 minutes of fire resistance. The integrated intumescent liner is a standout feature, expanding under high temperatures to effectively seal the letter plate aperture, thereby preventing the spread of fire and smoke.

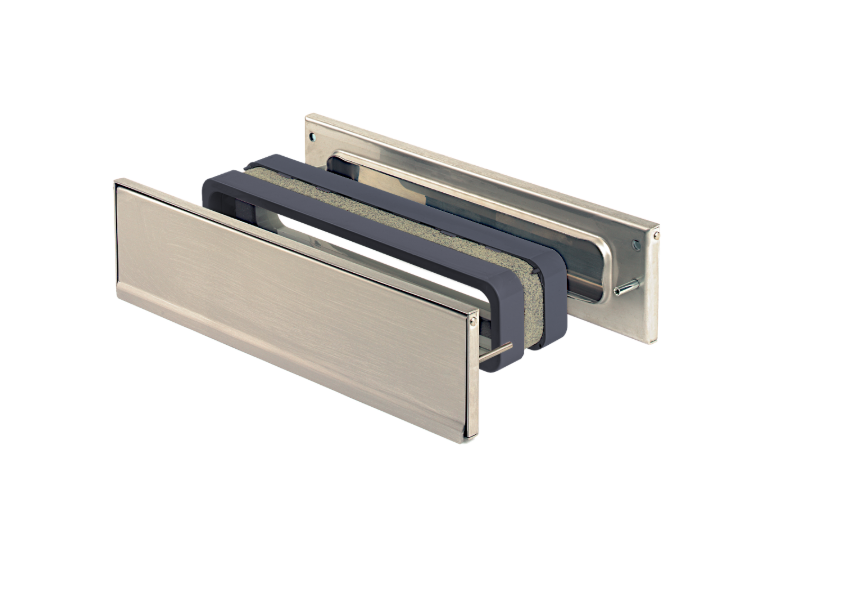

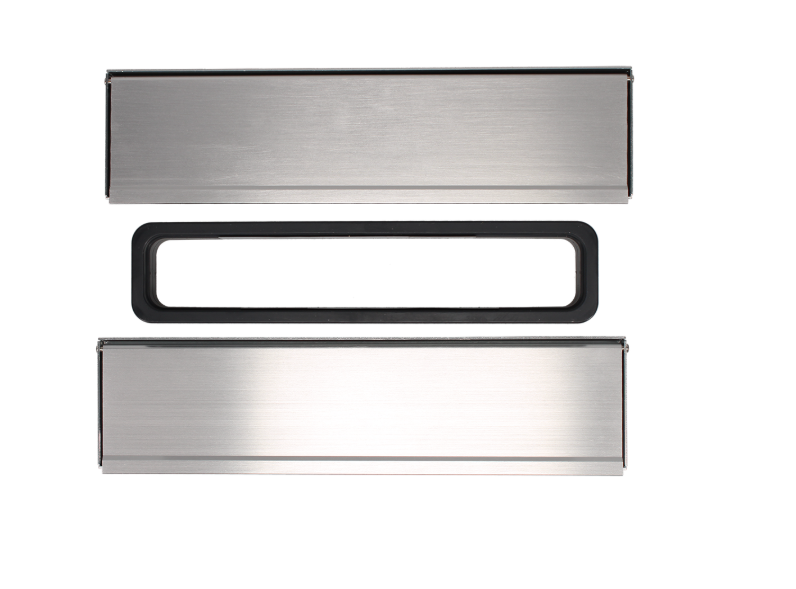

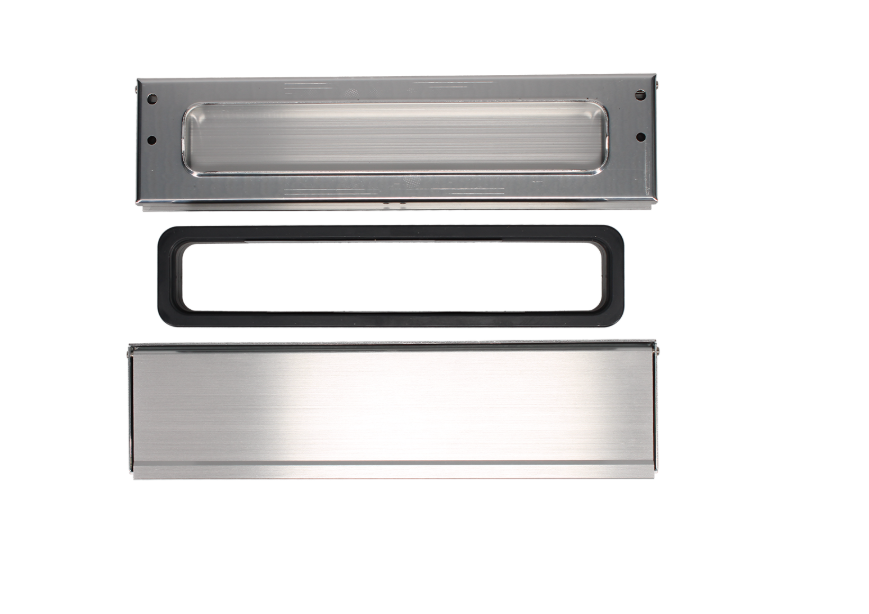

The assembly includes both internal and external flaps, complemented by an aperture liner. With magnets that securely hold the flaps closed, you can trust that this letter plate will perform reliably in critical situations.

Tested in accordance with BS 476 Part 22 and Certifire approved under certificate CF255, it meets stringent safety standards and is also approved for use on PAS 24 door sets.

Features

• Easy to install
• Approved for use on PAS 24 door sets
• Magnets hold the flaps closed
• Suits door thickness: 42mm-47mm
• Certifire approved (CF255)
• Aluminium flaps
• FD30S - 30 minute fire rated including smoke seals

Finish

• Satin Anodised Aluminium

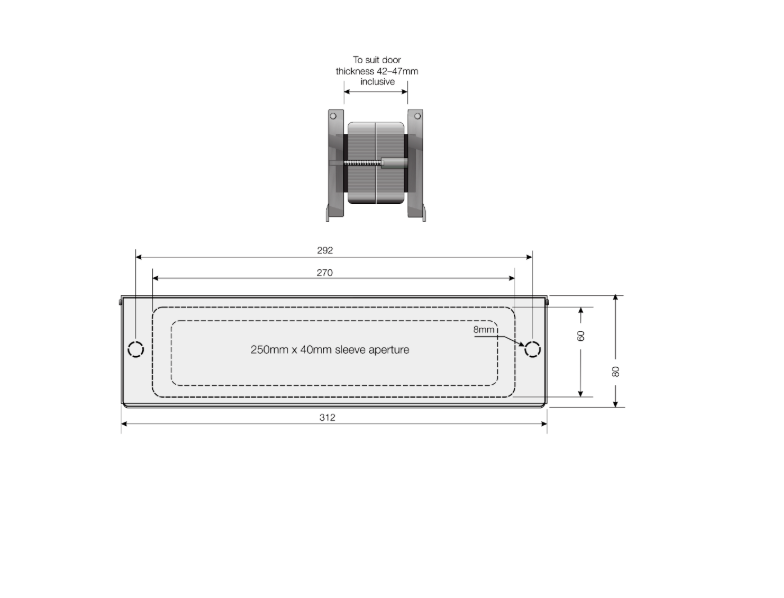

Size

• Height: 80mm
• Width: 31.2cm
• Screw Centres: 292mm
• Door Thickness: 42mm to 47mm
• Opening Size: 269mm x 60mm

Ensure your fire doors are equipped with the best in safety and functionality with the Royde & Tucker Fire Rated Letter Plate.
