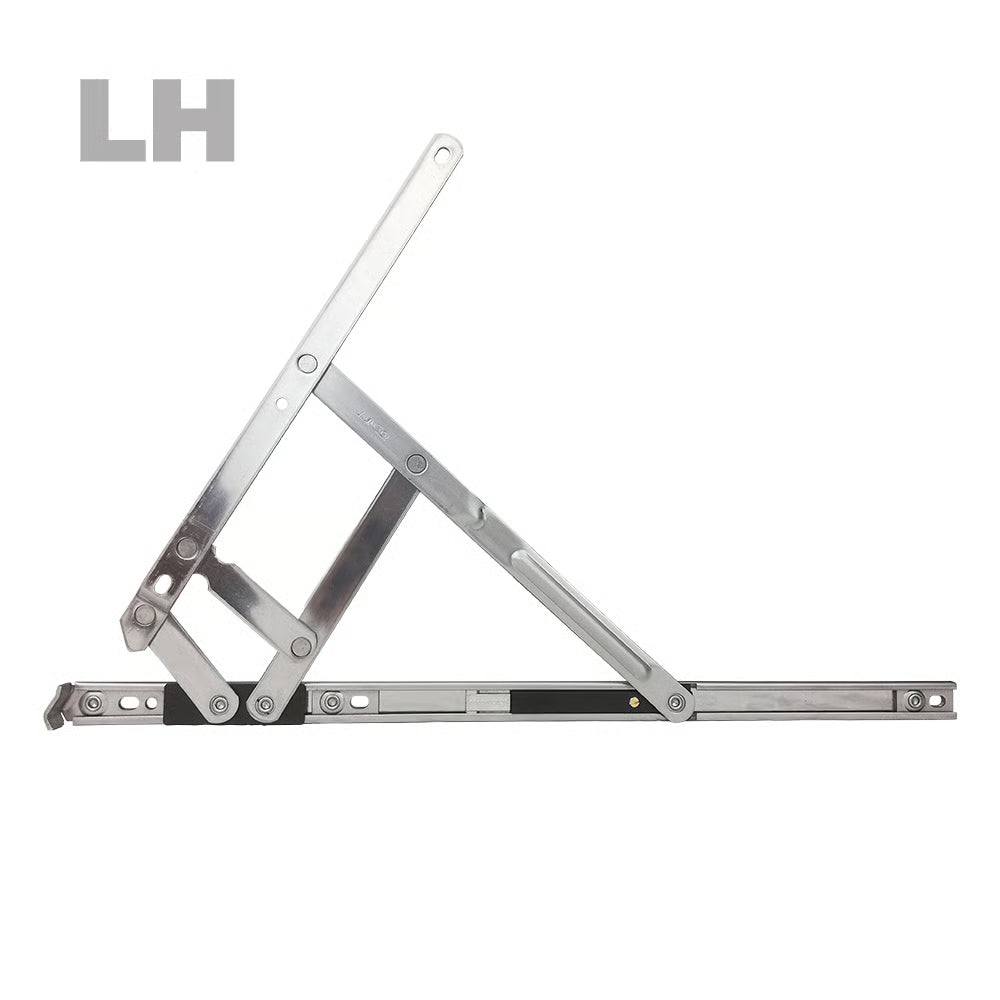

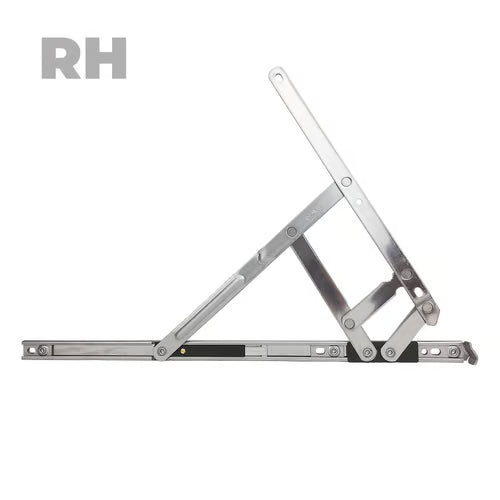

Restricted Egress Friction Stay

Product Information

The Nico Restricted Egress Friction Hinge seamlessly integrates the functionality of standard restrictors with the safety of egress-only hinges. This innovative design not only prevents accidental falls through windows in its initial restricted mode but also provides a swift escape route in emergencies, such as a fire, when in the egress position.

Each hinge is supplied in matched pairs, with the restricted egress hinge installed at the bottom of the sash and a matched unrestricted egress hinge at the top. The hinge features a single restrictor button that is cleverly designed to be less appealing to children, ensuring safety without compromising accessibility. Additionally, the hinge automatically resets after closure from the egress position, enhancing its user-friendly design.

Product Specification

• Length: 400mm
• Window Opening Restriction: Up to 100mm on sashes up to 700mm, subject to profile variations
• Child Resistant Catch Release: Allows full opening with automatic reset on closure
• Unique Geometry: Provides a greater clear opening for escape
• Material: Stainless Steel riveted nose cap for strength and reliability
• Wear Resistance: 3-stage counterbore process enhances durability
• Slide Material: Glass reinforced nylon to prevent breaking and wear
• Rivets: 4.8mm Stainless Steel rivets for improved load carrying capacity
• Corrosion Resistance: Exceptional stainless construction
• Adjustment: Brass adjustment screw for adjustable friction
• Guarantee: 10-year mechanical guarantee
• Manufacturing Standards: Made in Britain to an ISO 9001 Quality System
• Compliance: Meets BS EN14351 Load Bearing Capacity of Safety Devices
• Building Regulations: Complies with Part B: 2013 for Fire Escape
• Fire Safety Standards: Complies with BS 9991:2011 for Fire Escape
• Window Opening Compliance: Restricts openings to a maximum of 100mm in line with BS8213-1:2004
• Security Approval: Secured By Design Approved as a Police Preferred Specification
• Testing Standards: Successfully cycle tested per BS EN 6375 Pt 2 (Resistance to repeated opening and closing)
• Weather Testing: Successfully weather tested per BS EN 6375 Pt 1 (Air, wind, and water testing)
• Maximum Window Dimensions:
  • Width: 700mm
  • Height: 1300mm
  • Weight: 24KG
