Pro Secure TS007 2* Lever Lever UPVC Multipoint Door Handles - 92mm PZ Sprung 122mm Screw Centres

Product Information

The Mila ProSecure door handle range has been successfully tested to TS007:2012 and has achieved BSI's two-star Kitemark accreditation. The range has also been independently tested at the UKAS accredited Mila Test Centre, Exova Warrington, and British Standards Institute to meet the operational reliability requirements of PAS 023, the enhanced security requirements of PAS 024, and has passed the salt spray test requirements of BS EN 1670, achieving grade 5 for 480 hours. Additionally, it meets the Official Police Preferred Specification requirements of Secured by Design.

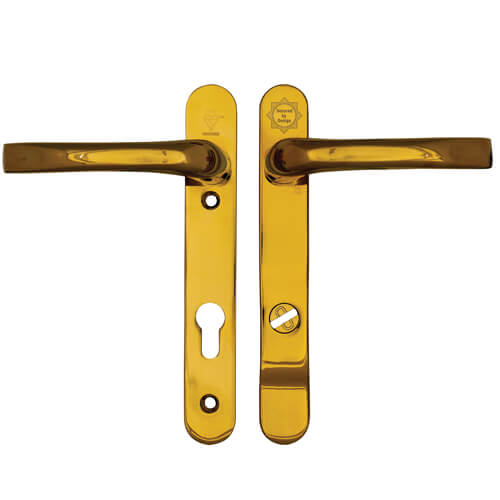

These handles from the ProSecure range, available in various finishes, feature sprung 92pz levers mounted on a backplate measuring 220mm in length and 35mm in width.

The distance between the fixing screws is 122mm, with the bottom screw positioned 28mm below the euro profile cut-out.

They are supplied as a pair, complete with fixings that include a spindle and two color-coordinated screws.

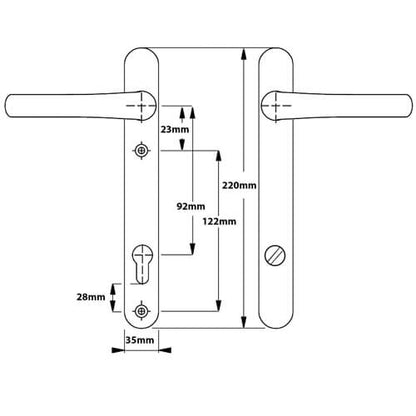

Product Specification

• Sprung
• Length: 220mm
• Width: 35mm (external), 32mm (internal)
• Centres (PZ): 92mm
• Screw centres: 122mm
• Base of euro to bottom screw: 28mm
• Top screw to spindle: 22mm
• PAS.24
• TS007 2*
• Supplied with spindle & screws
• Supplied as a pair
• Non-handed
• Boxed
