PM552 Non British Standard 5 Lever Mortice Deadlock

The Yale 5 Lever mortice dead lock is designed for both internal and external wooden hinged doors, offering a medium level of security. While these locks do not independently meet the BS3621 standards, they are often paired with a British Standard nightlatch, such as the Yale PBS1, to fulfill insurance requirements.

Key Features:

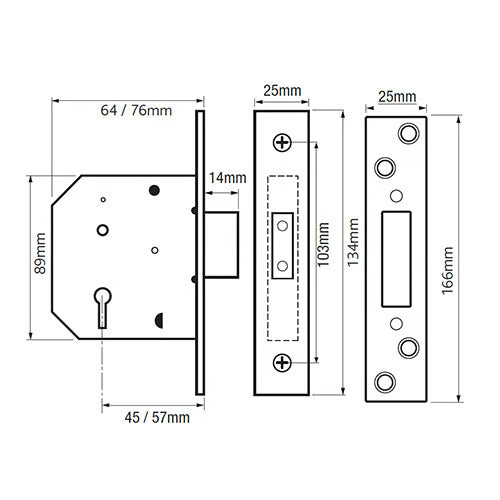

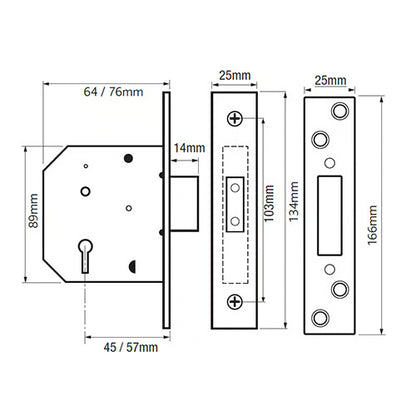

• Unique Measurements: This lock features a grey case with distinct measurements that set it apart from other mortice locks. Refer to the line drawing for specifics.
• Durability: The deadbolt throws 14mm and includes hardened steel rollers to resist sawing attacks.
• Dual-Sided Operation: The deadbolt can be locked and unlocked from either side using a key.

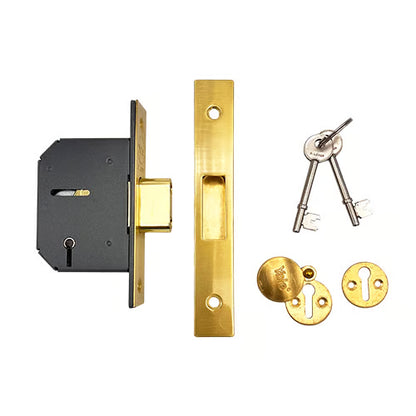

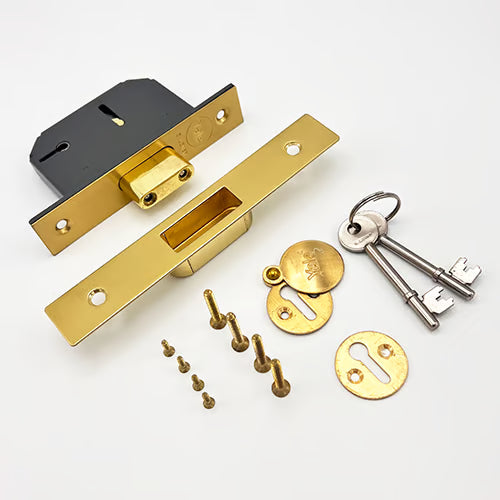

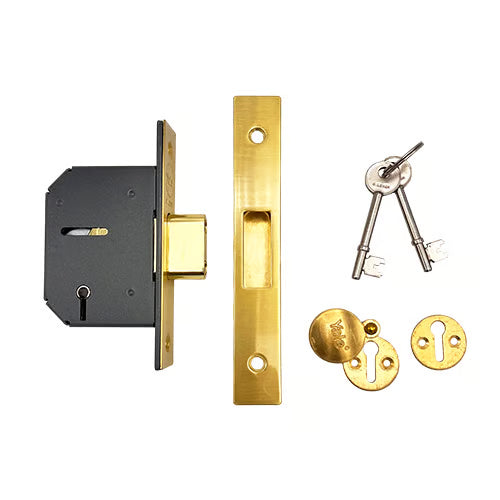

• Complete Package: Supplied with two keyhole escutcheons in a matching finish for both sides of the door, along with a security striking box.
• Versatile Fit: Suitable for doors up to 54mm thick. For thicker doors, extra-long keys may be available upon request.
• Non-Handed Design: This lock can be used on doors hinged on either side, opening inwards or outwards.
• Key Options: Comes with two nickel-plated steel keys. Additional keys can be cut as needed.
• Associated Parts: A range of related products, including key blanks and rebate sets for double doors, are available.

Product Specifications:

• Category: Mortice Deadlock
• Type: 5 Lever
• Case Colour: Grey
• Case Height: 89mm
• Faceplate Height: 134mm
• Faceplate Width: 25mm
• Deadbolt Throw: 14mm
• Keys Supplied: 2
• Handed: Non-handed
• Escutcheon Plates: Included
