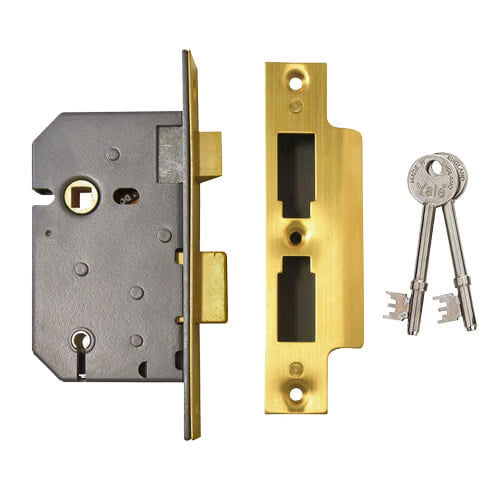

PM550 Non British Standard 5 Lever Mortice Sashlock

Introducing the Yale 5 Lever Mortice Sash Lock, designed for both internal and external wooden hinged doors, offering a medium level of security. While this lock provides reliable protection, please note that it does not meet the BS3621 requirements on its own.

Key Features

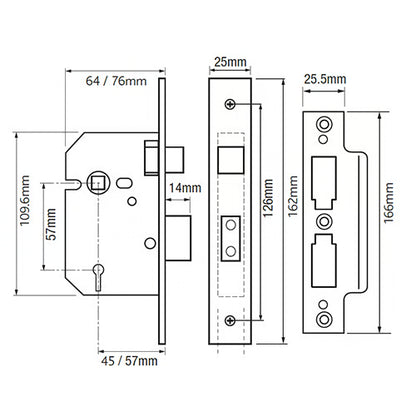

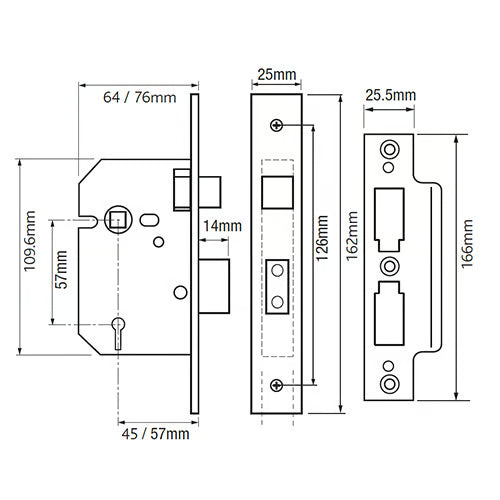

• Unique Design: This lock features a grey case with specific measurements that distinguish it from other mortice locks. Refer to the line drawing for precise details.
• Durability: The deadbolt throws 14mm and includes hardened steel rollers to resist sawing attacks, ensuring enhanced security.
• Versatile Operation: The deadbolt can be locked and unlocked from either side using a key, while the latch is easily withdrawn by moving the handle from either side.
• Security Striking Box: Supplied with a matching security striking box for added protection.
• Compatibility: Suitable for doors up to 54mm thick. For thicker doors, extra-long keys may be available upon request.
• Non-Handed Design: This lock can be used on doors hinged on either side, opening inwards or outwards.
• Key Options: Comes with 2 nickel-plated steel keys. Additional keys can be cut upon selection of genuine or copy key blanks.
• Associated Parts: A range of associated parts, including key blanks and rebate sets for double doors, are available for selection.

Product Specifications

• Category: Mortice Sashlock
• Type: 5 Lever
• Case Colour: Grey
• Handle Piercing Size: 38mm
• Case Height: 108mm
• Centres: 57mm
• Faceplate Height: 162mm
• Faceplate Width: 25mm
• Deadbolt Throw: 14mm
• Follower Size: 8mm
• Keys Included: 2
• British Standard: No
• UKCA Marked: No
• CE Marked: No
• Certifire Approved: No
• Fire Rated: No
• Keyed Alike: No
• Handed: Non-handed
• Escutcheon Plates Supplied: No
