PM320 3 Lever Mortice Sashlock

Product Overview: Yale PM322 3 Lever Mortice Sash Lock

The Yale PM322 3 lever mortice sash lock is an ideal choice for internal wooden doors, combining reliability with the trusted Yale brand reputation. This lock is a popular option among consumers, available in DIY centers and online.

Key Features:

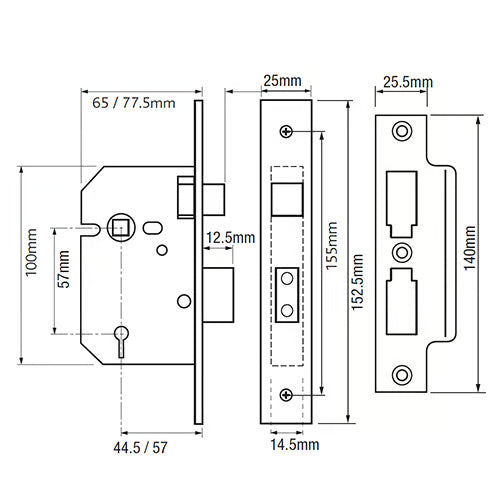

• Unique Design: The lock features a grey case with specific measurements that distinguish it from other mortice locks. Refer to the line drawing for precise details.
• Finishes Available: Choose between polished brass or chrome finishes, conveniently packaged in clam packs for retail display.
• Security Specifications: The deadbolt extends 12.5mm. For enhanced protection against sawing attacks, consider upgrading to a 5 lever version with attack prevention features.
• Operation: The deadbolt can be locked and unlocked from both sides using a key, while the latch is easily withdrawn by moving the handle from either side.

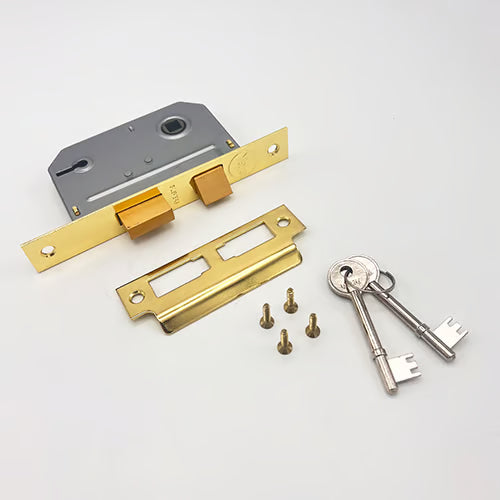

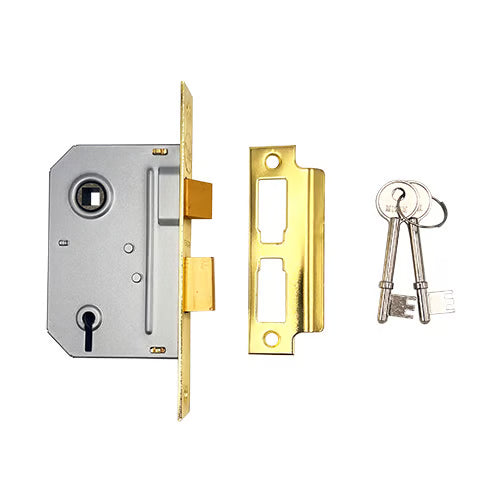

• Included Accessories: Each lock comes with a matching striking plate and two steel keys. Additional keys can be ordered, with options for genuine or copy key blanks.
• Versatile Use: Suitable for most internal wooden doors, this lock is non-handed, making it compatible with left or right-hinged doors that open inwards or outwards.

• Product Specification

  • Product category: Mortice Sashlock
  • Product type: 3 Lever
  • Case colour: Grey
  • Handle piercing size: N/A
  • Case height: 100mm
  • Centres: 57mm
  • Faceplate height: 155mm
  • Faceplate width: 22mm
  • Deadbolt throw: 12.5mm
  • Follower size: Non handed
  • Keys: 2
  • British Standard?: No
  • UKCA marked?: No
  • CE marked?: No

  • Fire rated?: No
  • Can be keyed Alike?: No
  • Handed?: Non handed
  • Escutcheon plates supplied: No
