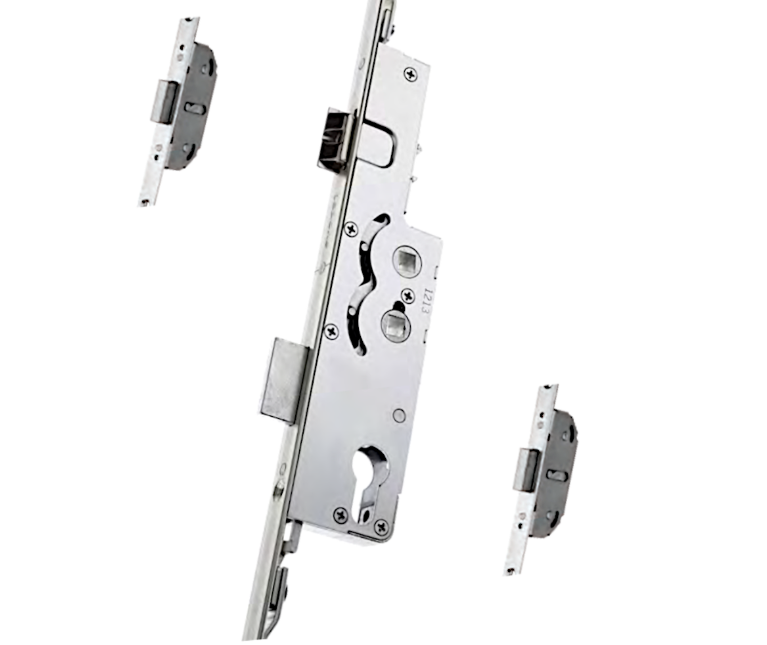

Pioneer Caravan Lock Latch & Deadbolt With 2 Deadbolt

The AVOCET Pioneer Caravan Lock Latch & Deadbolt is designed for optimal security and versatility in caravan applications. With a robust construction and thoughtful features, it ensures reliable performance and ease of use.

Key Specifications

• Backset: 35mm
• Centres: 92mm
• Case Height: 220mm
• Case Width: 50mm
• Operation: Twin spindle for lever/lever or lever/pad configurations

Accreditation

This lock boasts corrosion resistance in accordance with EN1670: Grade 4, having undergone 240 hours of Neutral Salt Spray (NSS) testing, ensuring durability in various weather conditions.

Identification Features

• Brand Marking: "AVOCET" stamped on the faceplate
• Unit Length: Short length of 1,565mm, tailored for caravan doors
• Center Case: Notable large cut-out step in the top corner for easy identification

Gearbox Details

The latch & deadbolt gearbox features a twin spindle design, with dimensions of 220mm in height and 50mm in width, ensuring a secure fit and reliable operation.

Additional Locking Points

In addition to the internal locking mechanisms, the full-length strip includes two deadbolt locking points for enhanced security.

Faceplate Specifications

• Width: 16mm, suitable for UPVC and composite applications
• Length: 1.565m, designed specifically for caravan doors

Locking Point Distances

• Distance A: 685mm
• Distance B: 715mm

Croppable Design

The full-length unit can be cropped to adjust the strip height, allowing for a customized fit based on the door specifications.

Handing Adjustment

The latch can be easily reversed by removing the screw, flipping the latch, and reattaching the screw, providing flexibility for installation.

Spung/Unsprung Operation

The gearbox is unsprung and must be paired with sprung handles or a compatible spring cassette to ensure proper operation and reliable lever return.

Operation Instructions

• Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push down on the lever.

Features Summary

• Latch & deadbolt gearbox
• Twin spindle (92mm/62mm centres)
• Corrosion resistance: Meets BS EN 1670:20007 Grade 4
• Endurance tested for 100,000 operations
• Suitable for both lever/lever and lever/pad applications
• 35mm backset with a 20mm deadbolt throw
• Reversible center latch
• Length of 1565mm for caravan doors

This lock is an excellent choice for caravan owners seeking a reliable and versatile locking solution.
