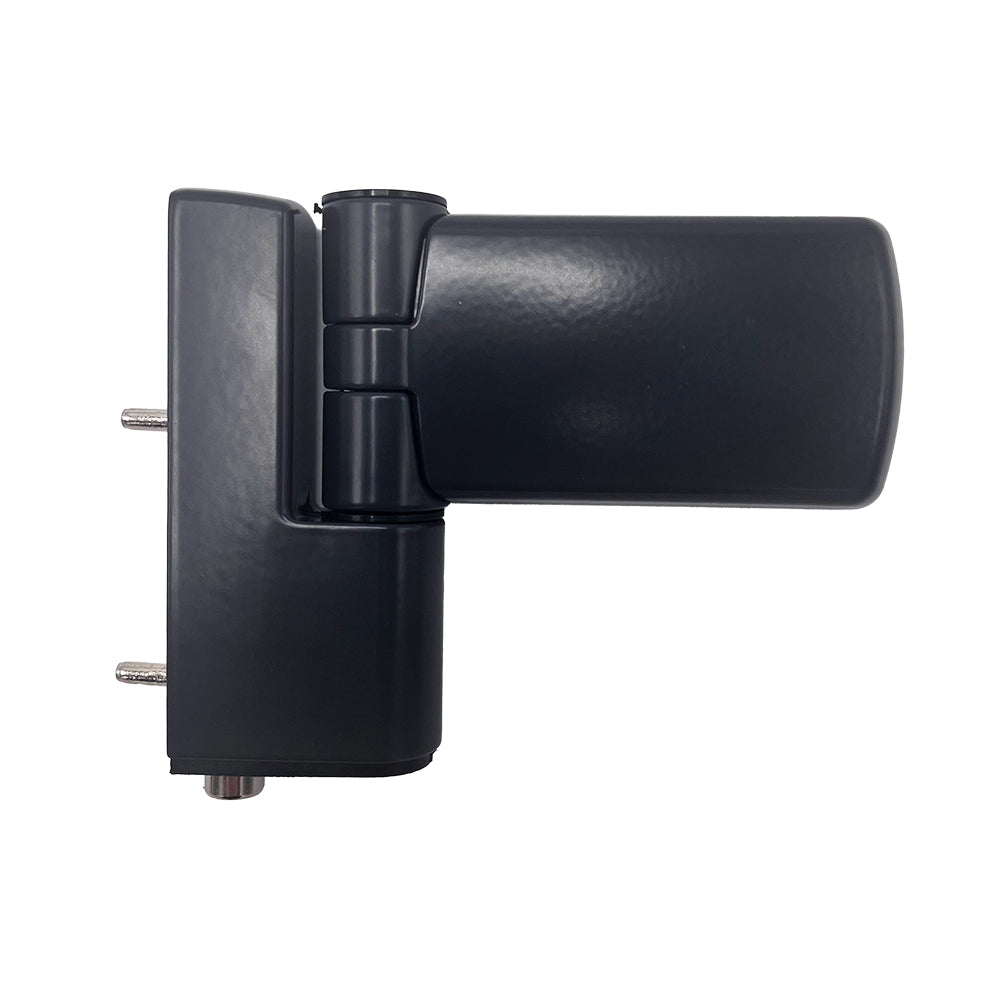

Patriot Plus 3D Flag Hinge

Introducing the Trojan Patriot Plus 3D Flag Hinge, the perfect solution for your door applications that demand precision and versatility. This innovative hinge features a three-dimensional adjustable design, allowing for seamless vertical, horizontal, and compression alignment.

Available in three profile step heights—16mm, 19mm, and 22mm—this hinge can support a maximum door weight of 80kg when fitted with three hinges, ensuring durability and reliability. Choose from a variety of stylish colours including white, black, brown, and anthracite grey to perfectly match your door and frame.

Key Features

• 3D Adjustability: Effortlessly adjust for vertical, horizontal, and compression alignment.
• Profile Step Heights: Options of 16mm, 19mm, or 22mm to suit your specific needs.
• Maximum Load Capacity: Supports up to 80kg when using three hinges.

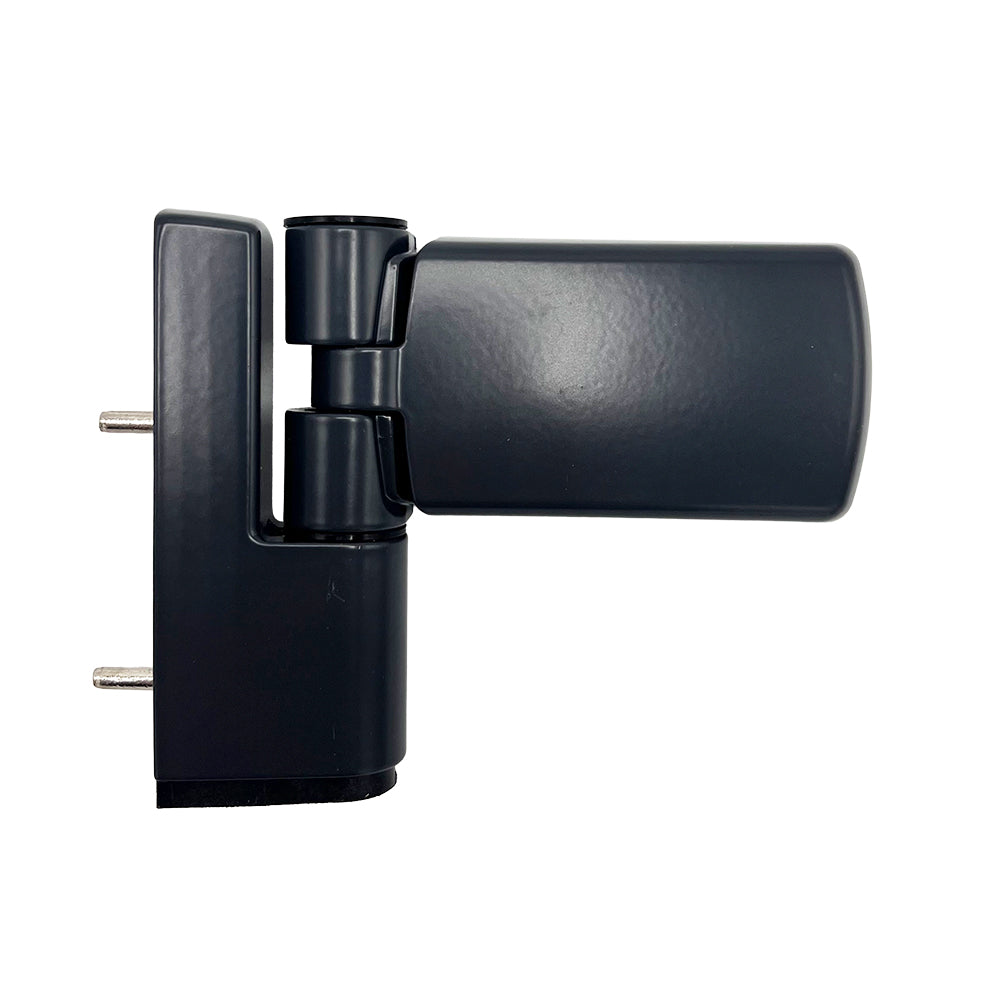

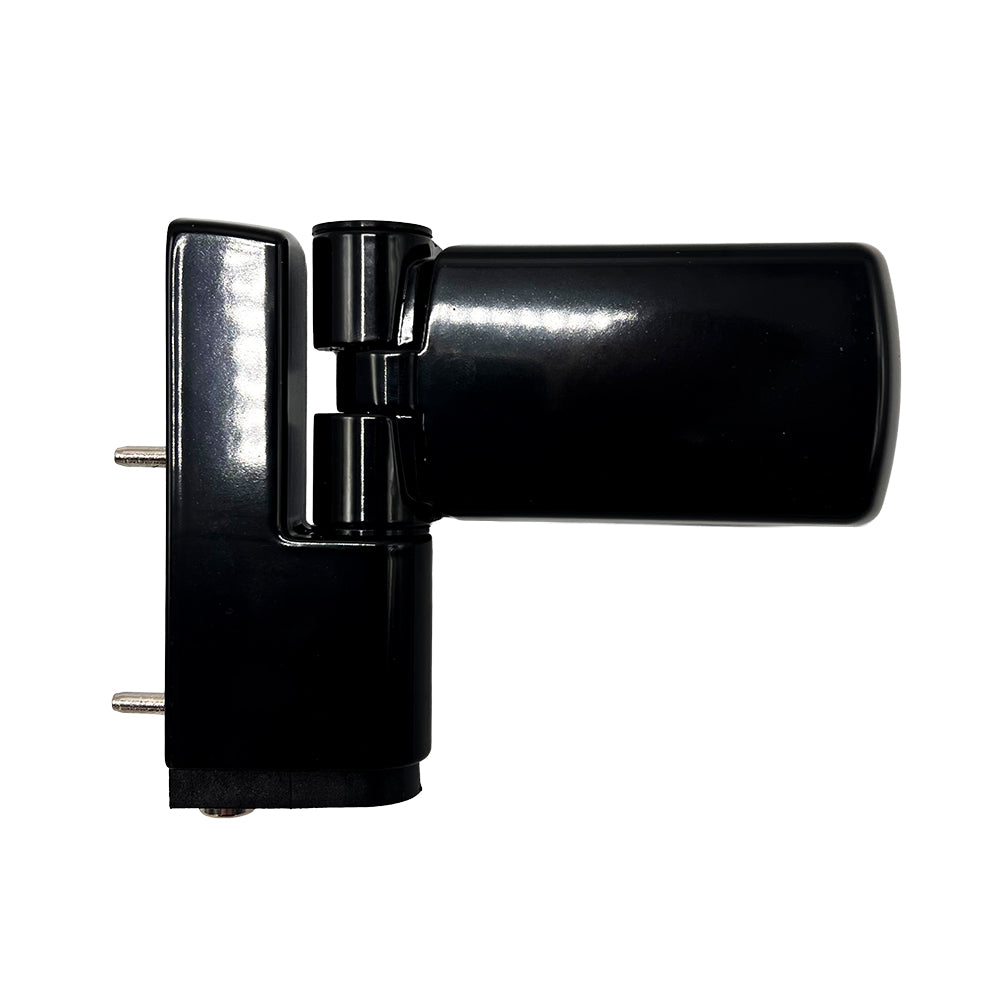

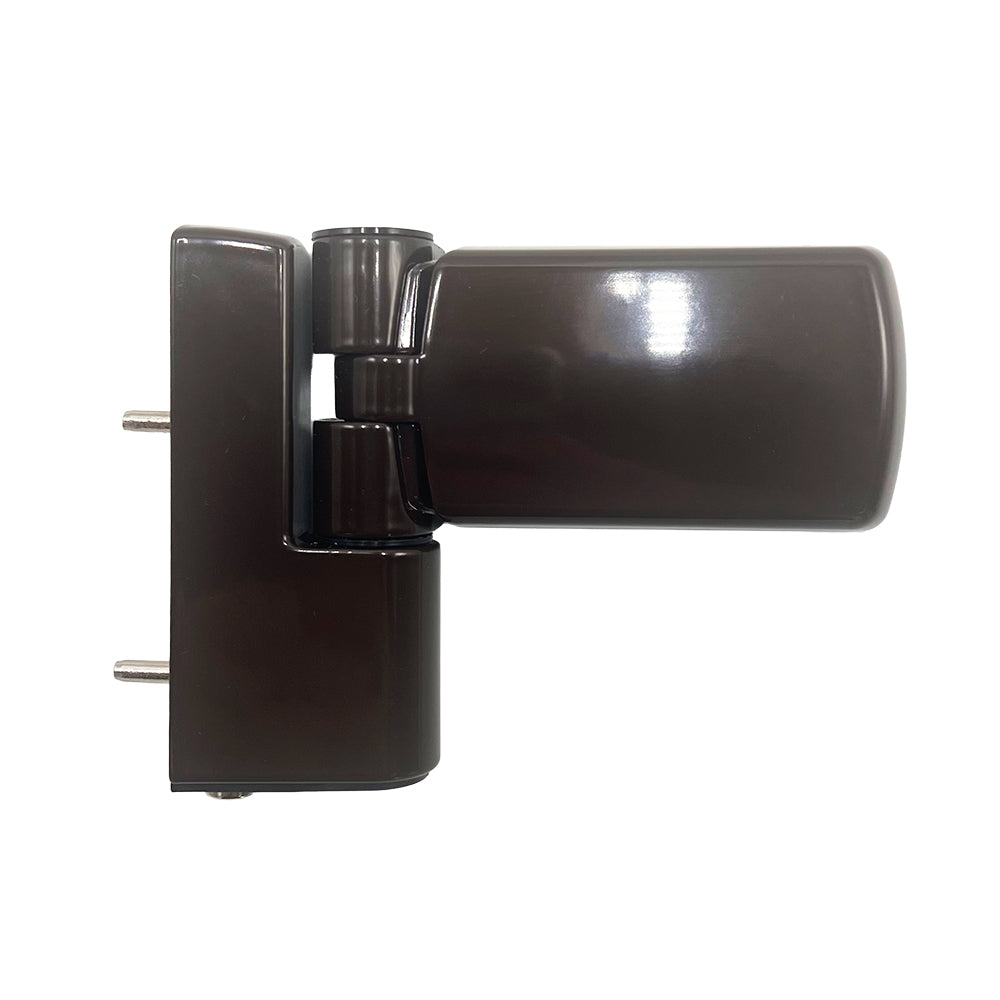

• Colour Variety: Available in white, black, brown, and anthracite grey.
• Flag Hinge Design: Ideal for doors requiring step-in profiles.

Fitment & What to Check

To ensure optimal performance, please verify the following:

• Profile Step Height: Ensure it matches your door and frame configuration for correct alignment.
• Door Weight: Confirm that the total weight does not exceed 80kg when using three hinges.
• Hinge Dimensions & Colour: Check that these match your door and frame requirements.
• Installation: Use appropriate screws for fixing to the door and frame, and consider hinge orientation based on door handing.

Common Ordering Mistakes

Avoid these pitfalls when ordering:

• Incorrect Profile Step Height: Ensure you select the right height for your door profile.
• Exceeding Weight Capacity: Do not exceed the maximum load for the number of hinges used.
• Mismatched Colour: Choose a colour that complements your door or frame finish.
• Neglecting Door Handing: Always confirm door handing and hinge orientation before placing your order.

Product Specification

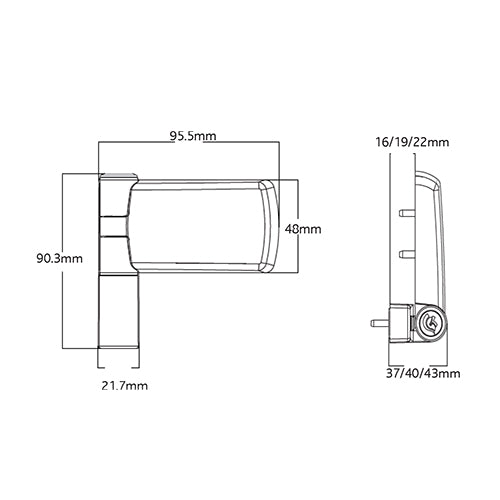

• Size: 90.3mm height x 95.5mm width.
• Profile Step Height: Select from drop-down menu.
• Max Load: 80kg for three hinges.
• Colour: Select from drop-down menu.
• Height Adjustment: +8mm.
• Compression Adjustment: +/-1.5mm.
• Lateral Adjustment: +/-6mm.

Elevate your door functionality with the Trojan Patriot Plus 3D Flag Hinge—where precision meets style!
