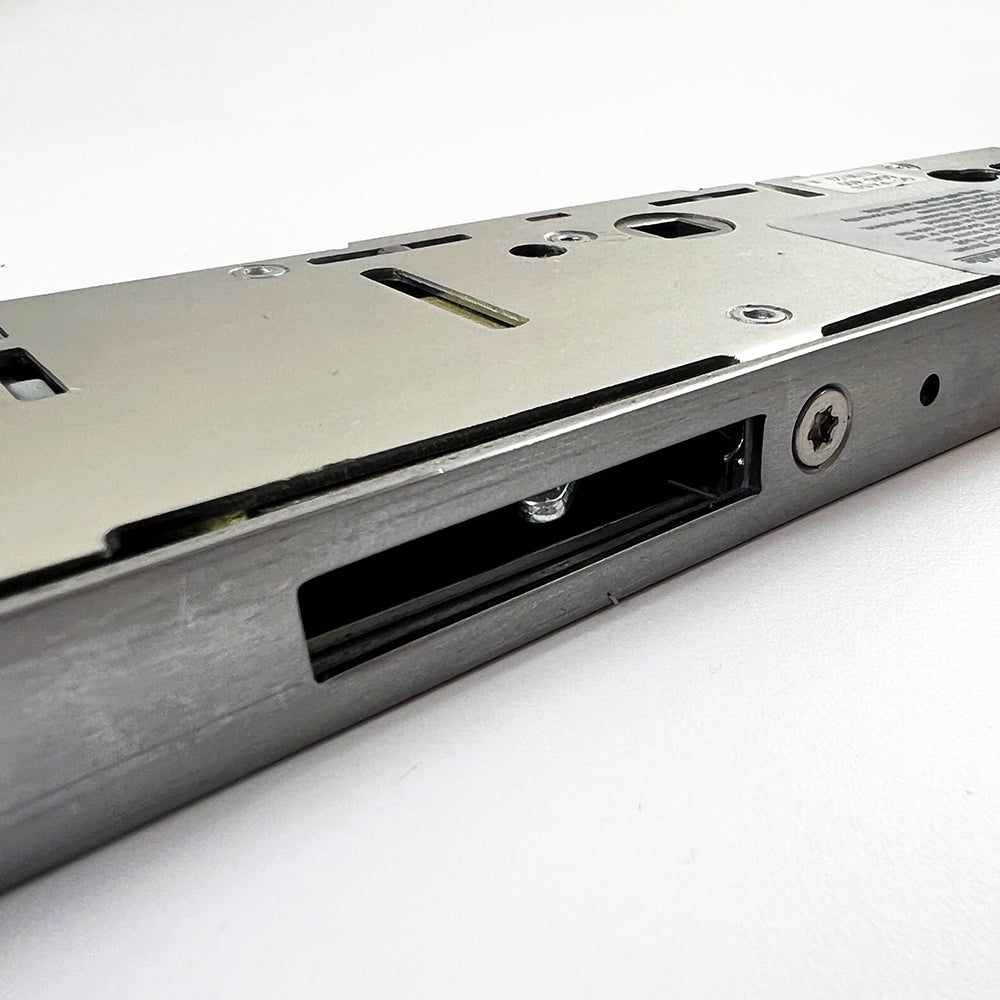

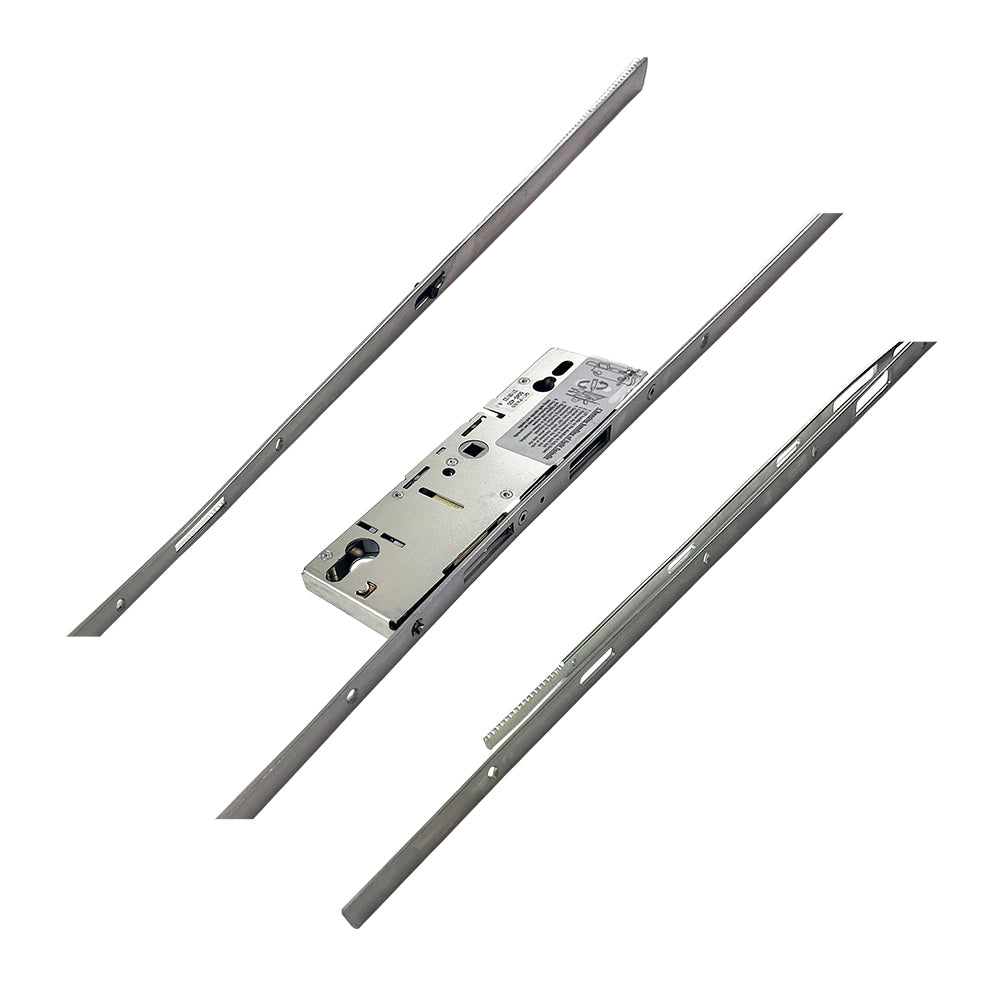

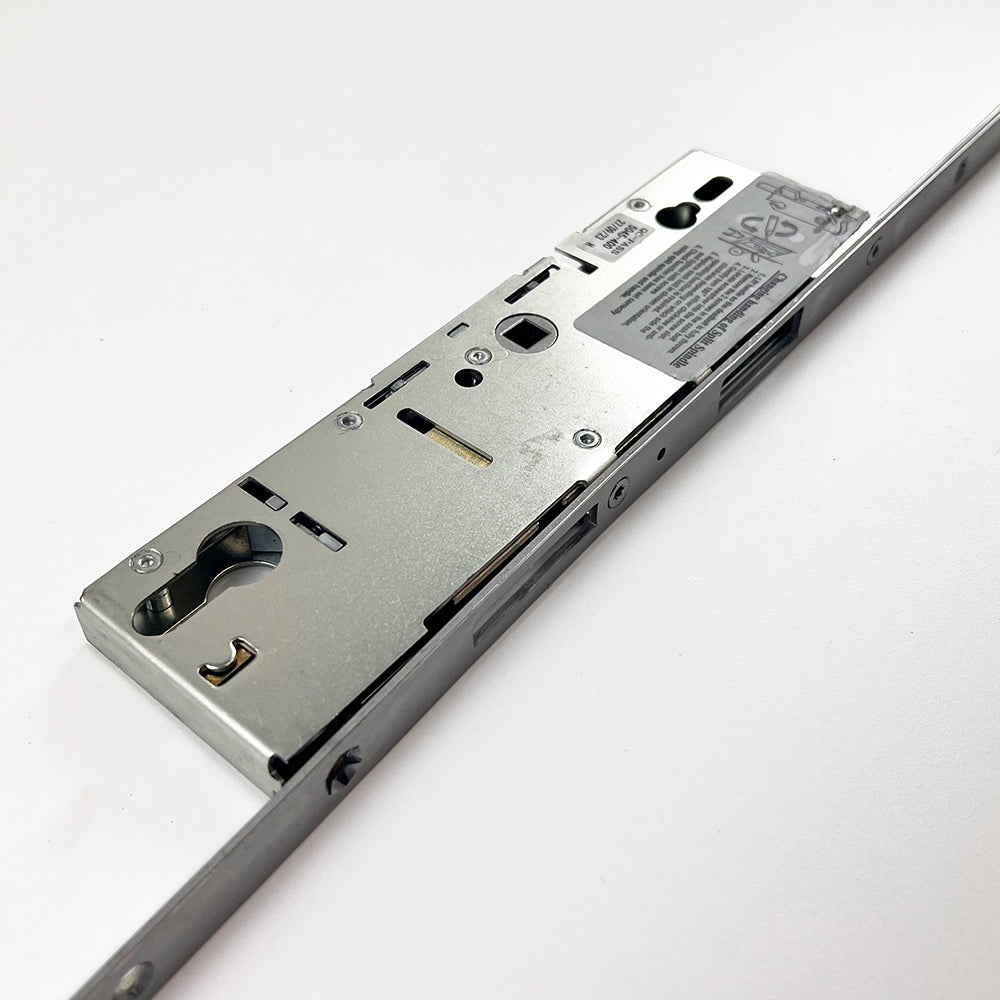

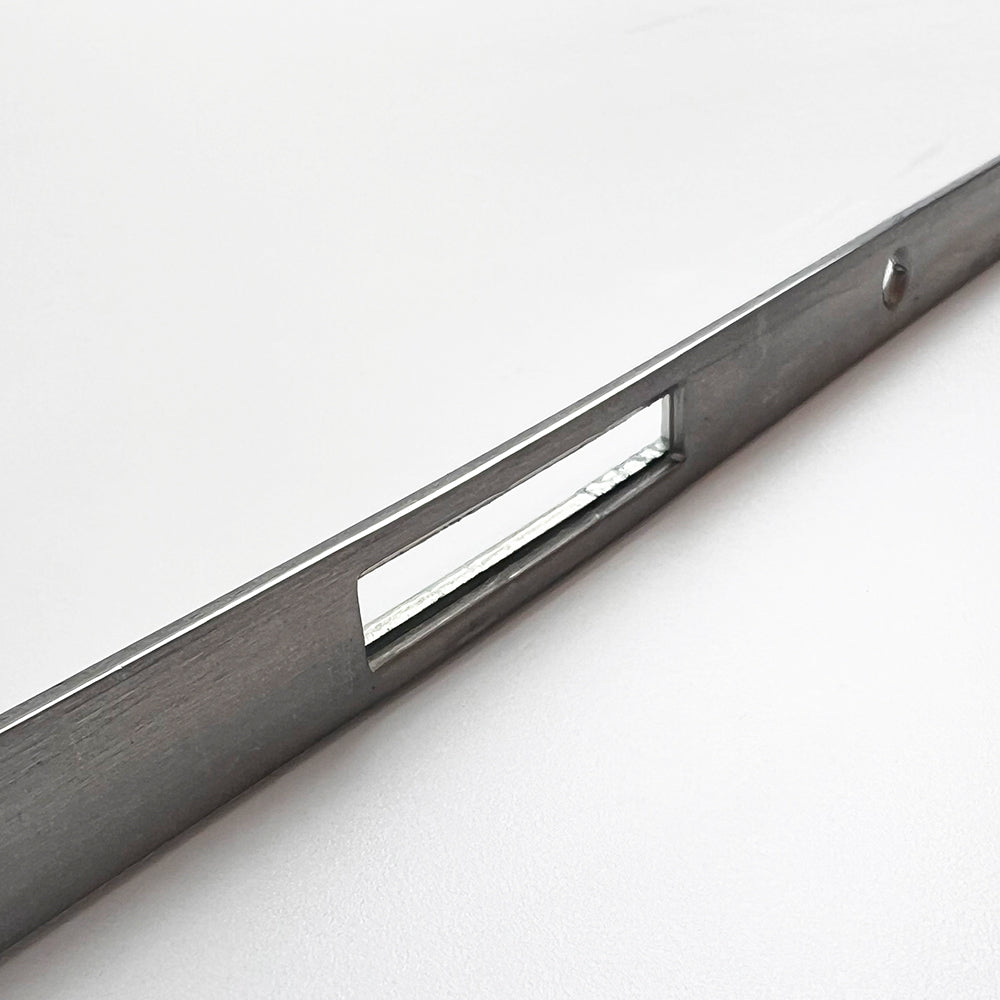

Passive Lock Lift Lever Multipoint Door Lock - Interlocking Composite Door Version

Product Overview: ERA Passive Multipoint Door Lock

The ERA Passive multipoint door lock is designed specifically for the passive door in a pair of French doors, ensuring both security and ease of use. This lock operates without locking points and is compatible with the ERA 7145 deadbolt, providing a comprehensive locking solution for your French doors.

Key Features:

• Designed for Passive Doors: Ideal for the secondary door in French door setups.
• Integration with Primary Lock: Works seamlessly with a standard multipoint door lock on the main door.
• Secure Locking Mechanism: Utilizes shootbolts to firmly secure the secondary door leaf to the frame when locked.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Additional Information:

We offer a variety of associated products for the ERA Passive multipoint door lock, including keeps, spindles, handles, and other accessories to enhance your locking system.

Latch Reversal: This passive door lock is unhanded and does not feature a latch, making it versatile for various installations.

Applications: Suitable for both timber and composite doors, ensuring a secure fit for your specific needs.

Product Specification

• Manufacturer: ERA
• Backset: Select from drop-down
• Centres PZ: 92mm
• Faceplate: Select from drop-down
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Operation: Select from drop-down
• Spindle: Single 8mm
• Handing: Non handed
• Height: 2120mm
• Door Material: Timber, Composite

Measuring Guidelines:

To ensure a perfect fit for your ERA Passive multipoint door lock, here are some quick tips on how to measure the essential components:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole or cylinder.
2. Ensure the measurement is taken straight across for accuracy.

Centres PZ Measurement:

1. Measure the distance from the center of the keyhole to the center of the handle spindle.
2. This measurement is crucial for ensuring that the lock aligns properly with the handle.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate on your door.
2. If replacing, ensure the new faceplate matches these dimensions for a seamless installation.

By following these guidelines, you can confidently select the correct specifications for your door lock installation.
