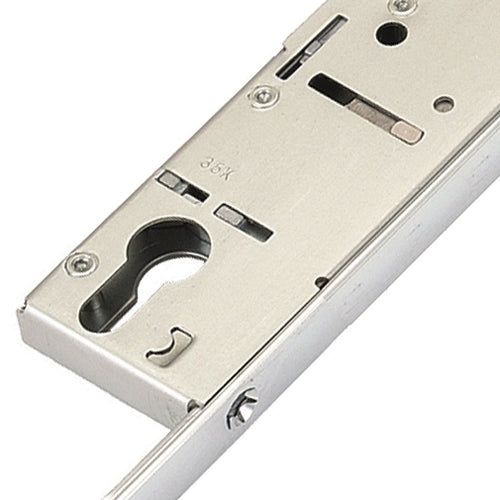

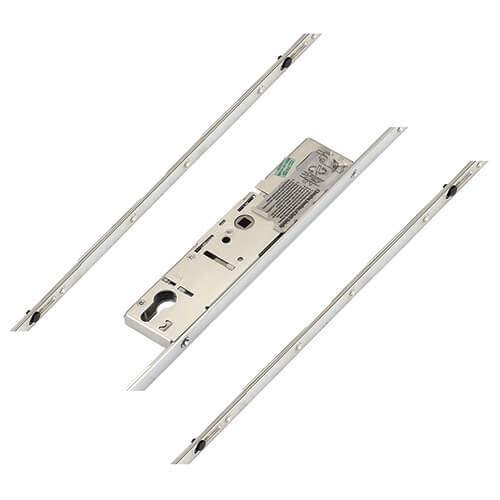

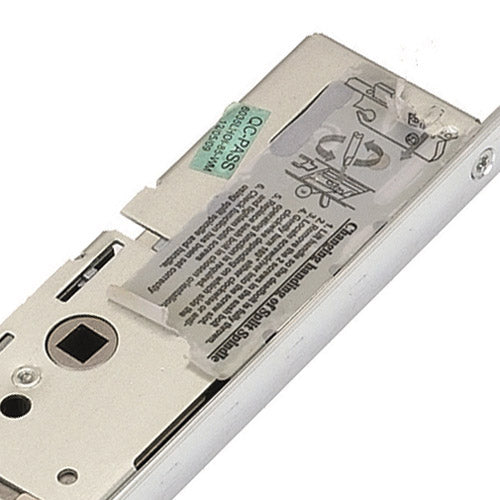

Passive Lock Lift Lever Multipoint Door Lock

Product Overview: ERA Passive Multipoint Door Lock

The ERA Passive multipoint door lock is designed specifically for the secondary door of a pair of French doors, ensuring enhanced security and functionality. This lock operates seamlessly alongside a primary multipoint door lock, providing a comprehensive locking solution.

Key Features:

• No Locking Points: Tailored for passive doors, this lock does not have its own locking points.
• Shootbolt Mechanism: Engages to secure the secondary door leaf to the frame when locked, ensuring stability and security.
• Operation: Utilizes a lift lever mechanism for easy locking and unlocking.

How to Operate:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Additional Products:

We offer a variety of associated products for the ERA Passive multipoint door locks, including:

• Keeps
• Spindles
• Handles
• Accessories

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Spindle: Single 8mm
• Handing: Non handed
• Height: 2120mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure a perfect fit for your ERA Passive multipoint door lock, follow these simple measuring guidelines:

Backset Measurement:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring that the lock aligns properly with the door frame.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. To measure this, use a ruler or tape measure to find the distance between these two points on the door.

Faceplate Measurement:
To measure the faceplate, you will need to measure the width and height of the area where the lock will be installed. This ensures that the faceplate fits snugly against the door surface without any gaps.

By following these guidelines, you can ensure that your ERA Passive multipoint door lock is installed correctly and functions optimally.
