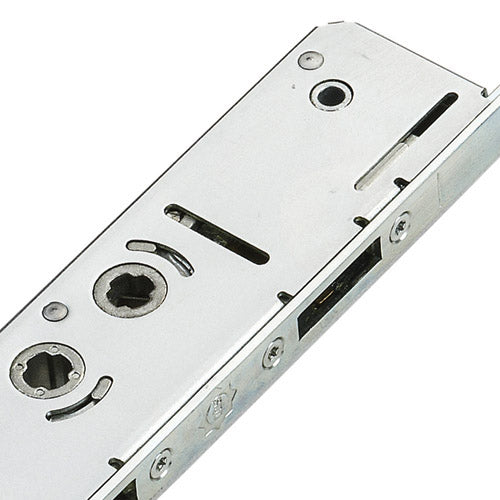

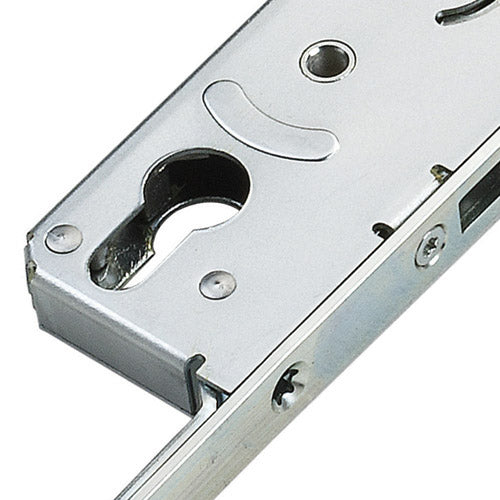

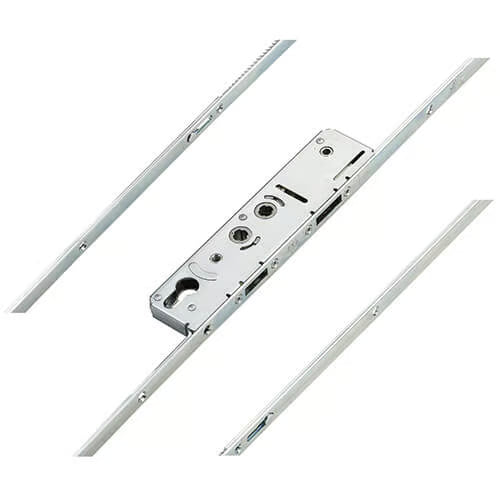

Passive Lock Double Spindle Multipoint Door Lock - Shootbolt Compatible

The Avantis multipoint door lock is a reliable choice for enhancing the security of your French doors, particularly for the passive door in a pair. With its unique design and robust features, it stands out in the UK residential door market.

This lock is compatible with shootbolts and boasts a 16mm faceplate, making it versatile for various door types. The innovative configuration places the deadbolt above the latch, which simplifies identification and installation. The deadbolt's 25mm throw and direct drive mechanism ensure superior security compared to other locks, which typically offer a 20mm throw.

Avantis has quickly gained recognition since its establishment in 2006, thanks to the expertise of its founder, a former CEO of Millenco. This background ensures that even though the brand is relatively new, it brings a wealth of knowledge to the market, leading to an increasing demand for repairs and replacements.

The gearboxes of Avantis locks are particularly noteworthy, featuring a distinctive grooved deadbolt that measures 30mm high and extends 25mm when thrown. The precise measurements and unique design allow for compatibility with both double spindle nightlatch functionality and standard lift lever operations.

Installation is straightforward, with gearboxes fixed to the faceplate using four screws, ensuring a secure fit. The operation of the lock is user-friendly, allowing for easy locking and unlocking with a simple lift of the handle and a turn of the key.

Tested to rigorous standards, including PAS24 and BS6375, this lock offers excellent corrosion resistance and durability, having been tested for 50,000 cycles.

For those looking to enhance their security further, a range of associated products is available, including keeps, spindles, handles, and accessories, ensuring that you have everything you need for a complete installation.

Whether you're considering an UPVC, aluminium, timber, or composite door, the Avantis multipoint door lock is a dependable option that combines functionality with advanced security features.

Product Specification

Manufacturer: Avantis

Backset: Select from drop-down

Centres PZ: 92mm/62mm

Faceplate: Select from drop-down

Spindle Size: 8mm

Main Gearbox: Passive lock

Operation: Select from drop-down

Spindle: Double 8mm

Handing: Non handed

Height: 2000mm

Door Material: UPVC, Aluminium, Timber, Composite

For accurate measurements, follow these guidelines:

1. Backset Measurement:
   Measure from the edge of the door to the center of the keyhole. This distance is your backset.
2. Centres PZ Measurement:
   Measure from the center of the keyhole to the center of the handle hole. This will give you the PZ measurement.
3. Faceplate Measurement:
   Measure the width and height of the existing faceplate or the area where the faceplate will be installed to determine the correct size.

These measurements are crucial for ensuring a proper fit and optimal security for your doors.
