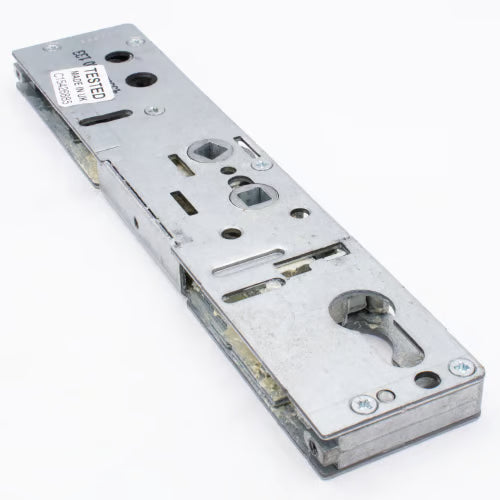

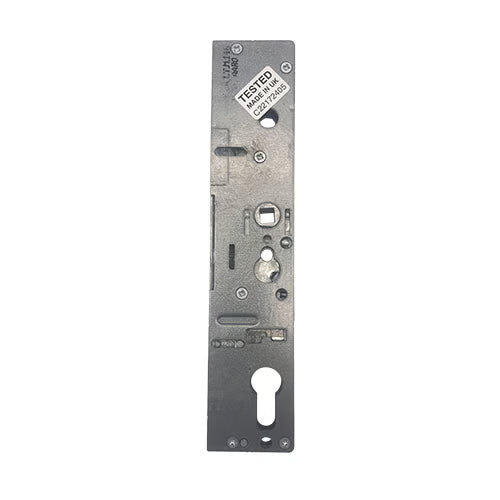

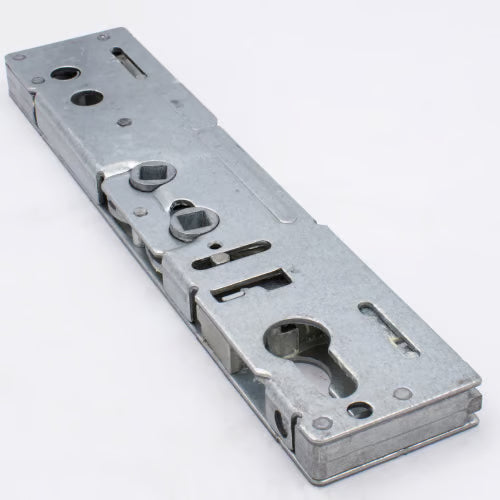

Introducing the Lockmaster genuine passive multipoint gearboxes, designed for seamless integration with existing Lockmaster locks. These gearboxes are available in both single 8mm and double 8mm spindle options, ensuring versatility for your locking needs.
Operation: Passive lock
The single spindle versions come equipped with a spring mechanism for enhanced functionality.
Product Specification
Manufacturer: Lockmaster

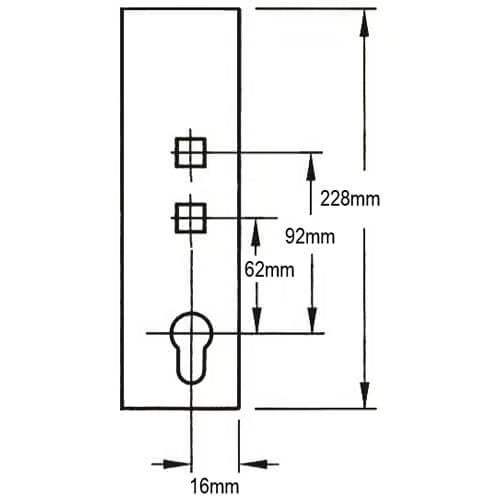

Backset: 35mm How to measure the backset? Measure from the edge of the door to the center of the keyhole.
Centres PZ: 92mm/62mm or 92mm How to measure the centres? Measure the distance between the center of the keyhole and the center of the handle hole.
Case Height: 228mm
Case Width: 51mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Passive lock

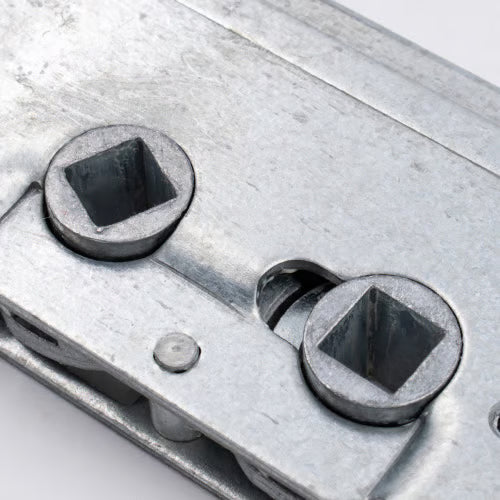

Spindle: Single 8mm or Double 8mm
Operation: Lift Lever or Double Spindle Nightlatch What is the operation? This refers to how the lock is engaged or disengaged, either by lifting the lever or using a double spindle nightlatch mechanism.
Packaging: Supplied in singles
These gearboxes are engineered for reliability and ease of use, making them an excellent choice for enhancing your door security.
