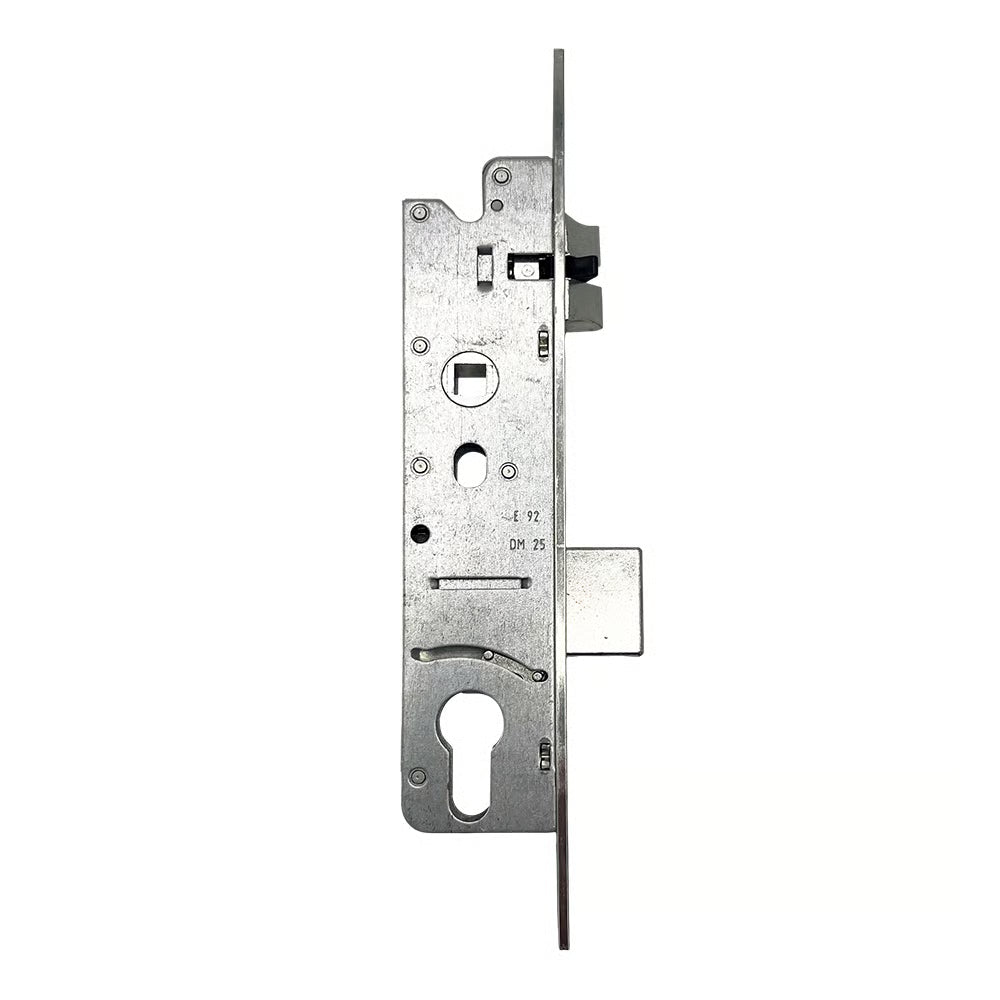

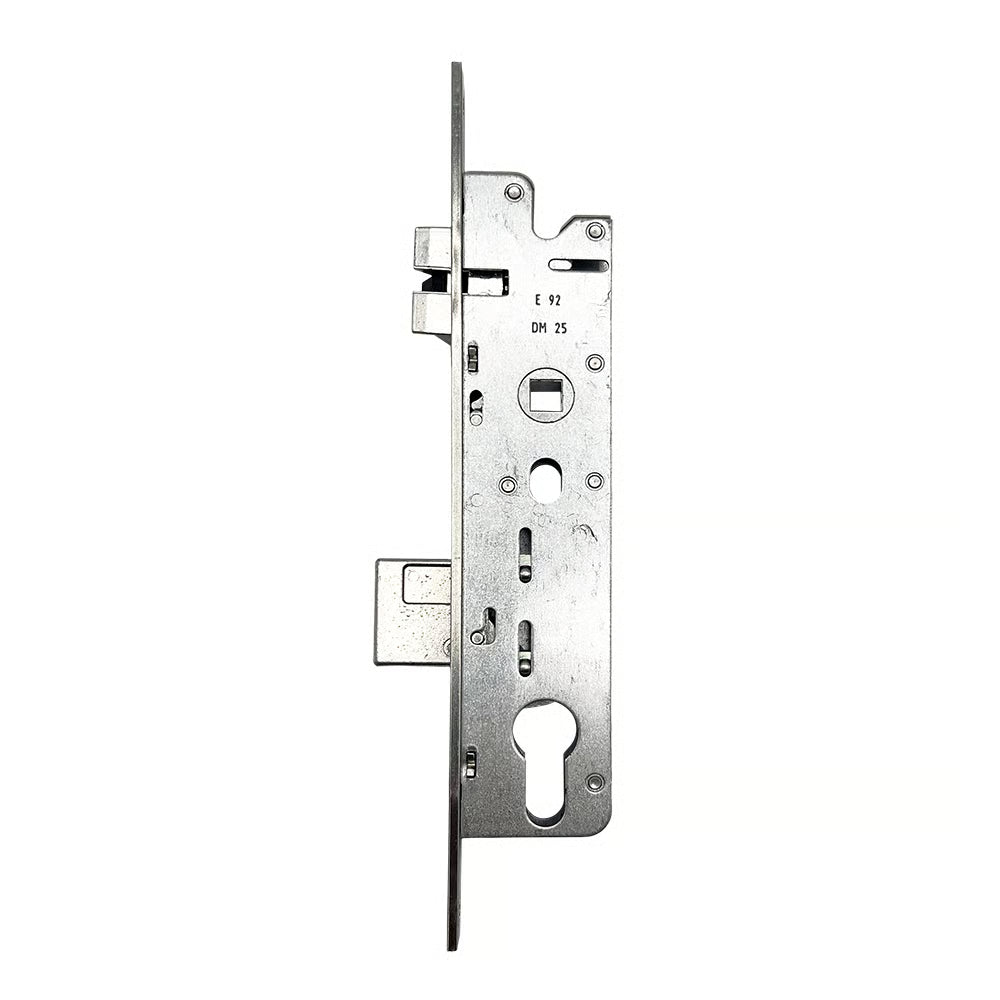

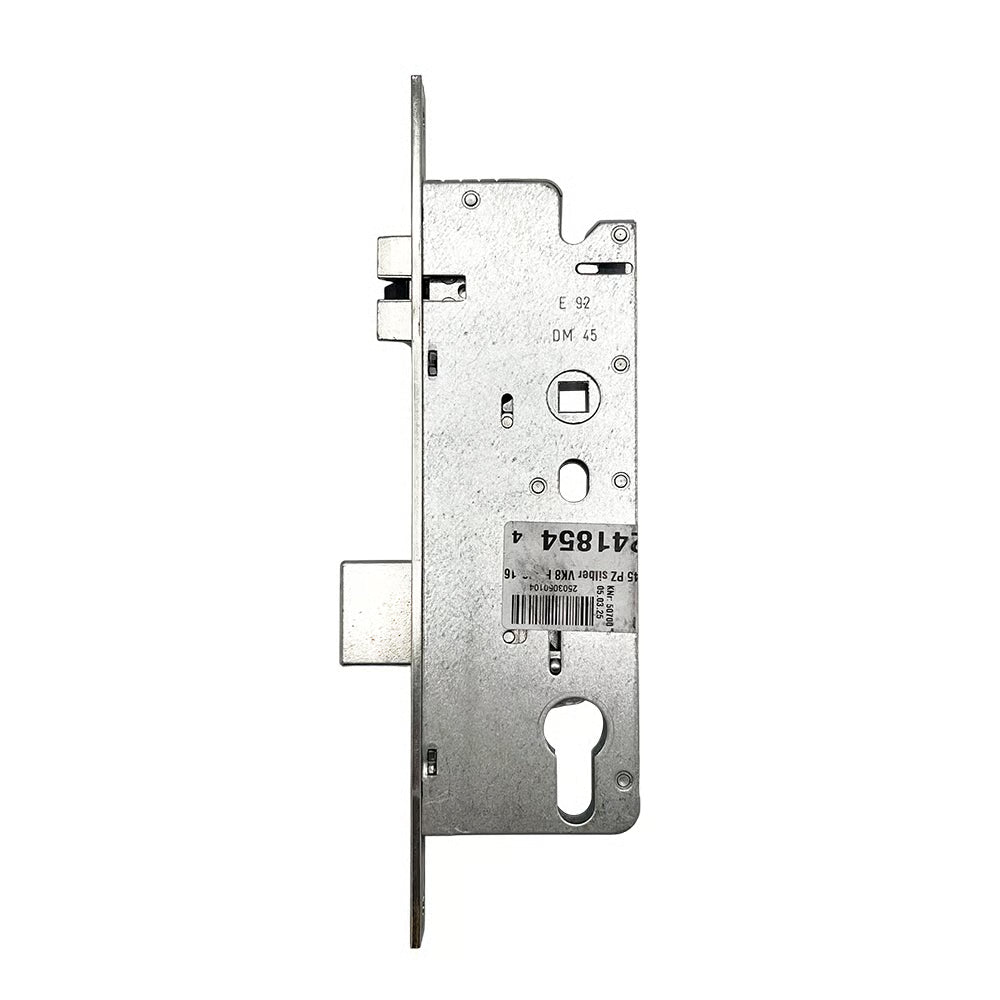

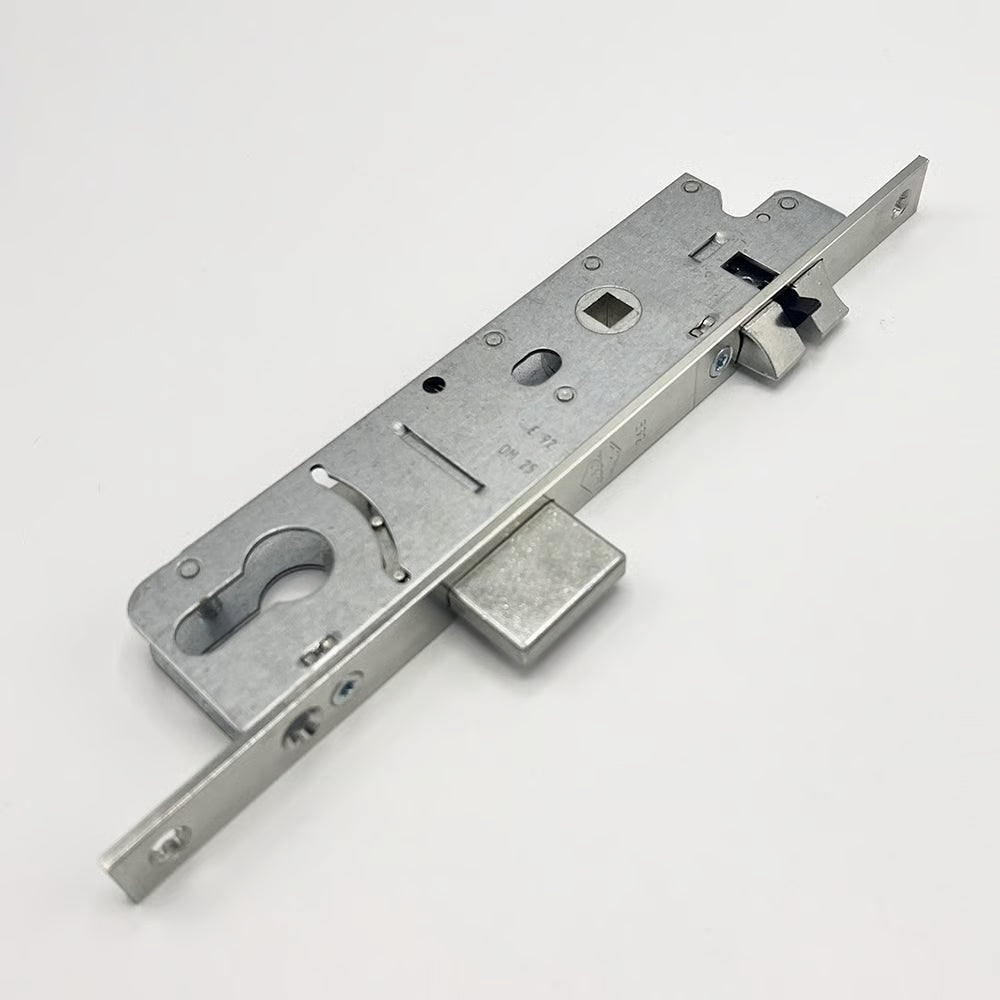

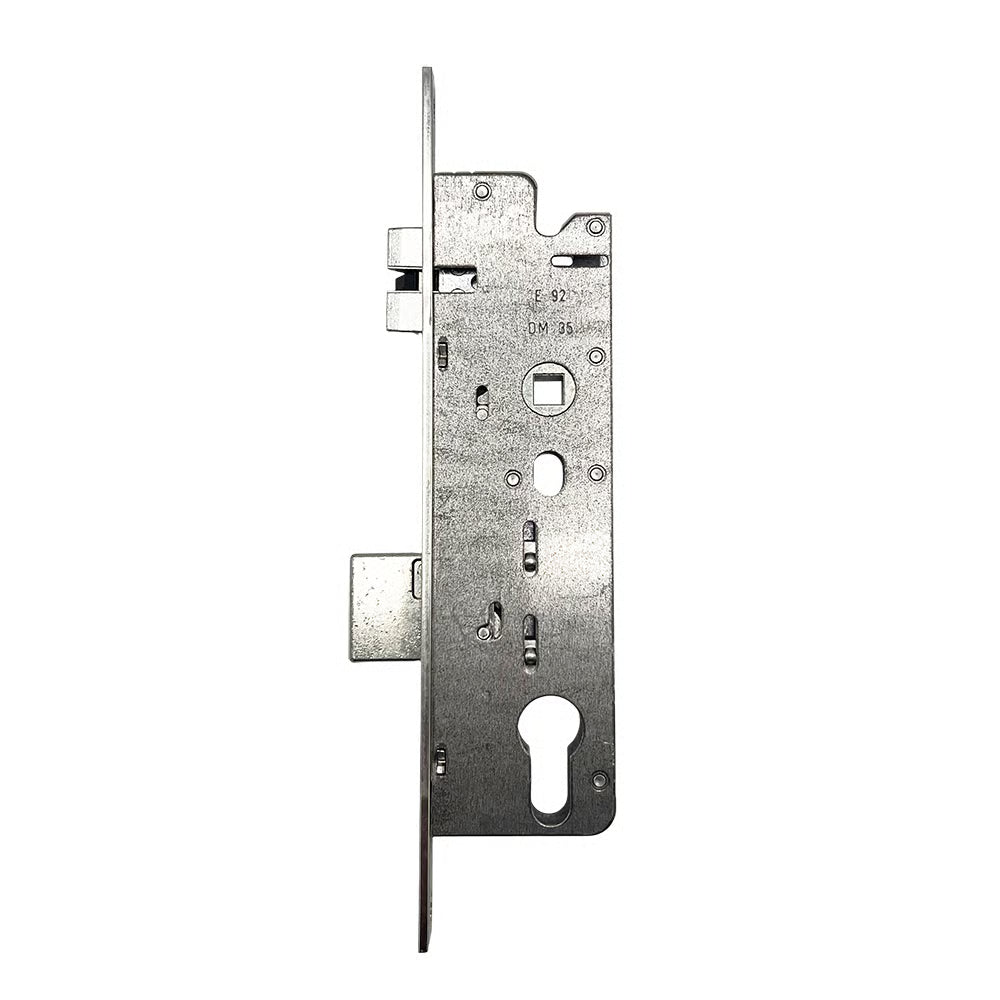

The Maco overnight lock is designed to provide secure protection for your property during the night while you await the arrival of a replacement multipoint lock.

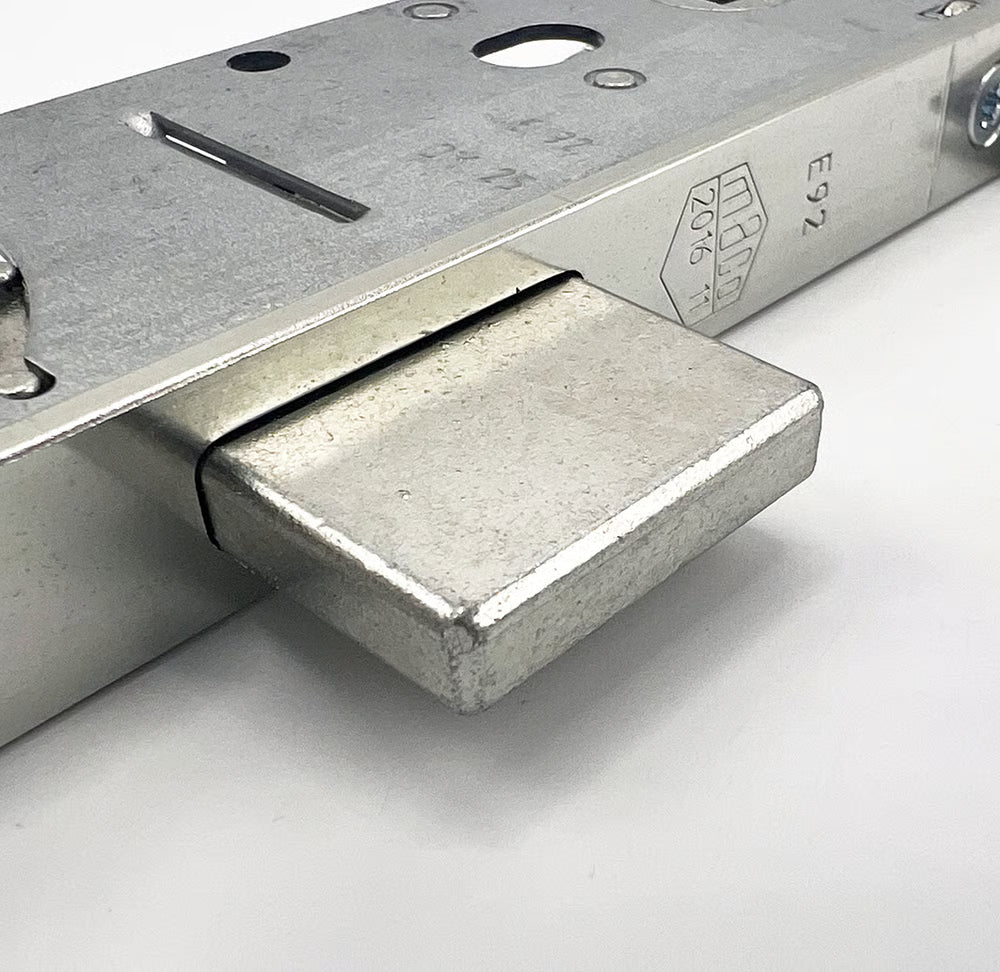

Operation: To operate the lock, simply push the lever down. This action will retract both the latch and the deadbolt using either a key or handle. Please note that the handle does not lift up.

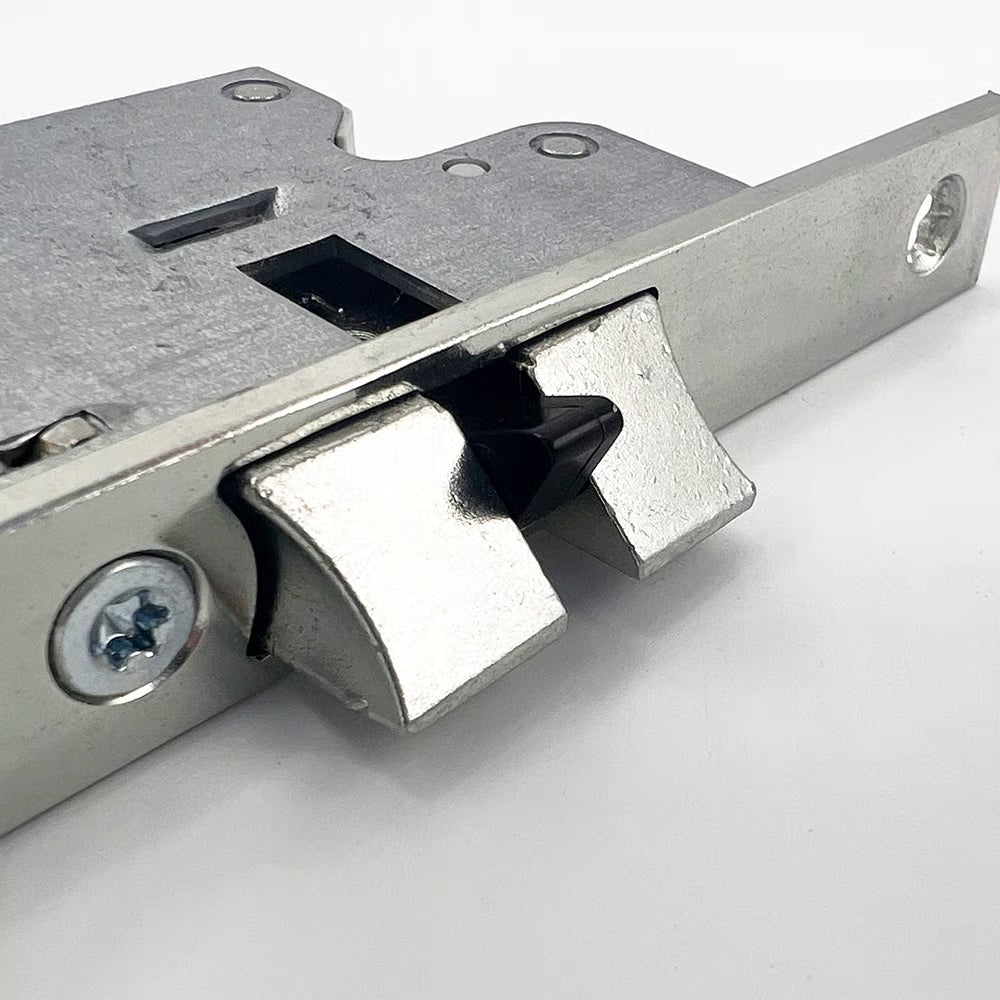

Latch Reversal: To reverse the latch, first, undo the screw located at the rear of the lock case behind the latch. Then, pull the latch from the front of the lock case while pushing the black latch section clear. Once removed, reverse the latch, reinsert it, and replace the screw.
Product Specification
Faceplate: 240mm x 16mm with square ends
Case Height: 181mm
Case Width: Backset + 16mm
Centres: 92mm
Backset Options: 25mm, 35mm, or 45mm (select from options)

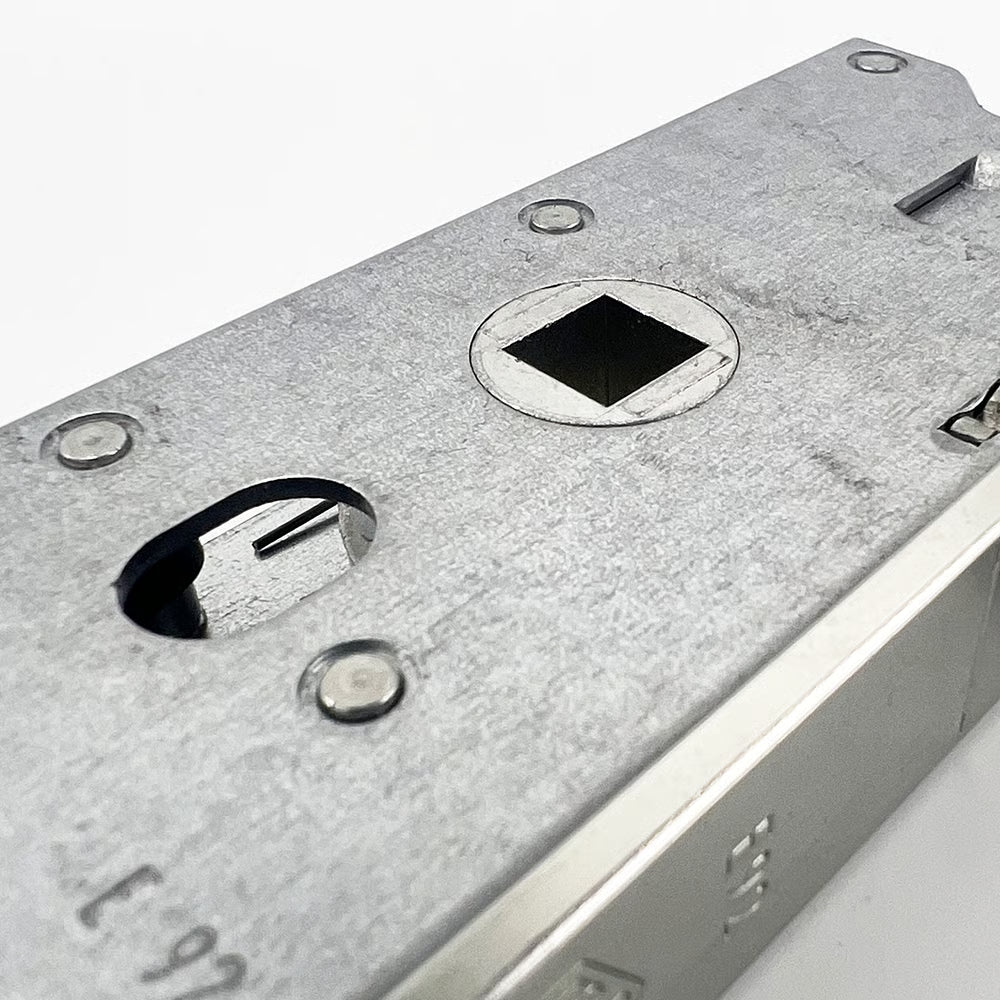

Spindle: Single 8mm
Packaging: Supplied in singles
This lock is an essential temporary solution to ensure your property remains secure until a permanent lock can be installed.
