Old Style Copy Multipoint Gearbox - Lift Lever

Product Information

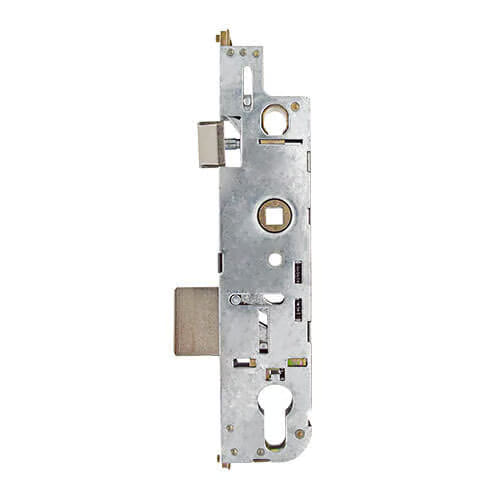

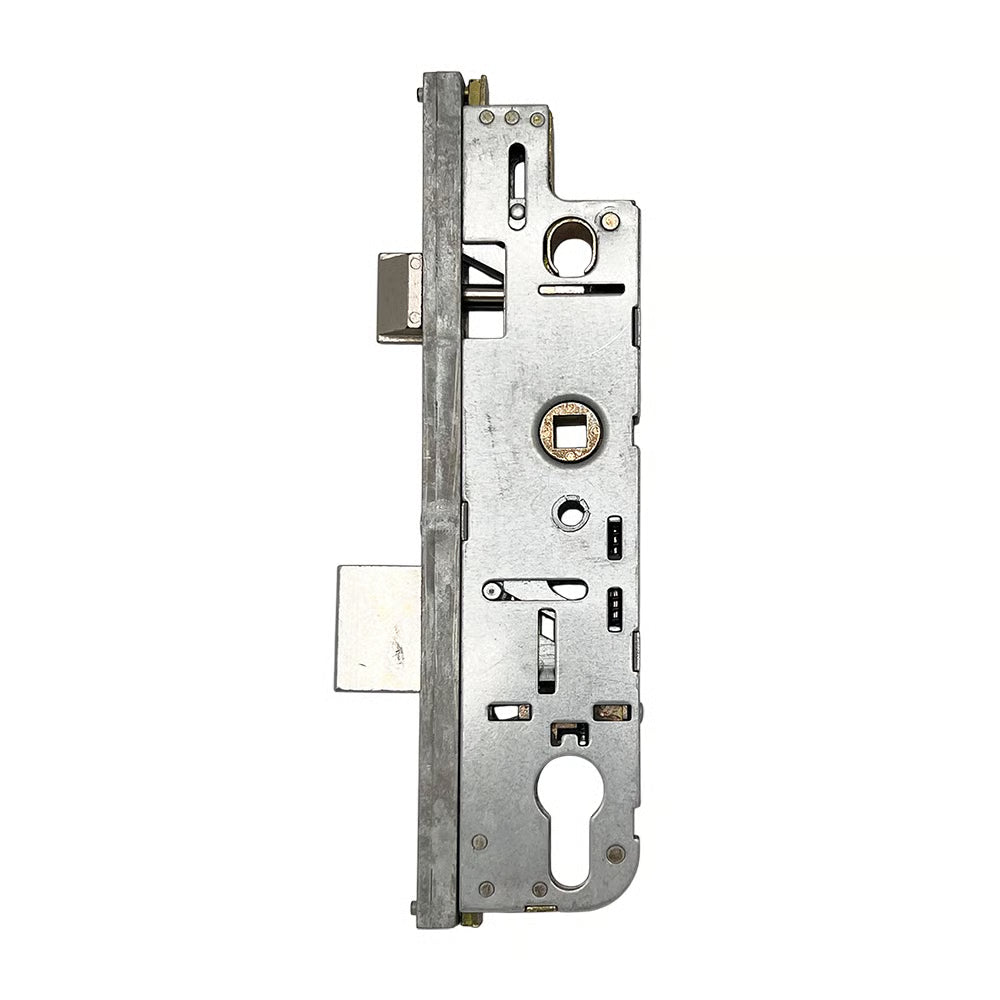

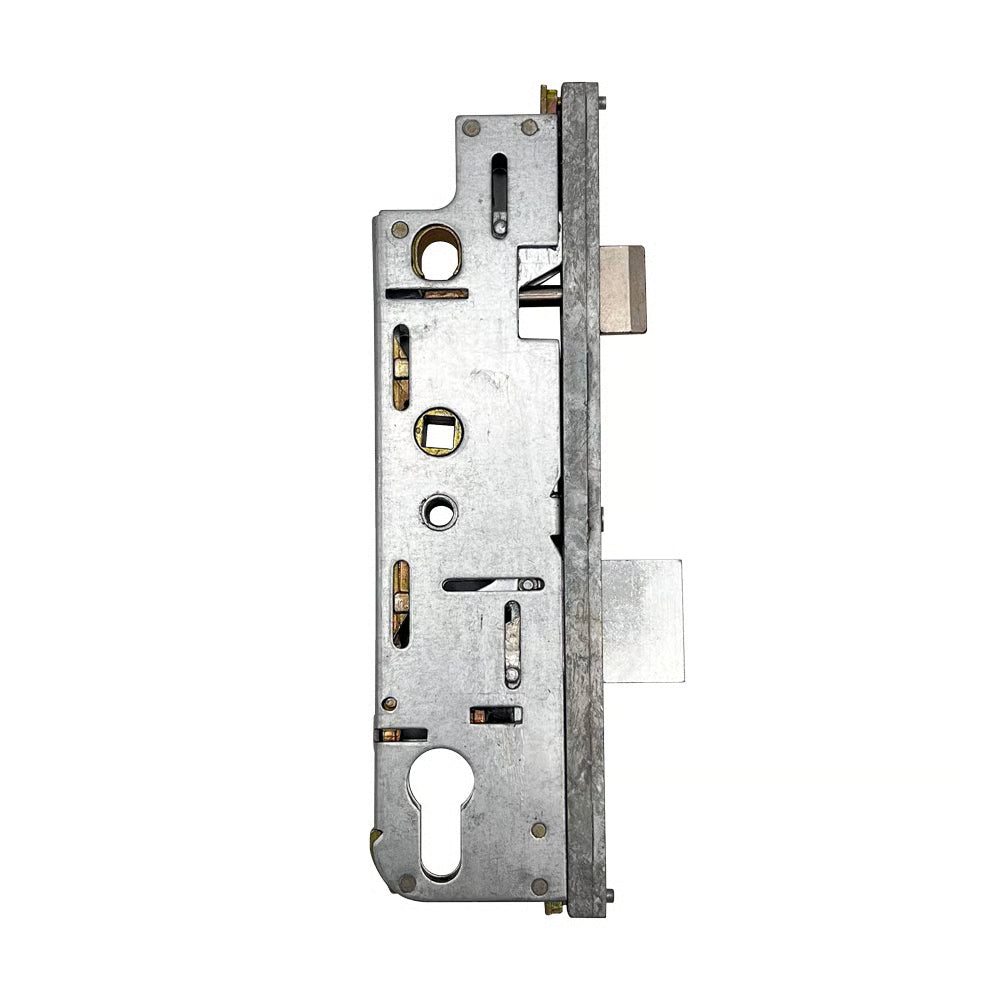

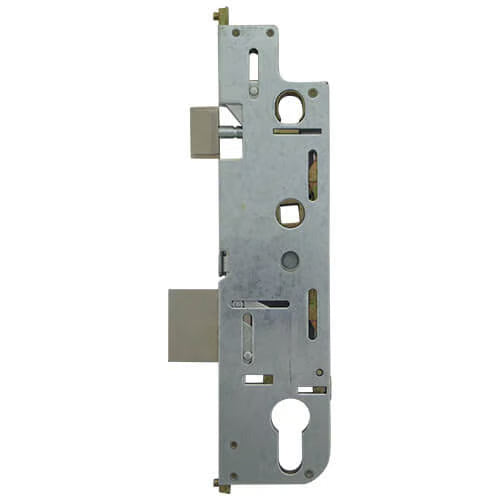

Introducing our high-quality copy gearboxes designed specifically for the original GU Europa locks. These gearboxes are available in various backsets: 30mm (28mm when used with a cranked faceplate), 35mm, 40mm, and 45mm.

GU multipoint lock gearboxes come equipped with both a latch and a deadbolt, measuring 208mm in height (excluding the fixing lugs) and the width is determined by the backset plus an additional 19mm.

• Latch Height: 32mm
• Deadbolt Height: 35mm
• Gap Between Latch and Deadbolt: 54mm

Installation is straightforward, as GU gearboxes are secured to their faceplates with three screws. The screw placement is as follows:

• Top to Middle Screw Distance: 108mm
• Middle to Bottom Screw Distance: 92mm

The follower measures 8mm, with the thickness varying between the 30mm (thicker) and the 35/45mm (thinner) models.

Important Note: Always allow an additional 2mm when measuring your backset with the gearbox removed from the faceplate.

These gearboxes are exclusively available in a lift lever function. Please note that the split spindle and fast locking functions are now obsolete; if you require either of these functions, a new style full-length lock will be necessary.

We also offer a comprehensive range of associated products for GU Europa gearboxes, including keeps, spindles, handles, and various accessories.

Operation: Lift lever

Latch Reversal: Twist latch into the desired position

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if present) by turning the key.

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: GU
• Backset Options: 30mm, 35mm, 40mm, or 45mm
• Centres PZ: 92mm
• Case Height: 208mm
• Case Width: Backset + 19mm
• Copy/Genuine: Copy
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever
• Packaging: Supplied in singles
