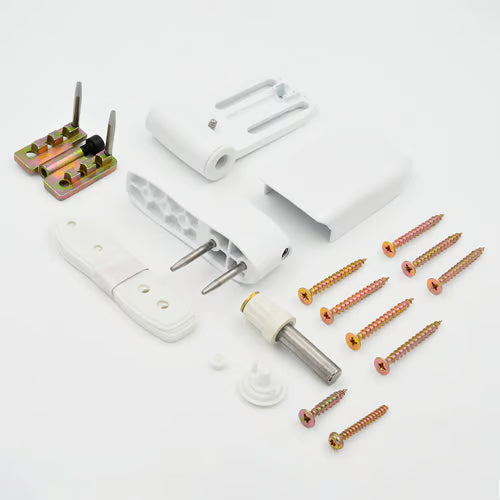

Nexus Flag Hinge for UPVC Doors

Product Overview

Introducing the ERA Nexus Flag Hinge, expertly crafted for UPVC doors, ensuring both security and performance. This hinge is specifically designed to accommodate UPVC doors with a rebate height ranging from 20.5mm to 26.5mm. Its long 100mm flag allows for maximum fixings into door reinforcement, enhancing durability and stability.

Key Features

• Adjustability: The ERA Nexus Flag Hinge offers exceptional adjustability in three directions, simplifying the installation process.

  • Horizontal adjustment: +/- 5mm
  • Height adjustment: +4mm/-1mm
  • Compression adjustment: +/- 0.75mm

• Robust Design: With a sturdy appearance, this hinge has been rigorously tested to meet the highest technical standards, ensuring it meets the most demanding performance criteria.

• Corrosion Resistance: It complies with BS EN 1670:2007 Grade 4, demonstrating outstanding corrosion resistance (240 hours), which guarantees a long-lasting finish for your hardware.

• Endurance Tested: The hinge has undergone extensive endurance testing, exceeding 50,000 cycles, to ensure smooth and consistent performance over time.

Product Specifications

• Height: 90mm
• Width: 100mm
• Projection to Centre of Pin: 22mm or 29mm
• Profile Accommodation: 15mm to 23.5mm step
• 3D Adjustability:
  • Lateral: +5mm / -5mm
  • Height: +4mm / -1mm
  • Compression: +0.75mm / -0.75mm
• Compliance: Designed to meet PAS 024:2012 requirements as part of a compliant door system.
• Design: Classic lift on/lift off or lift out flag design with a traditional assembly.
• Secure Fixing: Long reach sash plate with integral fixing lugs.
• Easy Adjustment: Removable cover cap for straightforward adjustments.
• Versatility: Suitable for both open in and open out UPVC doors.
• Weight Capacity: Supports a weight loading capacity of 100kg for three hinges.

Conclusion

The ERA Nexus Flag Hinge is the ideal choice for those seeking a reliable, adjustable, and robust solution for UPVC doors. With its superior design and performance features, it ensures security and ease of installation, making it a top choice for both professionals and DIY enthusiasts.
