New Style Genuine Multipoint Gearbox - Lift Lever

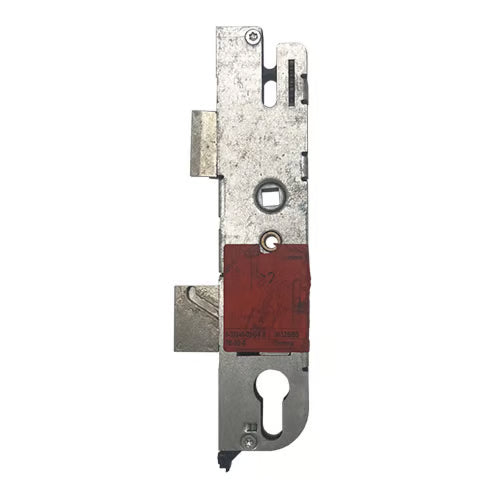

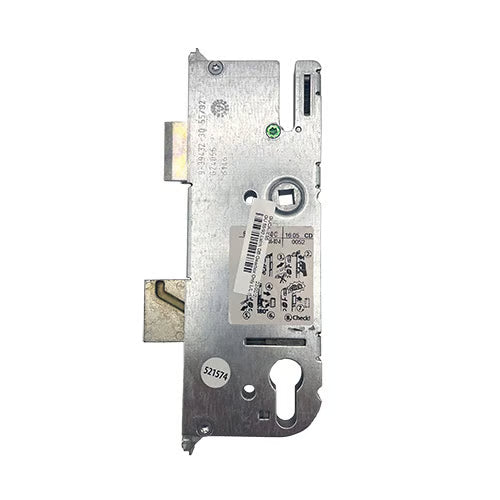

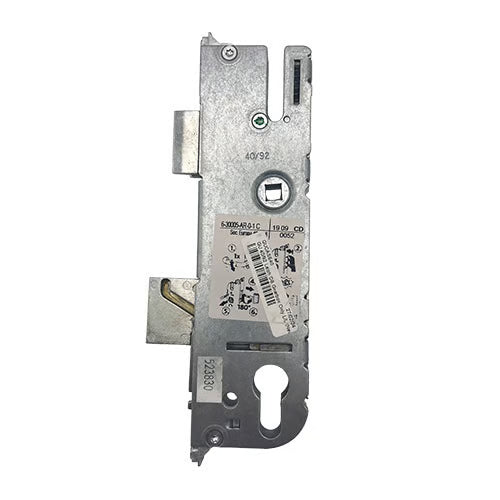

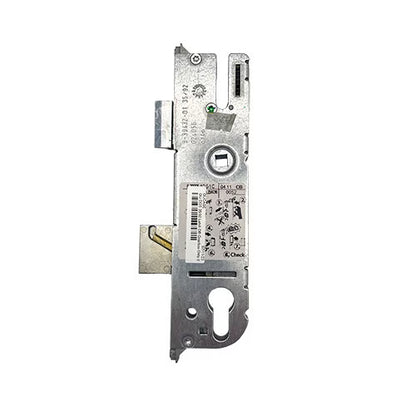

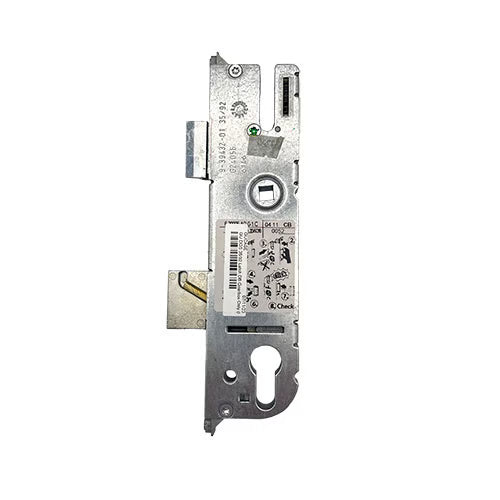

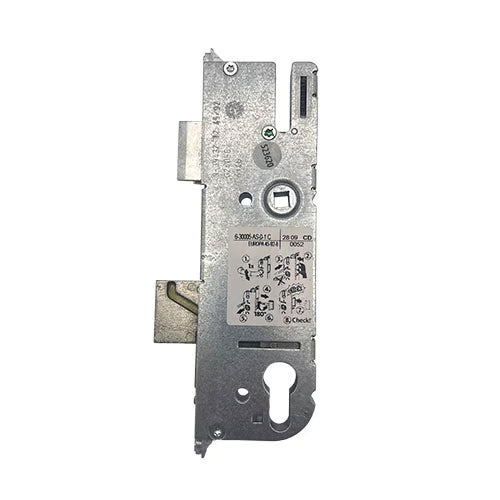

Introducing the GU New Style Genuine Multipoint Gearbox - Lift Lever, designed exclusively for new style GU multipoint locks. This gearbox features a unique design that includes a vertical groove at the top corner, ensuring compatibility only with the latest models.

Key Features

• Compatibility: Exclusively for new style GU multipoint locks; not suitable for old style versions.
• Operation: Lift lever function with an integrated latch and deadbolt for enhanced security.
• Backset Options: Available in 28mm, 35mm, 40mm, 45mm, and 55mm (select from drop-down).
• PZ Centres: Standard measurement of 92mm.
• Spindle Size: Single 8mm spindle for easy installation.

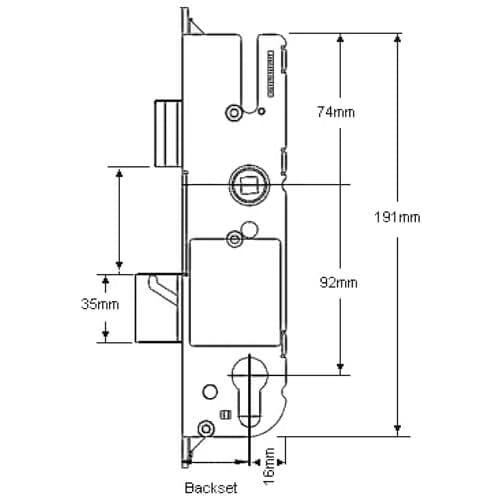

• Dimensions: Gearbox height of 191mm (excluding fixing lugs) and width equal to backset + 16mm.
• Latch and Deadbolt Heights: Latch at 32mm and deadbolt at 35mm, with a 54mm distance between them.
• Secure Fixing: Faceplate secured with three screws, spaced 108mm and 92mm apart.
• Latch Reversal: Easily reversible by twisting the latch into the desired position.

Fitment & Verification

To ensure proper fitment, please check the following:

• Confirm the gearbox is for new style GU multipoint locks by looking for the vertical groove.
• Measure the door’s backset accurately, allowing an extra 2mm if the faceplate is attached.
• Verify the required backset size from the available options before placing your order.
• Ensure that the PZ centres match your existing lock (92mm).
• Confirm the spindle size is an 8mm single spindle.

Common Ordering Mistakes

Avoid these common pitfalls when ordering:

• Ordering a new style gearbox for an old style GU lock or vice versa.
• Selecting the incorrect backset size without accounting for the 2mm measurement allowance.
• Confusing latch reversal with lock handing; remember that the latch can be reversed, but the door handing must be confirmed separately.
• Overlooking the PZ centres measurement, which can lead to incompatibility with handles and cylinders.

Operation Instructions

To Lock the Door:

• Lift the handle upwards to engage the locking points.
• Turn the key to lock the locking points and the main deadbolt (if present).

To Unlock the Door:

• Turn the key to disengage the lock.
• Push the handle downwards to retract the latch and disengage the locking points.

Product Specifications

• Manufacturer: GU
• Backset: Select from drop-down
• PZ Centres: 92mm
• Operation: Lift Lever
• Spindle: Single 8mm
• Height: 191mm
• Main Gearbox: Latch & deadbolt
• Case Width: Backset + 16mm
• Handing: Not Handed
• Packaging: Supplied in singles
• Copy/Genuine: Genuine
• Cylinder Type: Euro

For any further questions or assistance, feel free to reach out!
