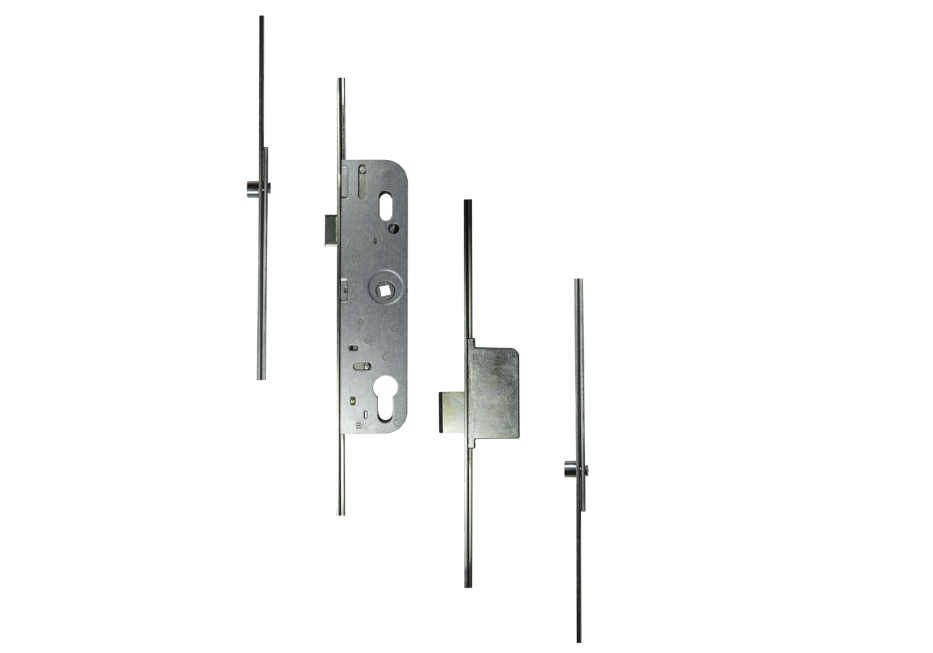

Munster Joinery Lever Operated Latch Only - 1 Lower Deadbolt & 2 Roller

The FERCO Munster Joinery Lever Operated Latch Only is a reliable and widely recognised locking solution, particularly suited for doors manufactured from the 1980s onwards. With its unique specifications, this lock remains a preferred choice for replacements in both Ireland and the UK.

Key Specifications

• Backset: 35mm
• Centres: 70mm
• Case Height: 198mm
• Case Width: 51mm
• Spindle Type: Single spindle
• Locking Mechanism: Latch only centre case

Identification Features

This lock is easily identifiable by its distinctive large deadbolt locking point located low on the door. The combination of 70mm centres, a 7mm spindle, and a latch-only centre case is uncommon, making it a key identifier for this unit.

Gearbox Details

The latch-only gearbox is designed with a single spindle, maintaining the same case height and width as the overall unit, ensuring compatibility and ease of installation.

Additional Locking Points

The full-length strip includes:

• 1 Deadbolt
• 2 Roller Locking Points

Faceplate Specifications

• Width: 16mm
• Overall Length: 1982mm
• Application: Suitable for UPVC doors

Locking Point Distances

• Distance A: 720mm
• Distance B: 317mm
• Distance D: 679mm

Croppable Design

This unit is croppable, allowing for height adjustments to fit various door sizes, enhancing its versatility.

Handing Adjustment

To reverse the latch, simply push in the latch hold cam on the side of the lockcase, remove the latch, reverse it, and reinsert it. A click will confirm proper engagement.

Sprung Mechanism

The gearbox features an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles or spring cassettes.

Operation Instructions

• Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock.
• Unlocking Method: Turn the key one full turn and push down on the lever to unlock.

Notable Features

• Designed specifically for Munster Joinery doors
• 16mm faceplate for compatibility with UPVC applications
• Single spindle and latch-only configuration for streamlined operation
• Euro profile lock case for enhanced security

This lock is not only a practical choice but also a testament to the enduring quality of Munster Joinery products.
