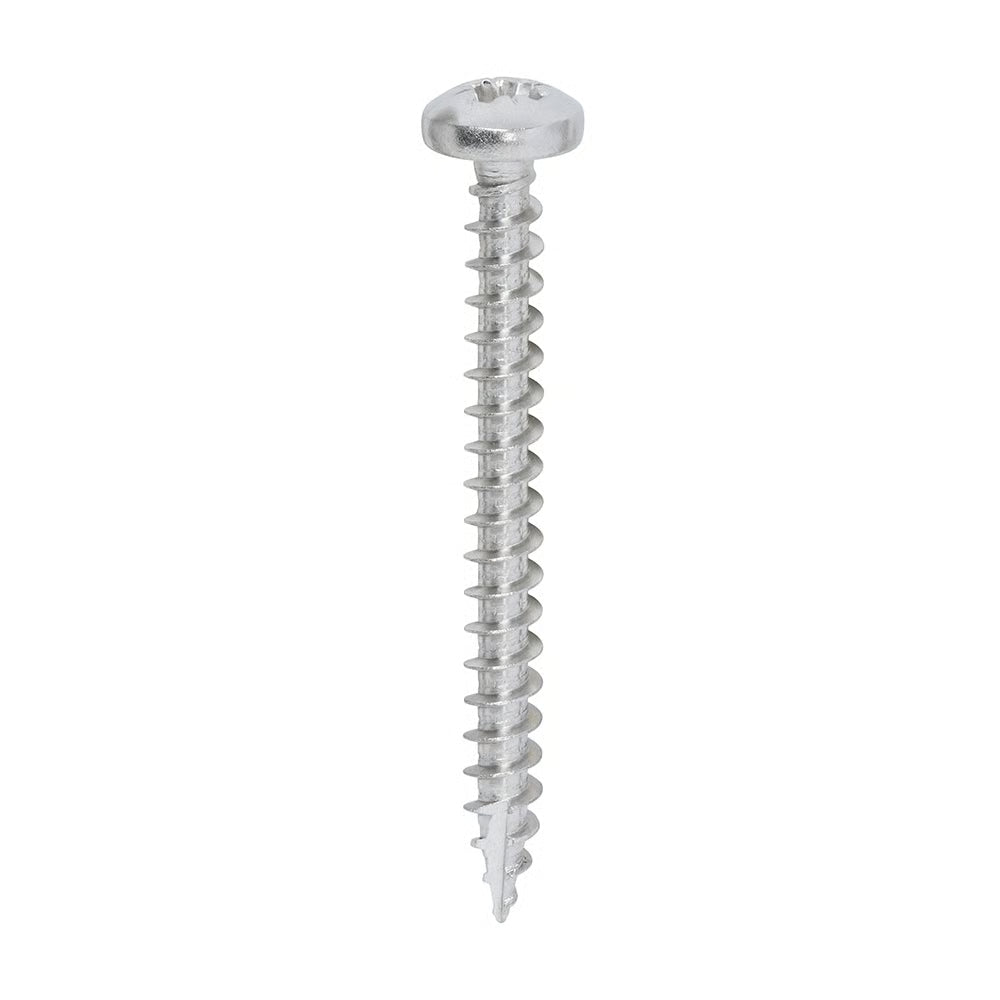

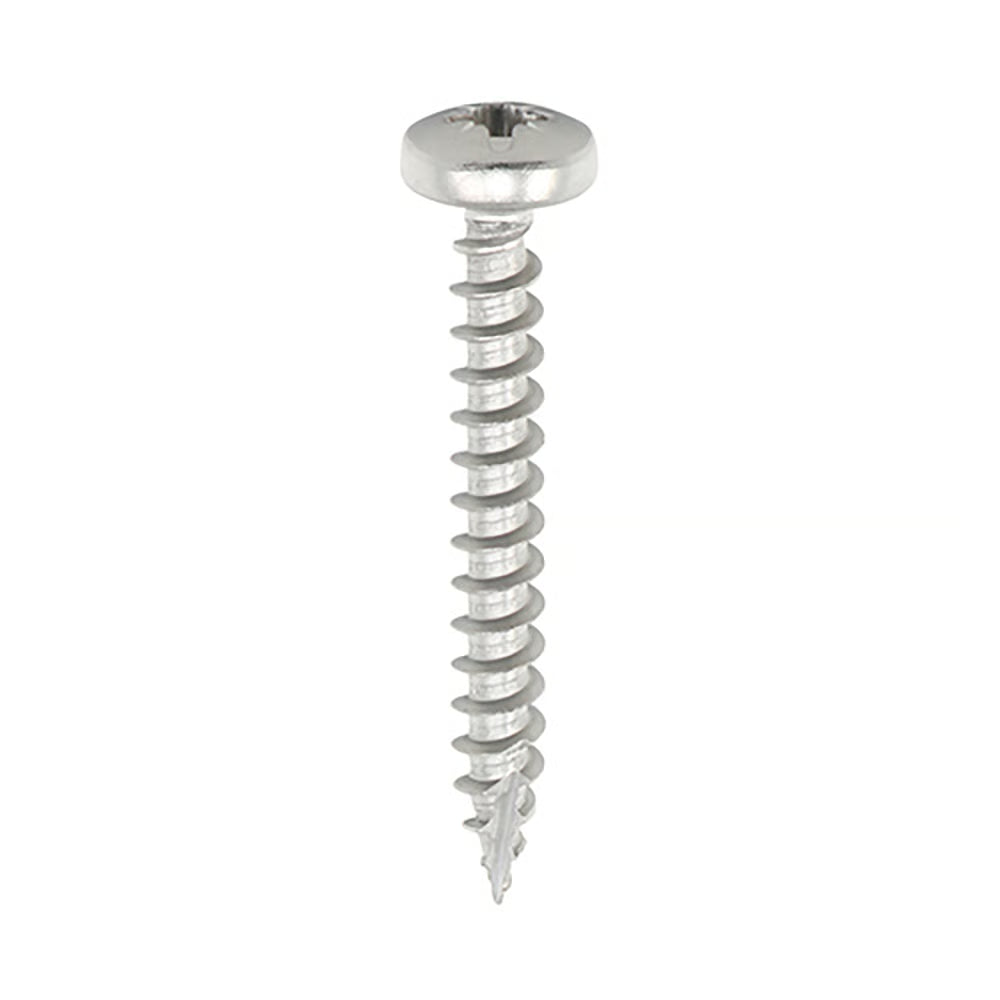

Multipurpose Pan Head Screw

Product Overview: Classic Multi-Purpose Screw

The Classic Multi-Purpose Screw is expertly crafted from A2 Stainless Steel, making it the perfect choice for applications requiring exceptional corrosion resistance. This screw is ideal for use with softwoods, hardwoods (when pre-drilled), chipboard, MDF, and plastic. It is particularly suited for environments where corrosion is a concern, such as when fixing to Green Oak or other inherently corrosive materials.

Key Features:

• Pan Head Design: Enhances clamping efficiency for a secure fit.
• Deep Single Thread: The 40° deep single thread ensures a robust fixing with high pull-out resistance, providing confidence in your installations.
• Single Slash Point: Designed to minimize torque and reduce the risk of timber splitting, especially at low edge distances.
• Threading Specifications: All sizes up to and including 75mm are fully threaded, while lengths of 80mm and above feature a 70mm thread length for added versatility.

Product Specifications:

• CE Standard: BS EN 14592:2008
• Corrosion Rating: 4 (suitable for urban and industrial areas with moderate salt exposure)
• Driver Bit Size: PZ2
• Gauge: 8
• Head Diameter: 7.9 mm
• Inner Thread Diameter (d1): 2.45 mm
• Available Lengths: 30 mm or 40 mm
• Material: Austenitic Stainless Steel (A2-304)
• Diameter: 4 mm
• Pack Dimensions: 92 x 72 x 58 mm
• Pack Quantity: 200
• Point Type: 25° Sharp with Single Slash
• Recess Type: Pozi
• Compatible Substrates: Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g., Oak, Cedar)
• Thread Coverage: Fully Threaded
• Thread Length: 30 mm or 40 mm
• Thread Diameter: 4 mm
• Thread Type: Single Coarse 40°

This screw is engineered for reliability and performance, making it an essential addition to your toolkit for various construction and woodworking projects.
