Multipoint Gearbox - Lift Lever or Split Spindle

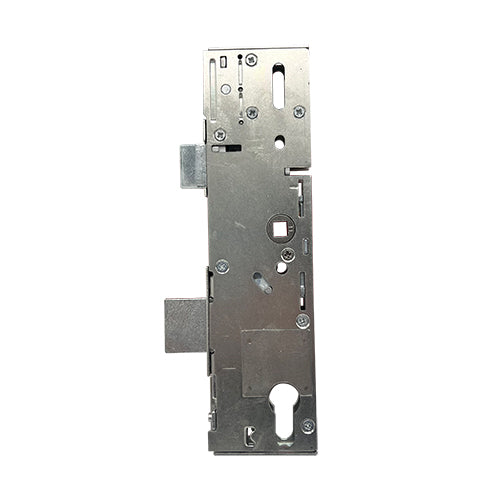

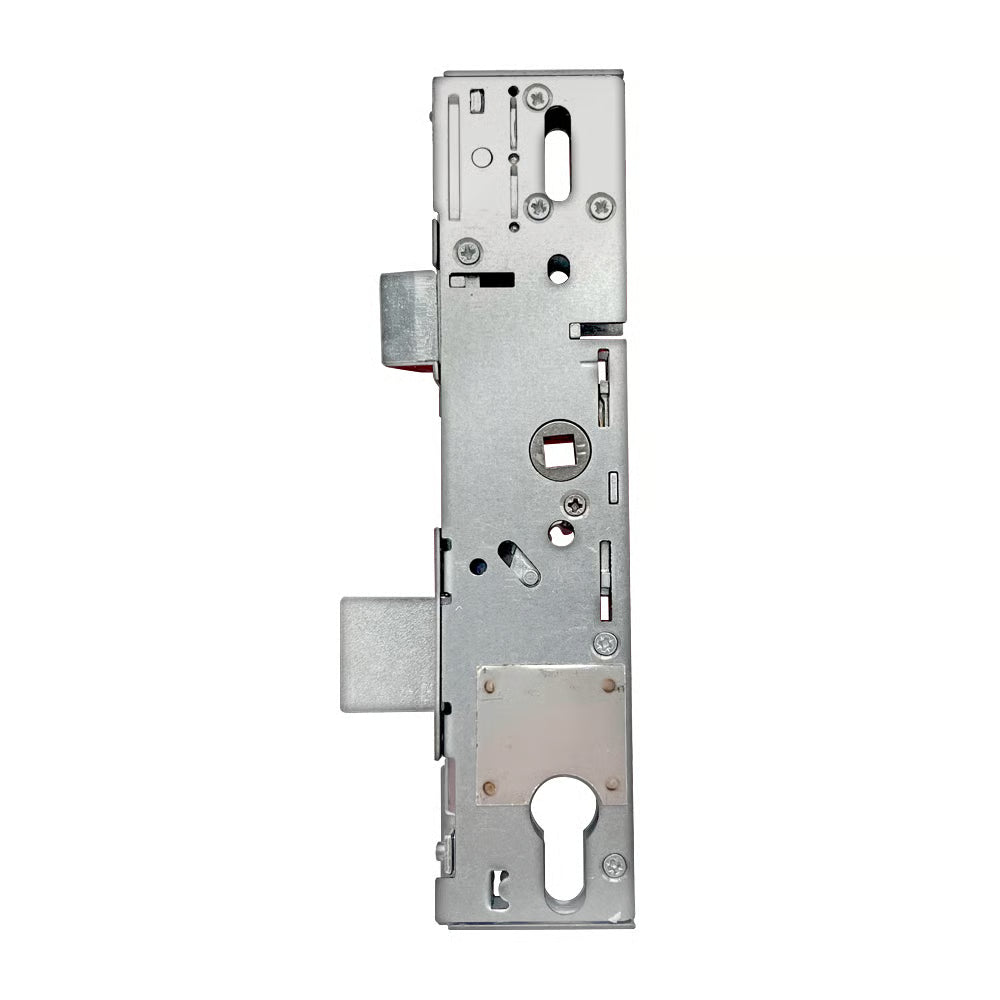

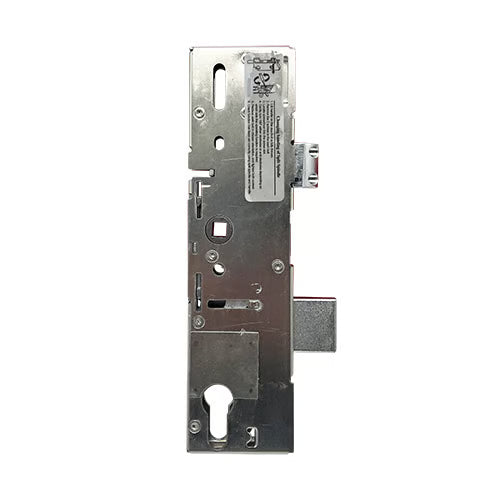

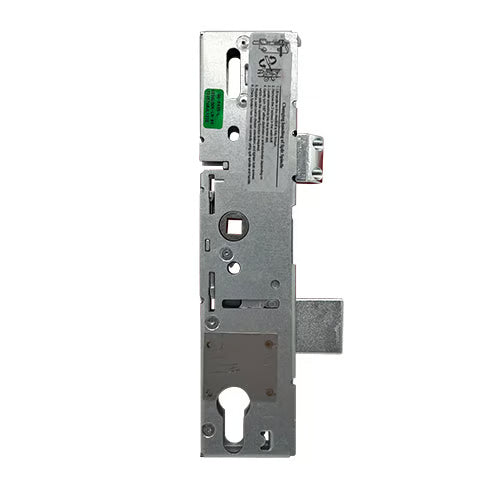

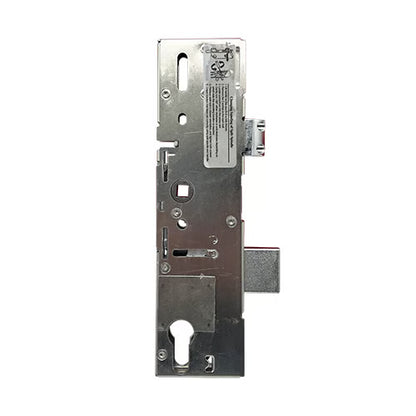

Product Overview: Spartan Multipoint Door Lock Gearboxes

Spartan multipoint door lock gearboxes are designed for durability and security, featuring a square design with elongated piercing for bolt-through fixings. The overall length of the gearbox is 220mm, making it a robust choice for various door types.

Key Features:

• Backsets Available: 35mm or 45mm
• Latch and Deadbolt Dimensions:
  • Latch Height: 24mm (with 2 distinctive screws)
  • Deadbolt Height: 30mm
  • Distance Between Latch and Deadbolt: 61mm
• Screw Configuration:
  • Gearboxes are secured to the faceplate with 4 screws.
  • Screw hole measurements:
    • First to second: 37mm
    • Second to third: 85mm
    • Third to fourth: 43mm

Installation Notes: When measuring the backset, allow for an additional 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure approximately 32mm when not fixed to the strip.

Operation:

• Locking Mechanism: Lift lever or split spindle
• Latch Reversal:
  • Undo screws in the latch to remove.
  • Reverse and reinsert, then replace screws.
• Nightlatch Split Spindle Reversal:
  • Remove latch to access a small screw.
  • Use a small bladed screwdriver to turn the screw 180 degrees, then return the latch to its correct position.

Locking Procedure:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

Unlocking Procedure:

1. Unlock the system by turning the key.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

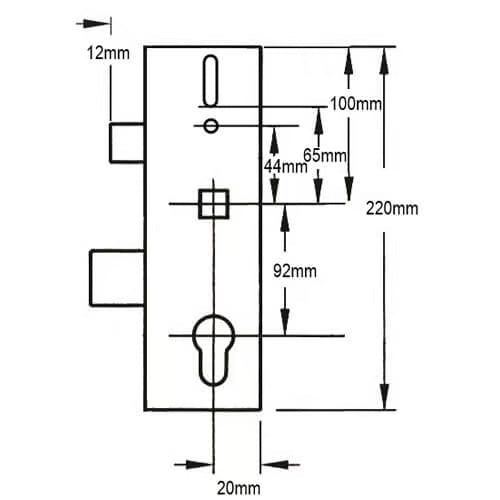

Product Specifications:

• Manufacturer: Spartan
• Backset Options: 35mm or 45mm
• Centres PZ Measurement: 92mm
• Case Height: 220mm
• Case Width: Backset + 20mm
• Deadbolt Width: 6mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Operation Type: Lift Lever or Split Spindle Nightlatch
• Packaging: Supplied in singles

This comprehensive overview ensures that you have all the necessary information to understand and utilize Spartan multipoint door lock gearboxes effectively.
