Multipoint Gearbox - Lift Lever or Split Spindle

Product Overview: SEA Gearboxes

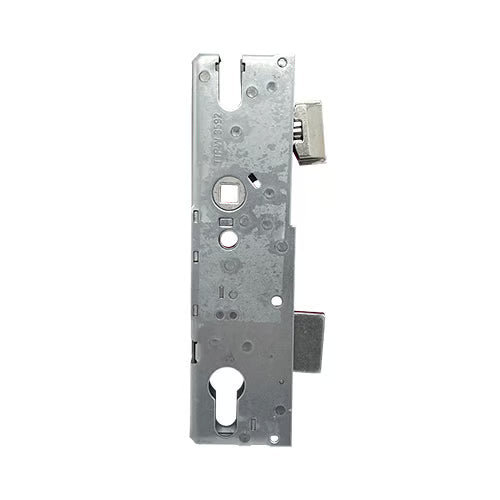

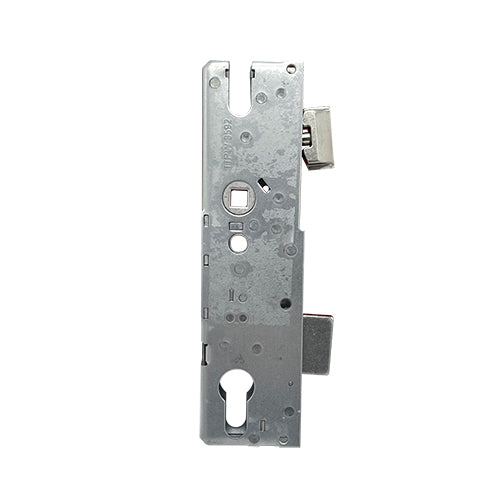

Introducing the SEA gearboxes, the smallest gearboxes on the market, measuring just 185mm high with a backset of +15mm. Designed for efficiency and ease of use, these gearboxes feature a unique configuration that includes a latch and deadbolt, ensuring robust security for your doors.

Key Features:

• Compact Design:

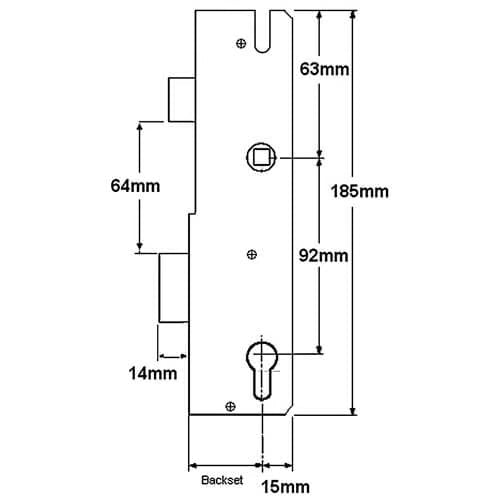

  • Height: 185mm
  • Width: Backset + 15mm
  • Distance between latch and deadbolt: 64mm
  • Distance from spindle to top: 63mm

• Innovative Fitment:

  • A groove above the spindle facilitates the installation of handles with a screw above the lever.

• Unique Attachment Method:

  • SEA gearboxes are attached to the faceplate using rivets, making them easily identifiable and replaceable. For detailed instructions on swapping gearboxes, refer to our guide and video.

• Legacy Models:

  • Be aware of older SEA gearboxes that may have screws and a passivated yellow finish. These models are no longer available and feature a sticker indicating operation type (red = key wind, blue = lift lever).

Operation Instructions:

• To Lock the Door:

  1. Close the door to automatically engage the latch.
  2. Lift the handle to engage additional locking points.
  3. Throw the deadbolt and secure the system by turning the key (some brands may throw the deadbolt by lifting the handle).

• To Unlock the Door:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key will retract the latch.

Reversal Instructions:

• Latch Reversal:

  • Push in the latch to reveal a screw at the back of the lockcase. Undo the screw, reverse the latch, reinsert, and replace the screw.

• Nightlatch Reversal:

  • Use a flat-bladed screwdriver to push the hollow black roll pin located next to the spindle hole to reverse the function.

Product Specifications:

• Manufacturer: SEA

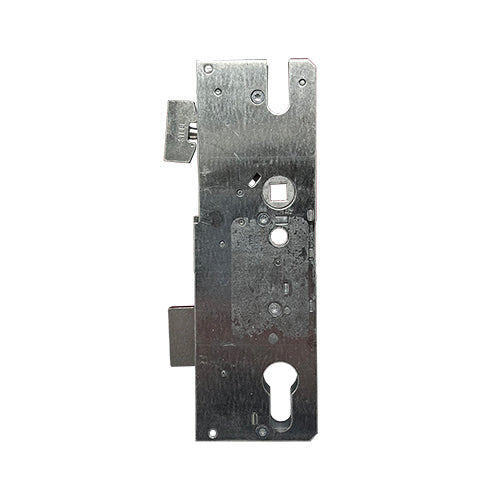

• Backset Options: 35mm or 45mm
• Centres PZ: 92mm
• Case Height: 185mm
• Case Width: Backset + 15mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Split 8mm
• Operation Types: Lift Lever or Split Spindle Nightlatch
• Packaging: Supplied in singles

For any further inquiries or assistance, please refer to our comprehensive guides or contact our support team. Secure your space with SEA gearboxes today!
