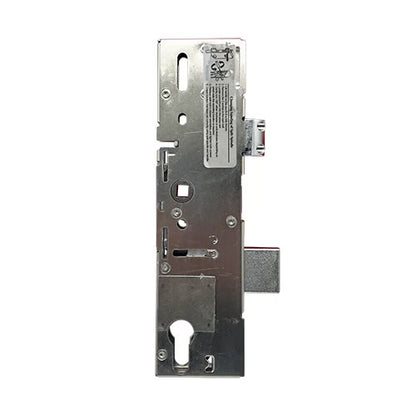

Product Overview: Fab & Fix Multipoint Door Lock Gearboxes

Fab & Fix multipoint door lock gearboxes are designed with a unique square shape and no corner cut-outs, ensuring both functionality and aesthetic appeal.

Key Features:

  • Dimensions:
  • Overall Length: 221mm
  • Width: Backset + 18mm
  • Available Backsets: 35mm or 45mm
  • Compatibility:
  • This is the Mk2 version of the Fab & Fix gearbox. Note that earlier models with a black and orange design are not compatible.

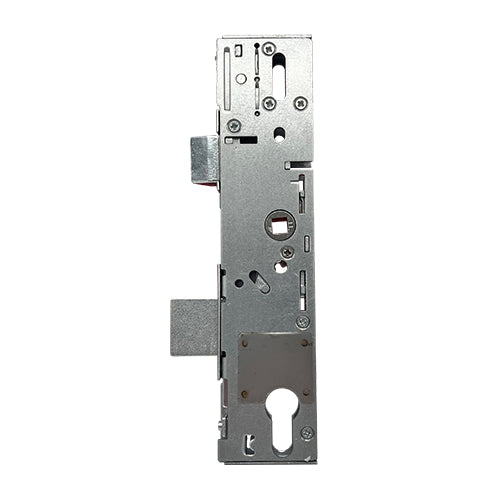

  • Latch and Deadbolt Specifications:
  • Latch Height: 24mm (featuring 2 distinctive screws)
  • Deadbolt Height: 30mm
  • Distance Between Latch and Deadbolt: 61mm

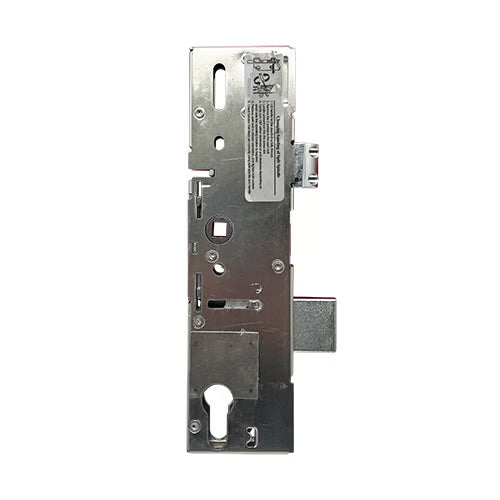

  • Mounting:
  • The gearbox is secured to the faceplate with 4 screws, which is atypical for multipoint locks.

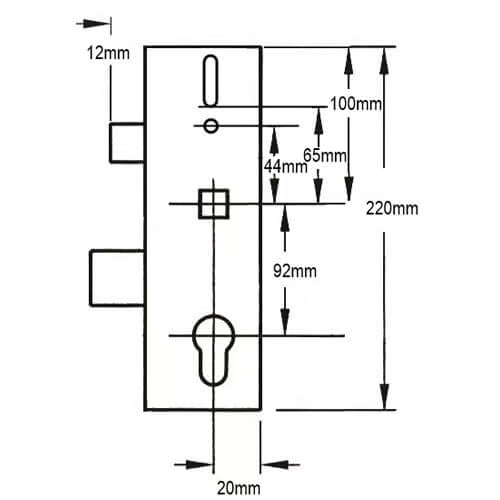

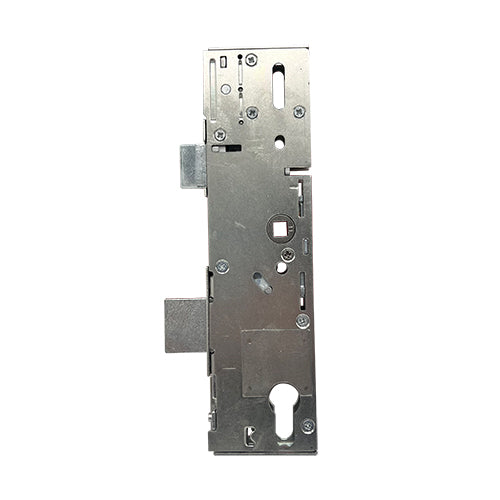

  • Screw Hole Measurements:
  • First to Second: 37mm
  • Second to Third: 85mm
  • Third to Fourth: 43mm
  • Backset Measurement:
  • When measuring the backset, account for an additional 2-3mm for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when not attached to the strip.

Operation Instructions:

  • Locking the Door:
  • Close the door to automatically engage the latch.
  • Lift the handle to activate the additional locking points.
  • Throw the deadbolt and secure the system by turning the key (some brands may throw the deadbolt by lifting the handle).
  • Unlocking the Door:
  • Turn the key to unlock the system.
  • Push the handle down to disengage the locking points.
  • A further quarter turn of the key will retract the latch.
  • Latch Reversal:
  • To reverse the latch, unscrew it, flip it, and reinsert before replacing the screws.

Nightlatch Split Spindle Reversal:

  • Remove the latch to access a small screw. Use a small screwdriver to turn the screw 180 degrees, then return the latch to its correct position.

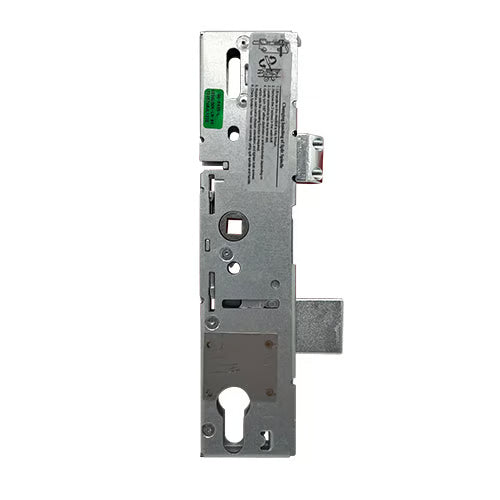

Product Specifications:

  • Manufacturer: Fab & Fix
  • Backset Options: 30mm, 35mm, or 45mm
  • Centres PZ: 92mm
  • Case Height: 220mm
  • Case Width: Backset + 20mm
  • Deadbolt Width: 6mm
  • Copy/Genuine: Genuine
  • Cylinder Type: Euro
  • Handing: Not Handed
  • Main Gearbox: Latch & Deadbolt
  • Spindle: Split 8mm
  • Operation: Lift Lever or Split Spindle Nightlatch
  • Packaging: Supplied in singles

This comprehensive overview ensures you have all the necessary information to understand and utilize the Fab & Fix multipoint door lock gearboxes effectively.
