This gearbox is designed for locks that were fitted to Zenith windows for many years. Although the locks are now obsolete, this gearbox offers a practical solution for repairing an existing lock.
Please note that the screw holes are unthreaded, so self-tapping screws are required for installation.
Replacement Hook Shells are also available. Refer to Part Number: CEGOHOOK for more details.
Operation: Lift lever or double spindle
Latch Reversal Instructions:
Lay the multipoint lock strip on the floor with the latch and deadbolt facing left.
Undo the 5 screws on the side of the case.
Remove the flat positioning plate and the latch clip.
Twist the latch into the desired position.
Reinsert the flat positioning plate and latch clip.
Replace the cover and tighten the screws.

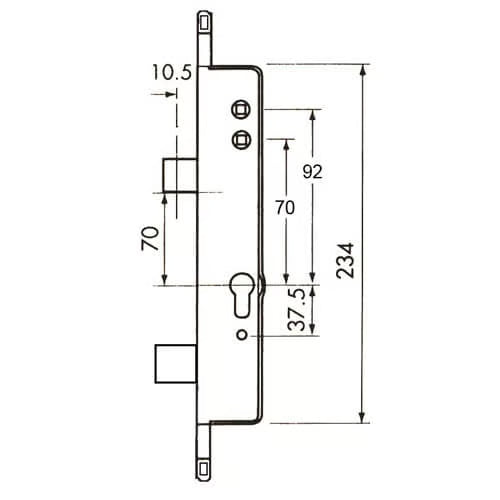

Product Specification
Manufacturer: Zenith
Backset: 35mm How to measure the backset?
Centres PZ: 92mm/70mm How to measure the centres?
Case Height: 234mm
Case Width: 52mm
Copy/Genuine: Copy
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Double 8mm
Operation: Lift Lever or Double Spindle Nightlatch What is the operation?
