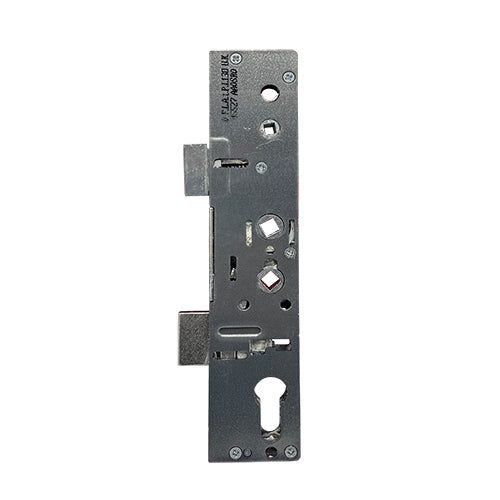

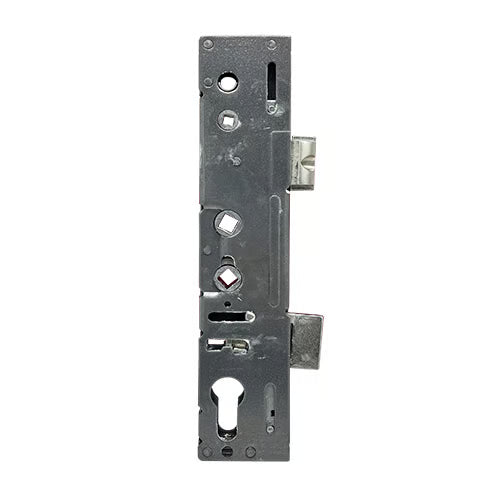

Introducing the Surprise Gearbox, designed for versatility and reliability in your locking systems. Available in both 35mm and 45mm backsets, this gearbox features a robust latch and deadbolt mechanism, ensuring enhanced security for your doors.
Key Features

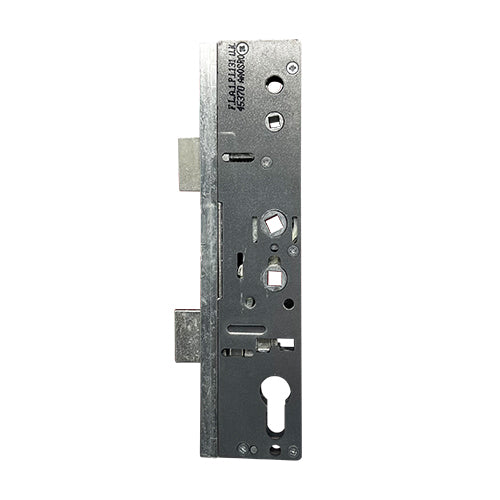

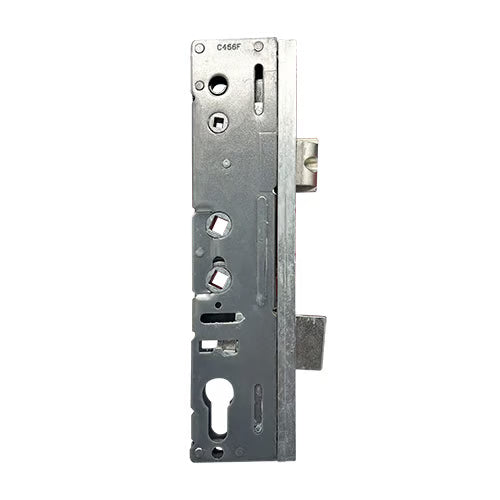

Backset Options: Choose between 35mm or 45mm backsets. The 45mm version utilizes a 35mm case with an extended latch and deadbolt, complemented by a 10mm packer piece for optimal fit.
Double Spindle Design: This gearbox is equipped with a double spindle, making it ideal for various applications. Note that it is unsprung, so we recommend pairing it with sprung door handles for best performance.

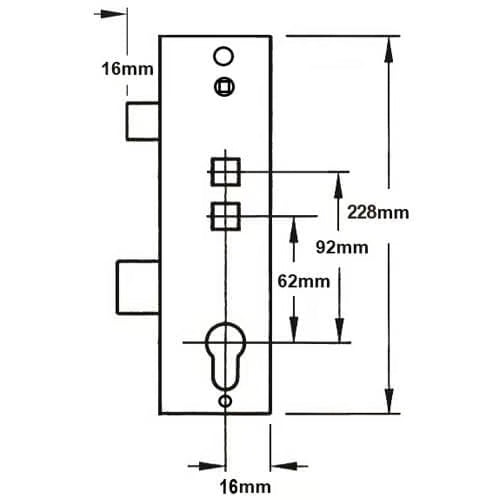

Dimensions: The gearbox measures 228mm in height, with the latch and deadbolt both measuring 30mm high. There is a 65mm distance between the bottom of the latch and the top of the deadbolt.
Installation: Designed for easy installation, the gearbox fits onto faceplates with three screw holes. The top to middle screw hole measures 109mm, as does the middle to bottom screw hole.
Latch Reversal: For convenience, the latch can be reversed by simply undoing the screw, reversing the latch, and reinserting it.
Operation Instructions
To lock the door:
Lift the handle upwards to engage the locking points.
Secure the locking points and main deadbolt (if applicable) by turning the key.
To unlock the door:
Turn the key to unlock the system.
Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications
Manufacturer: Surprise
Backset: 35mm or 45mm
Centres PZ: 92mm/62mm or 92mm only
Case Height: 228mm
Case Width: Backset + 16mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & Deadbolt
Spindle: Single or Double 8mm
Operation: Lift Lever or Double Spindle Nightlatch
Packaging: Supplied in singles
Additional Information
For further assistance on measuring backsets or centres, please refer to our detailed guides. The Surprise Gearbox is engineered for durability and ease of use, making it an excellent choice for your locking needs.
