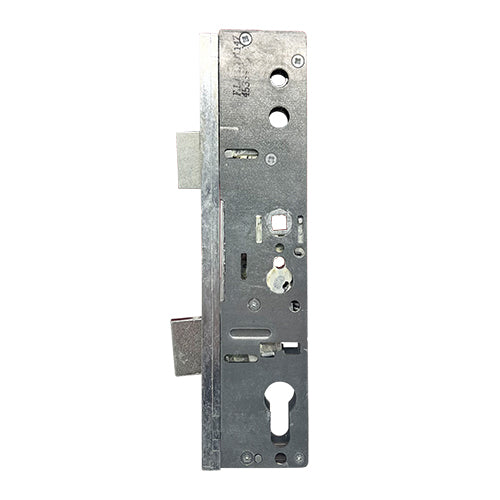

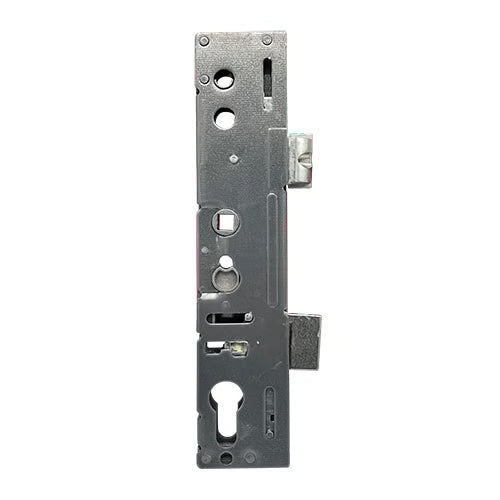

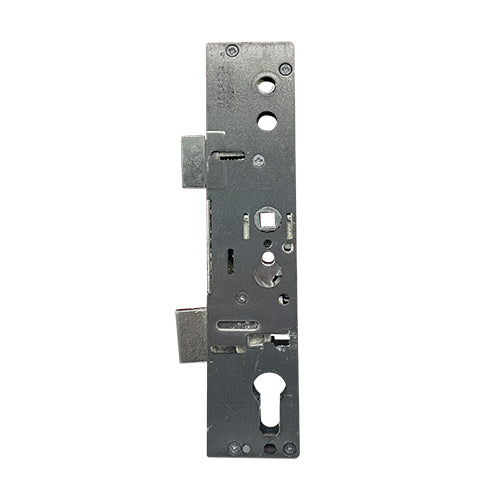

Permdor gearboxes are designed for versatility and ease of use, available in two backset options: 35mm or 45mm, featuring a single spindle mechanism.
The single spindles are sprung and specifically designed for a lift lever function, ensuring smooth operation.

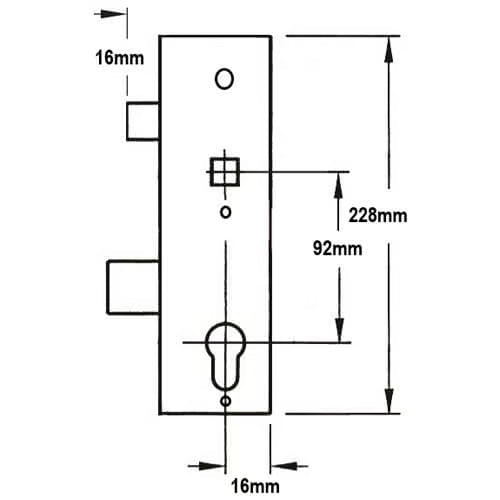

Dimensions:
Overall Size: 228mm high + backset (15mm)
Latch & Deadbolt Height: 30mm each
Distance Between Latch and Deadbolt: 65mm
Installation Details:
Permdor gearboxes are equipped with faceplates that include three screw holes for secure fitting. The measurements for the screw holes are as follows:
Top to Middle Screw Hole: 109mm
Middle to Bottom Screw Hole: 109mm
Note that earlier versions of these gearboxes featured a small spindle hole at the top of the case, adjacent to the latch, which was utilized to hold the latch back.
Operation Instructions:
To Lock the Door:
Lift the handle upwards to engage the locking points.
Secure the locking points and main deadbolt (if applicable) by turning the key.
To Unlock the Door:
Turn the key to unlock the system.
Push the handle downwards to disengage the locking points and retract the latch.
Latch Reversal:
To reverse the latch, simply undo the screw in the latch to remove it. Reverse the latch and reinsert it, then replace the screw.
Product Specification
Manufacturer: Permdor
Backset Options: 35mm or 45mm (How to measure the backset?)
Centres PZ: 92mm (How to measure the centres?)
Case Height: 228mm
Case Width: Backset + 16mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Single 8mm
Operation: Lift Lever (What is the operation?)
Packaging: Supplied in singles
For any further inquiries or assistance, feel free to reach out!
