Multipoint Gearbox - Lift Lever

Product Information

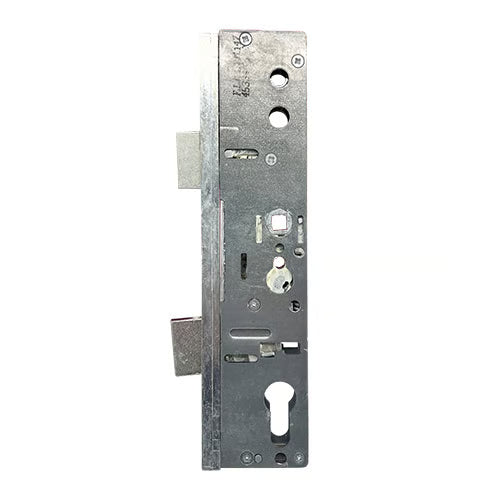

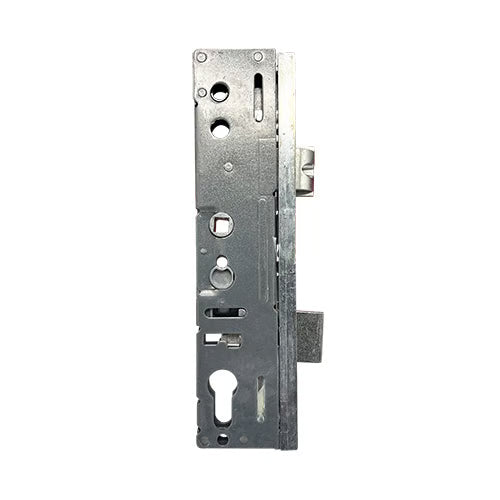

Apeer gearboxes are designed for durability and functionality, available in two backset options: 35mm or 45mm, featuring a single spindle mechanism.

The single spindles are sprung and specifically designed for lift lever operation only.

Each Apeer gearbox measures 228mm in height, with the backset plus an additional 15mm. The latch and deadbolt both measure 30mm in height, with a distance of 65mm between the bottom of the latch and the top of the deadbolt.

These gearboxes are compatible with faceplates that have three screw holes. The distance from the top to the middle screw hole is 109mm, and the distance from the middle to the bottom screw hole is also 109mm.

Earlier models of these gearboxes included a small spindle hole at the top of the case, adjacent to the latch, which was utilized to hold the latch back.

Operation: Lift Lever

Latch Reversal: To reverse the latch, simply undo the screw in the latch to remove it. Reverse the latch and reinsert it, then replace the screw.

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: Apeer
• Backset: 35mm or 45mm - How do I measure the backset?
• Centres PZ: 92mm - How do I measure the centres?
• Case Height: 228mm
• Case Width: Backset + 16mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever - What is the operation?
• Packaging: Supplied in singles
