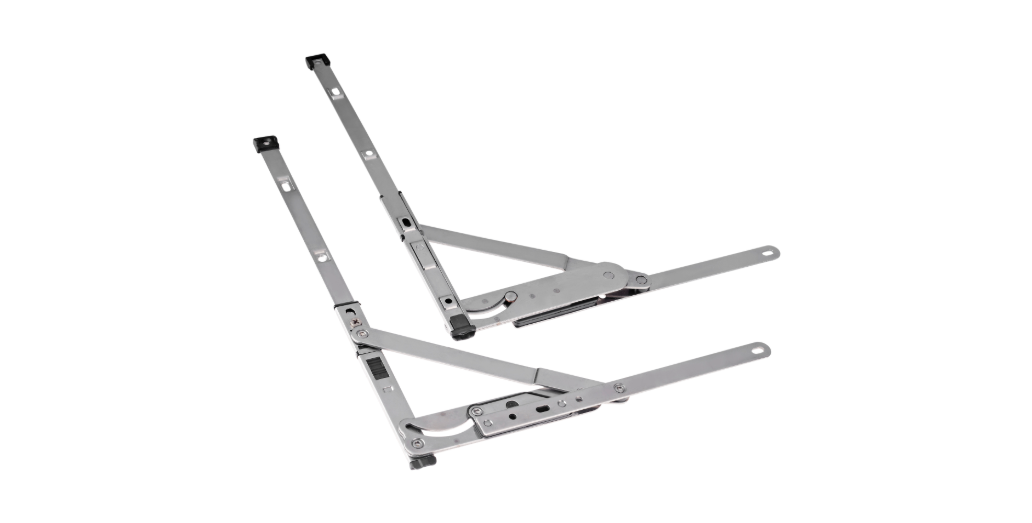

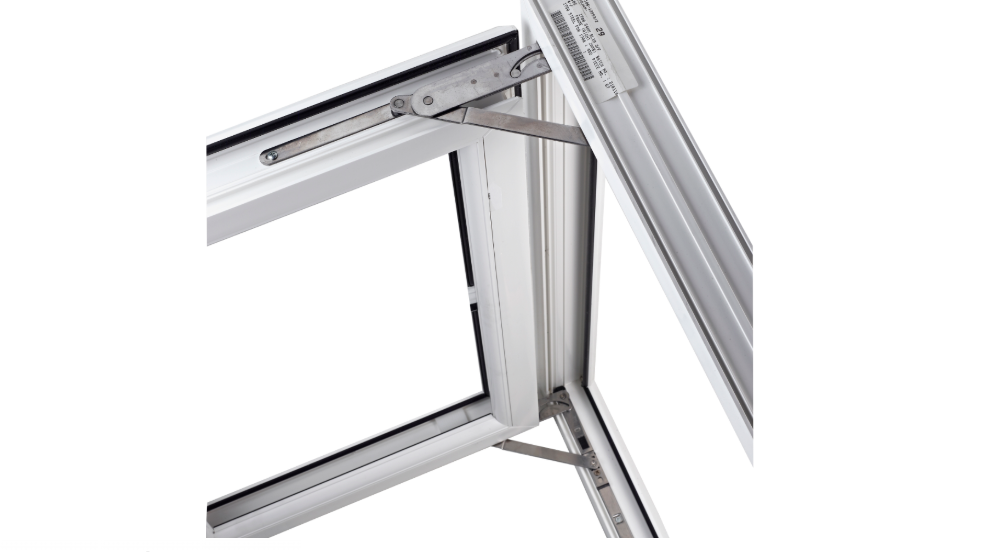

The Mega Egress hinge from Trojan is engineered for exceptional performance and reliability in casement window systems. Its robust design ensures operational durability, making it an ideal choice for all side-hung applications.

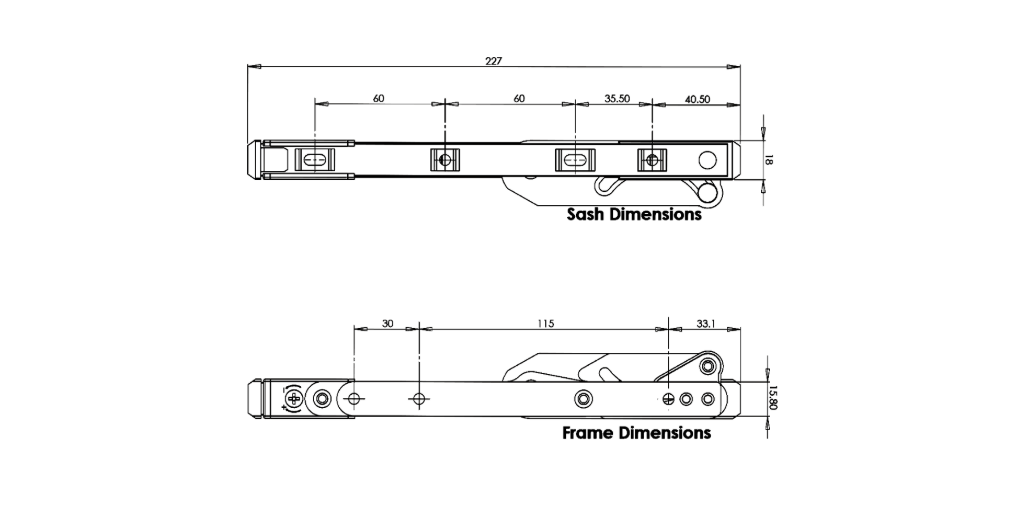

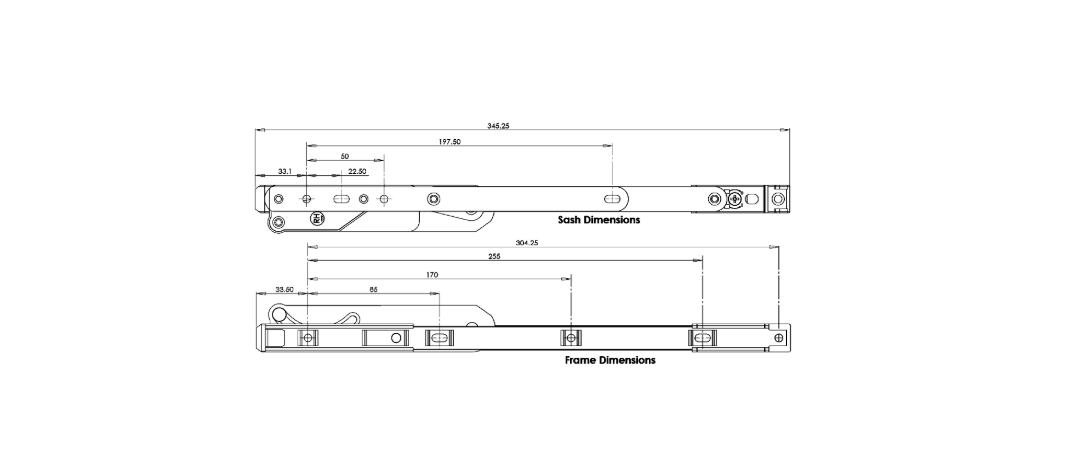

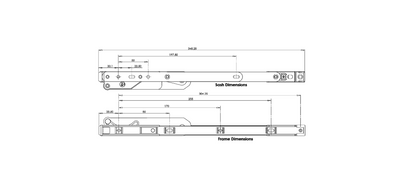

With a remarkable carrying strength, this hinge accommodates windows with a maximum frame width of 900mm, supporting weights of up to 40kg for the 345mm version and 33kg for the 227 mm version. Sold as a pair, these hinges provide balanced support and facilitate a true 90º opening, ensuring compliance with egress requirements.
Backed by a 10-year mechanical parts guarantee, the Mega Egress hinge has undergone rigorous testing, achieving over 25,000 cycles in accordance with EN1191 standards. Additionally, it surpasses Grade 5 classification for corrosion resistance as per BS EN 1670, ensuring longevity and reliability in various environments.
Key features include:
Grade 430 Stainless Steel construction for enhanced durability
Exceeds Grade 5 classification in corrosion resistance testing
PAS 24 security test compliance as part of a complete window system
Designed for window frames up to 900mm width and 40kg (345mm version) or 33kg (227mm version) sash weight
User-friendly "easy clean" setting to minimize maintenance and reduce the risk of finger trapping
Choose Trojan's Mega Egress hinge for a blend of strength, safety, and convenience in your window systems.
