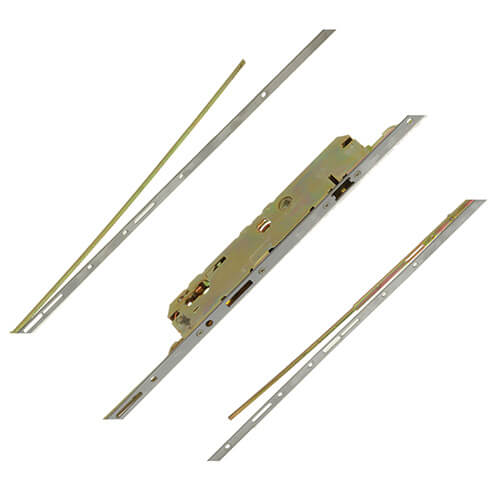

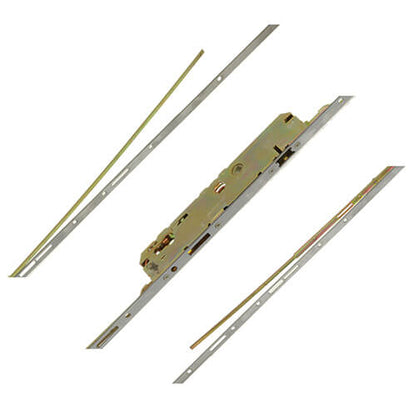

Mantis 1 Slave Lock Lift Lever Multipoint Door Lock

Product Overview: Millenco Mantis 1 Multipoint Door Lock

The Millenco Mantis 1 multipoint door lock is specifically designed for the passive door in a pair of French doors, featuring no locking points. This version of the original Mantis 1 boasts 117mm centres, making it a reliable choice for your door security needs.

Key Features:

• Unique Measurements: The Mantis 1 lock is characterized by its unique 117mm and 86mm centres (PZ), now part of the Yale group of companies.
• Variants Available: Choose from three different configurations:
  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • 4 roller version
  • Passive lock version
• Historical Context: Previous Mantis 1 locks featured hooks and deadbolts in various locations, but these older models are no longer available. Some adjustments may be necessary to reposition keeps and locking positions.
• Compatibility: The variant without rollers is typically used on timber and composite doors, while the roller version is suited for UPVC doors. You may find Mantis 1 locks with a cover plate, either 24mm or 44mm wide, which can be reused on replacement locks.

Identification:

Identifying a Millenco Mantis 1 lock is straightforward due to its double spindle design and specific centre measurements. This is crucial for ensuring you have the correct lock, especially since earlier versions may lack branding on the faceplate.

Gearbox Specifications:

• Configuration: The Mantis 1 gearbox is available in a double spindle configuration for lift lever or nightlatch operation.
• Backset: The only backset option is 35mm.

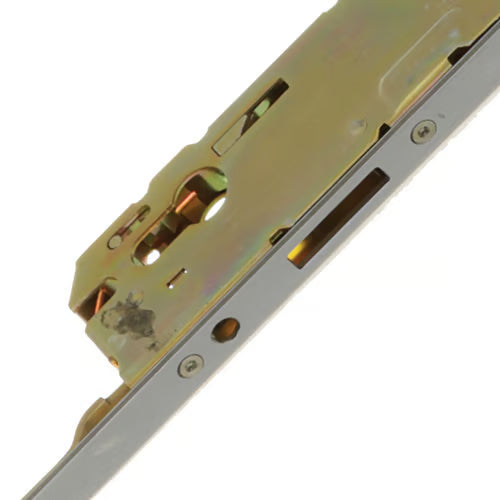

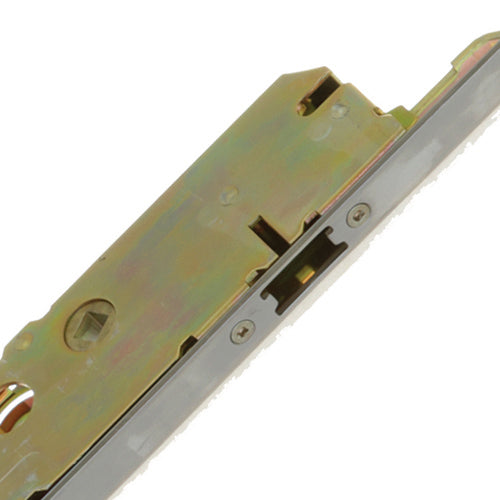

• Dimensions: The gearbox is one of the largest on the market, measuring 260mm high by 53mm wide, featuring a central hook bolt that is 45mm high and a latch measuring 23mm high with an 11mm projection.

Repair and Maintenance:

While the faceplate can be unscrewed, the Mantis 1 gearbox cannot be swapped with a replacement due to its connection to the linkage rail. However, repair parts are available for existing gearboxes. For more information, please refer to our multipoint lock gearbox category.

Operating Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

This comprehensive overview ensures you have all the necessary information to effectively utilize and maintain your Millenco Mantis 1 multipoint door lock.

Product Specification

• Manufacturer: Millenco
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Spindle: Single 8mm
• Handing: Non handed
• Height: 1500mm
• Door Material: UPVC, Aluminium, Timber, Composite
