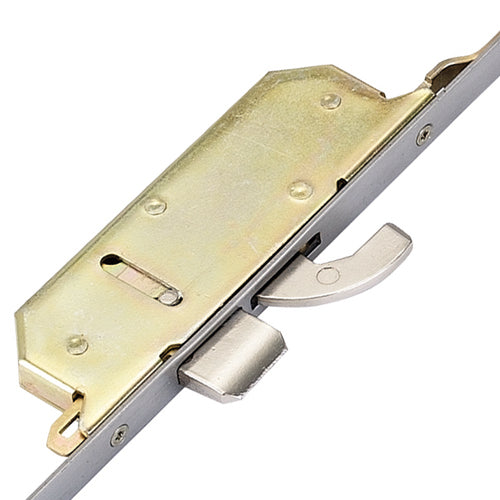

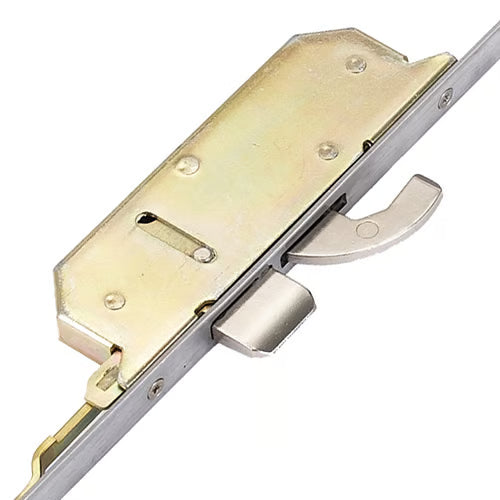

Mantis 1 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Product Overview: Millenco Mantis 1 Multipoint Door Lock

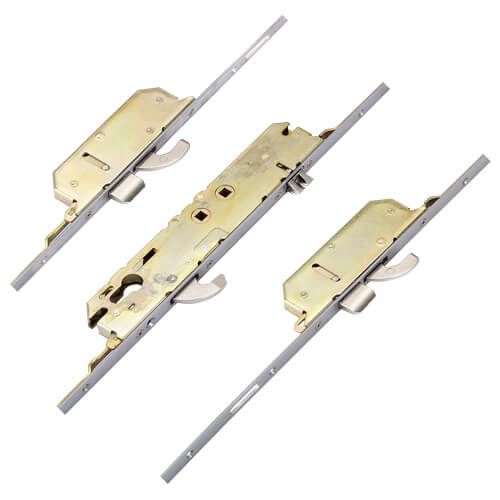

The Millenco Mantis 1 multipoint door lock is designed for enhanced security, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This lock is a reliable choice for both residential and commercial applications.

Key Features:

• Unique Gearbox Design: The Mantis 1 lock boasts a distinctive gearbox with 86/117mm centres, ensuring compatibility with specific door types. Note that older versions may lack markings on the faceplate.

• Versatile Variants: Available in three configurations:

  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • 4 roller version
  • Passive lock version

• Compatibility: Ideal for timber, composite, and UPVC doors. Older locks with cover plates (24mm or 44mm wide) can be reused with this product, allowing for seamless installation.

Identification and Installation:

Identifying a Millenco Mantis 1 lock is straightforward due to its unique double spindle design and specific centre measurements. Ensure you have the correct lock by checking for these features, especially since earlier models may not have branding on the faceplate.

Gearbox Specifications:

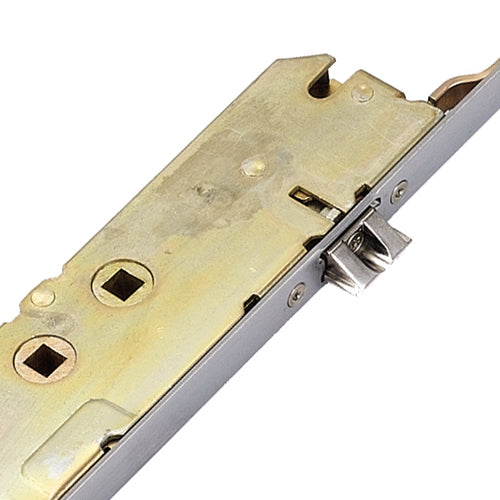

• Configuration: Double spindle for lift lever or nightlatch operation
• Backset: 35mm
• Dimensions: 260mm high by 53mm wide

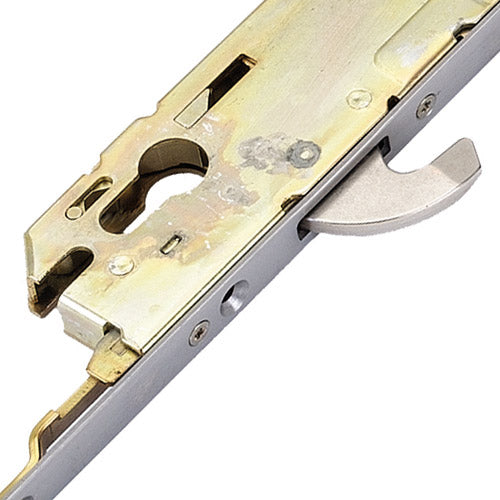

• Hook Bolt: 45mm high with a latch measuring 23mm high and projecting 11mm

Repair and Maintenance:

While the faceplate can be unscrewed, the Mantis 1 gearbox is not interchangeable due to its connection with the linkage rail. However, repair parts are available for existing gearboxes, ensuring longevity and continued performance.

Conclusion:

The Millenco Mantis 1 multipoint door lock is a top-tier choice for those seeking security and reliability. With its unique features and compatibility options, it stands out in the market, making it an excellent investment for safeguarding your property.

Product Specification

Manufacturer: Millenco

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 117mm/86mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Hooks: 3

Deadbolts: 2

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down - What is the operation?

Spindle: Double 8mm

Handing: Non handed

Distance Between Inner Locking: 1290mm

Distance Between Outer Locking: 1300mm

Height: 2200mm

Top Hook to Spindle: 610mm

Bottom Hook to Spindle: 680mm

Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate installation and compatibility, follow these measuring guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole or handle.
2. This distance is your backset.

Centres Measurement:

1. Measure the distance between the centers of the keyhole and the handle.
2. Use a ruler or tape measure for precision.

Faceplate Measurement:

1. Measure the width and length of the existing faceplate.
2. Ensure to check for any additional features or cutouts.

Operation Types:

• Latch Operation: Engages automatically when the door is closed.
• Deadbolt Operation: Requires a key or thumb turn to secure.

By following these guidelines, you can ensure that your Millenco Mantis 1 lock is installed correctly and functions optimally.
