M-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Radius 20mm Faceplate Electric Multipoint Door Lock

Product Overview

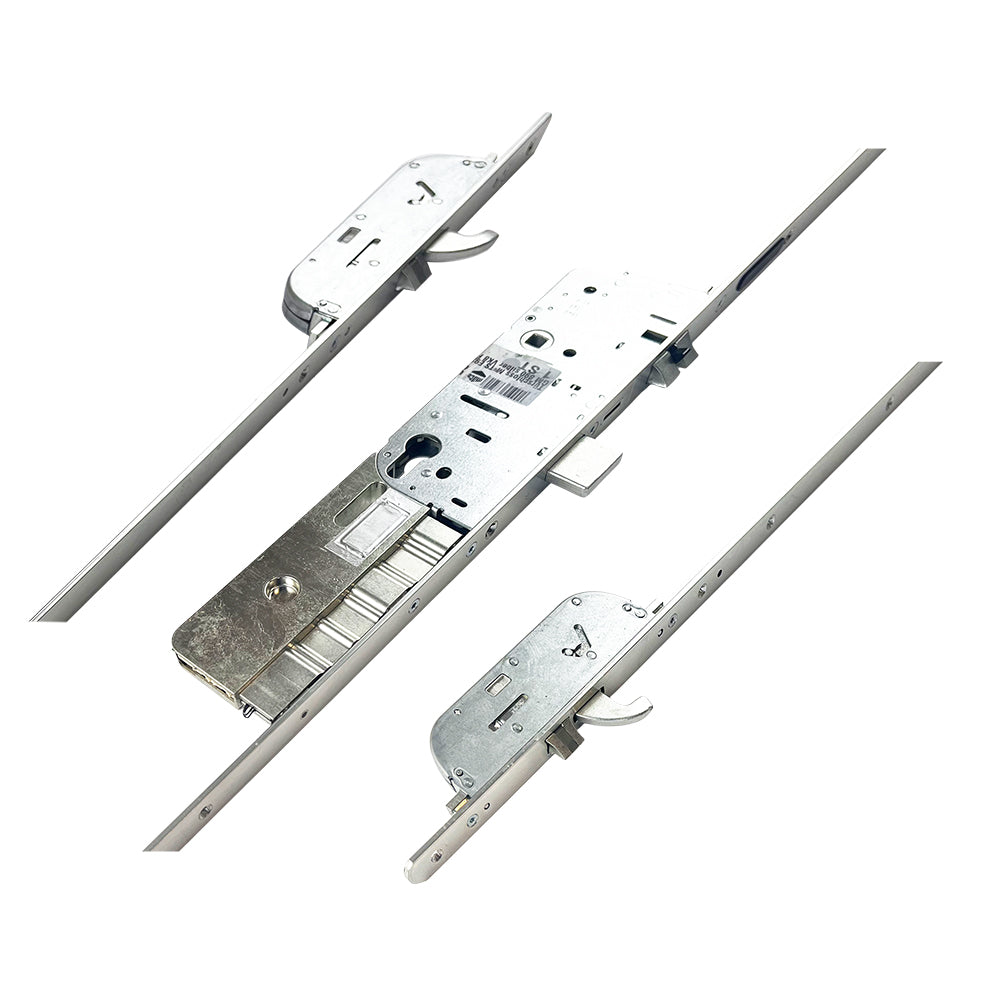

The Maco M-TS Electric Multipoint Door Lock is engineered for high security and reliability, making it an ideal choice for modern entrance doors. This advanced locking system features a robust design with 2 Hooks, 2 Anti-Lift Bolts, 1 Deadbolt, and 1 Latch, all integrated into a sleek 20mm radius faceplate with round ends. With an overall height of 1750mm and backsets of 45mm and 55mm, it is perfectly suited for PVC, composite, and timber door installations that require powered access control.

Key Features

The M-TS lock stands out with its combination of mechanical strength and electric latch retraction, allowing seamless integration with intercoms, access control systems, or smart home setups. Notably, it maintains full mechanical locking through its hooks, anti-lift bolts, and central deadbolt, ensuring complete security even in the event of a power failure.

Identification and Compatibility

You can easily identify the M-TS lock by its single piece strip, radius 20mm round end faceplate, and the unique arrangement of hooks and anti-lift bolts. The system operates with a single 8mm spindle and is designed for non-handed operation, making it compatible with both left and right opening doors without any need for modification.

Locking Points & Security Features

The M-TS model includes:

• 2 Uni-directional Hooks: These hooks engage firmly into their keeps, compressing the door against the frame to resist forced separation.

• 2 Anti-Lift Bolts: Positioned near the hooks, these bolts prevent vertical lifting or jamming of the door, enhancing security.

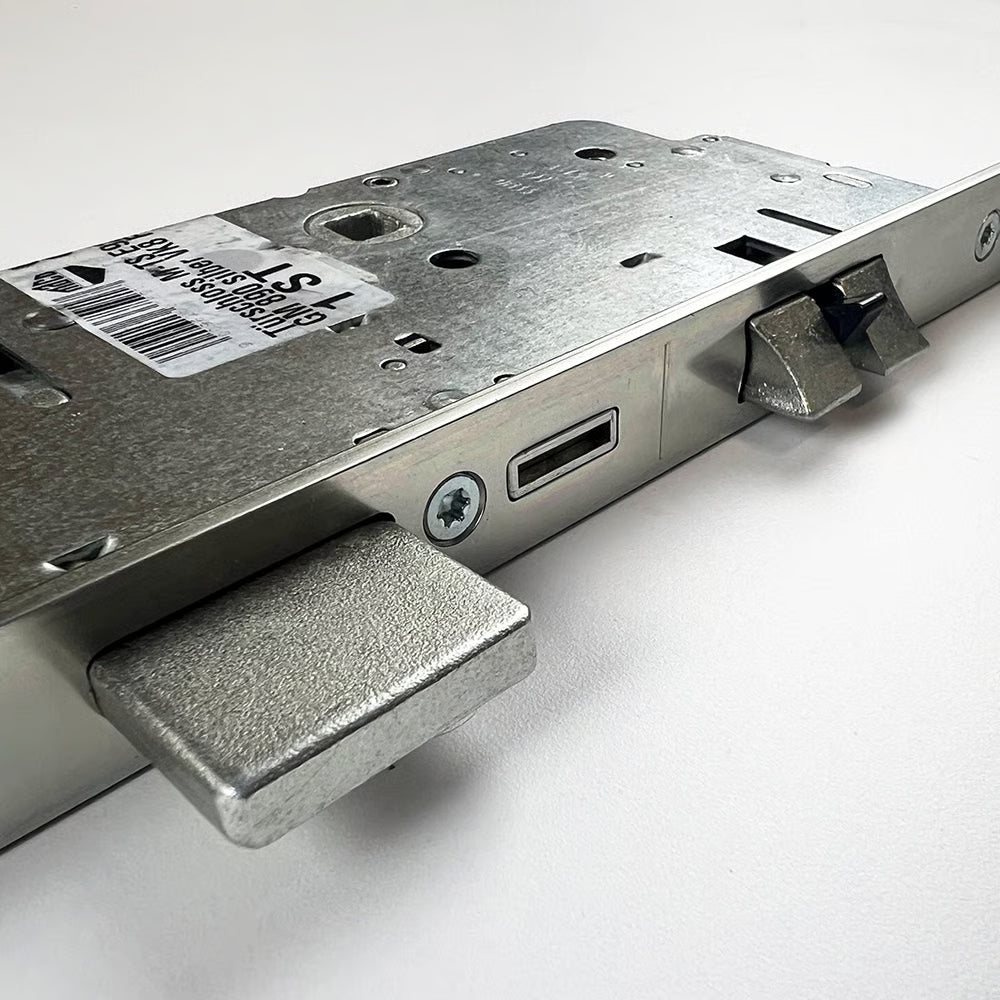

• 1 Central Deadbolt & Latch: The deadbolt serves as the primary mechanical lock, while the latch retracts electrically, allowing for hands-free or remote entry.

Important Note

Please be aware that the anti-lift bolts require specific compatible keeps due to their proximity to the hooks, providing improved protection against physical attacks. This ensures that your entry point remains secure and reliable under various conditions.

 Product Specification

Manufacturer: Maco

Backset Options: 45mm or 55mm

Centres (PZ): 92mm

Operation: Electric

Spindle: Single 8mm

Handing: Non-handed

Hooks: 2

Anti-lift bolts: 2

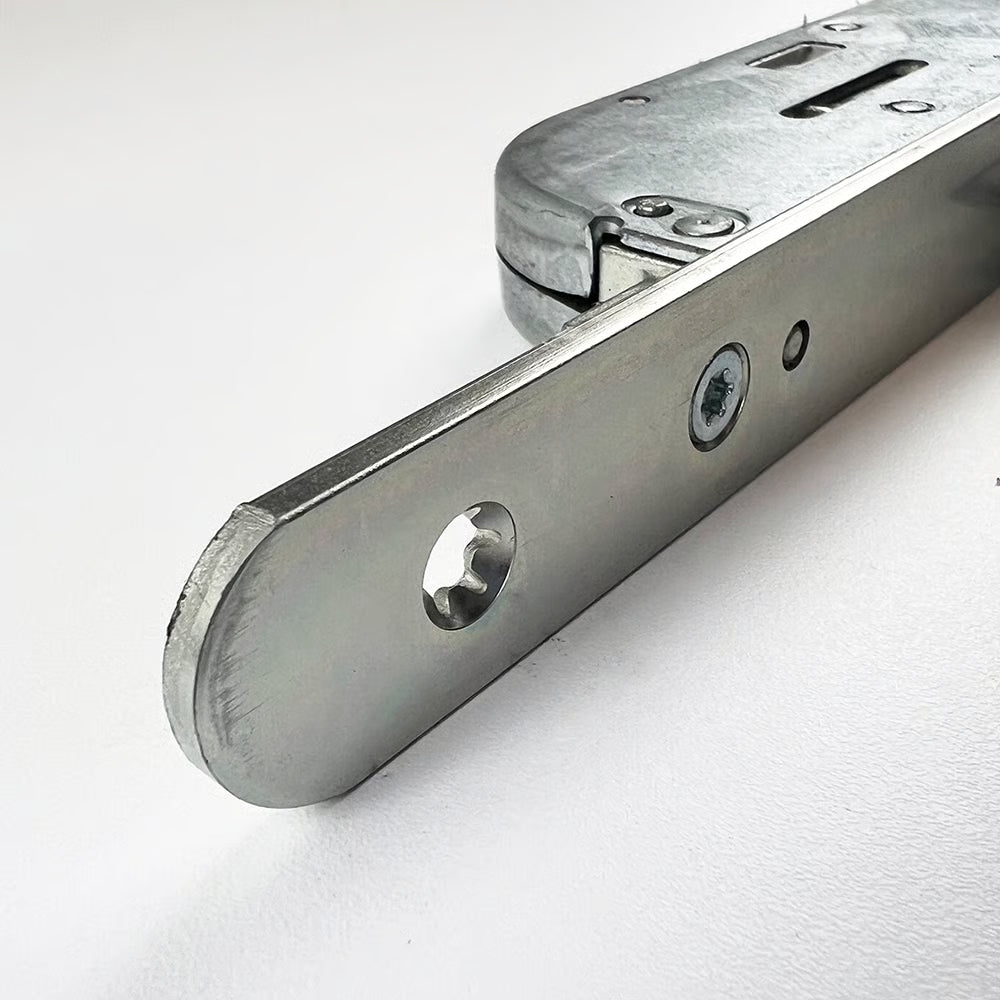

Faceplate: Radius 20mm – Round Ends

1, 2 or 3 Piece Strip: 1-piece

Distance Between Outer Locking Points: 1490mm

Shootbolt Attachments: No

Overall Lock Height: 1750mm

This comprehensive specification highlights the key attributes of the Maco M-TS Electric Multipoint Door Lock, ensuring that you have all the necessary information for installation and compatibility. With its robust design and advanced features, this lock is engineered to provide maximum security and convenience for your entrance doors.
