M-TS Latch & Deadbolt 2 Hooks 2 Anti Lift Bolts Flat 20mm Faceplate Electric Multipoint Door Lock

Product Overview

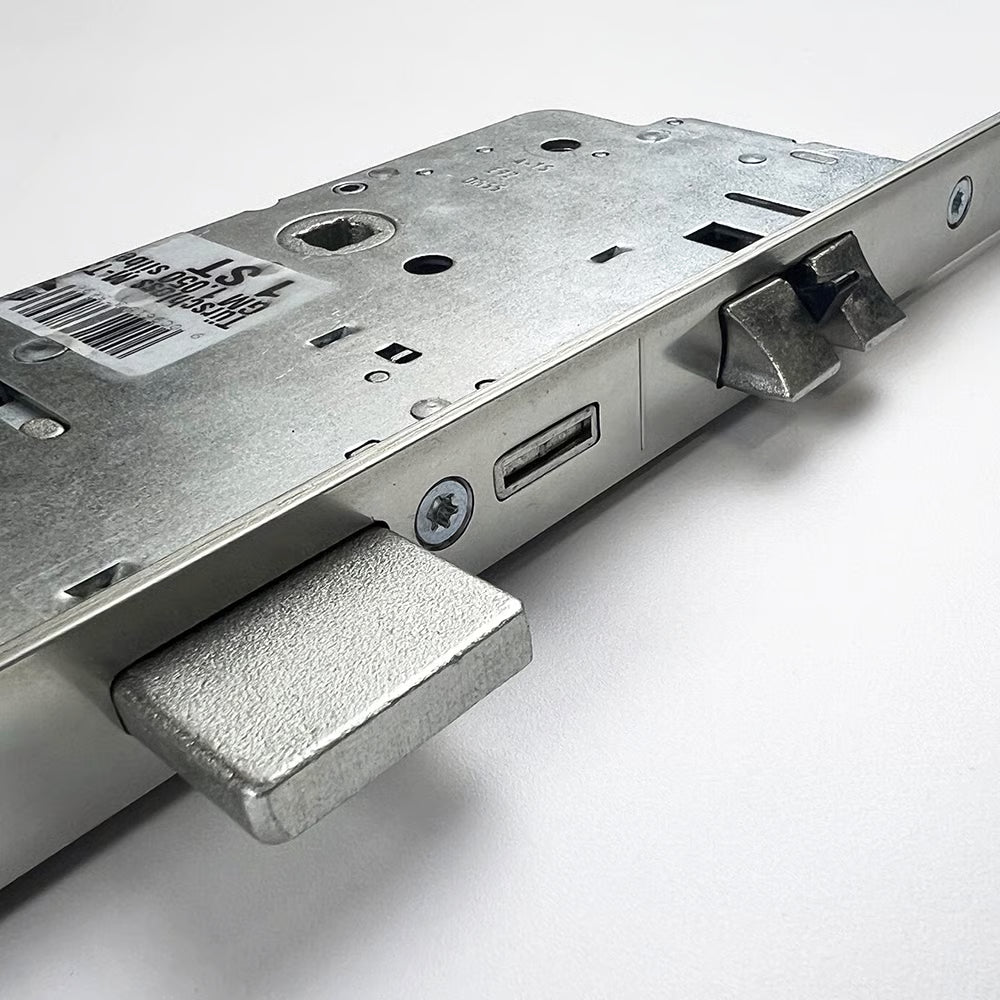

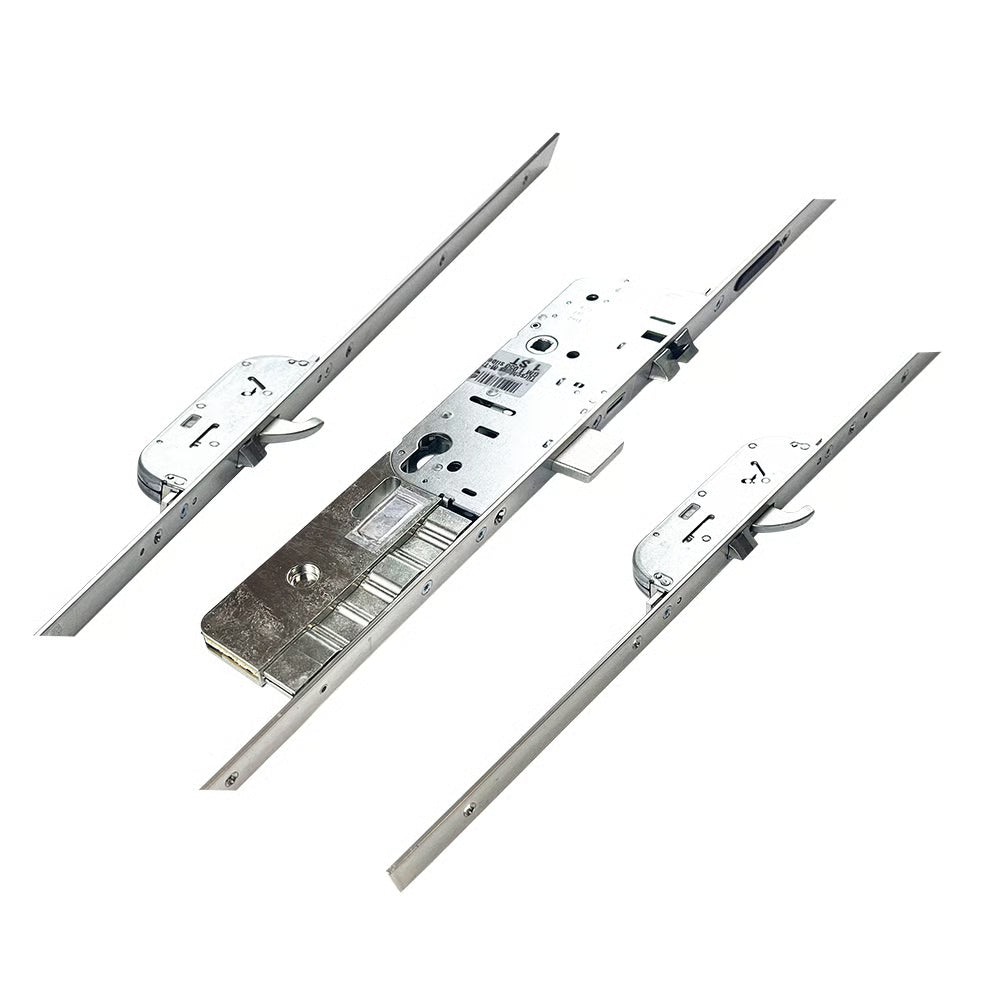

The Maco M-TS Electric Multipoint Door Lock is engineered for high security and reliability, making it an ideal choice for modern entrance doors. This advanced locking system features a robust design with 2 Hooks, 2 Anti-Lift Bolts, 1 Deadbolt, and 1 Latch, all mounted on a sleek 20mm flat faceplate with square ends. With a total height of 2200mm, it accommodates backsets of 45mm and 55mm, making it suitable for PVC, composite, and timber doors that require a slimmer profile.

Key Features

• Mechanical Strength & Electric Functionality: The M-TS lock combines the durability of mechanical locking with the convenience of electric latch retraction, allowing seamless integration with intercoms, access control systems, or smart home technologies.

• Reliable Security: Even during power outages, the lock maintains its mechanical integrity through its hooks, anti-lift bolts, and central deadbolt, ensuring your home remains secure.

• Versatile Design: Identified by its 1-piece strip and distinctive locking mechanism, the M-TS lock operates with a single 8mm spindle that is non-handed, making it adaptable for both left and right opening doors without any modifications.

Locking Points & Security Features

The M-TS model is equipped with:

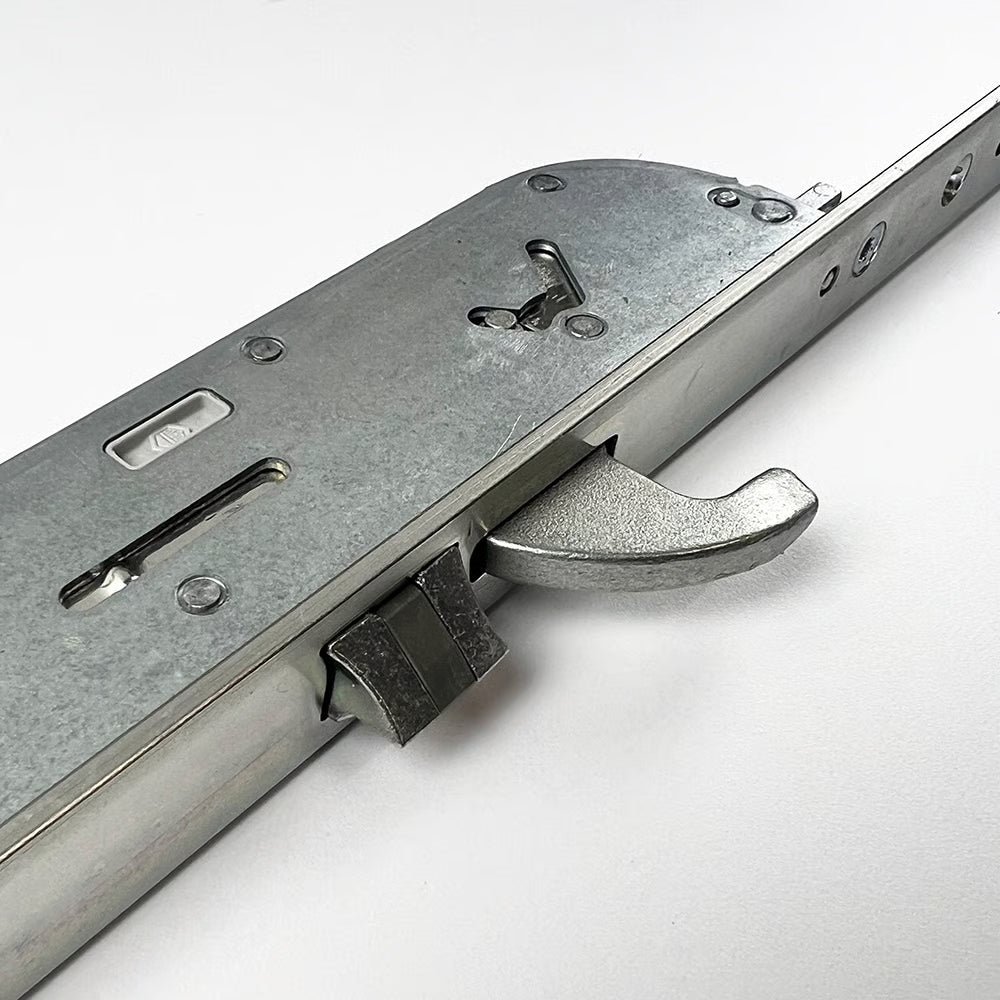

• 2 Uni-directional Hooks: These hooks engage securely into their keeps, compressing the door against the frame to resist forced entry.

• 2 Anti-Lift Bolts: Strategically positioned near the hooks, these bolts prevent vertical lifting or jamming of the door, enhancing overall security.

• 1 Central Deadbolt & Latch: The deadbolt serves as the primary mechanical lock, while the latch can be retracted electrically for hands-free or remote access.

Important Note: The anti-lift bolts require specific compatible keeps due to their proximity to the hooks, providing enhanced protection against physical attacks.

This comprehensive locking system ensures peace of mind, combining advanced technology with robust mechanical features for superior security.

 Product Specification

Manufacturer: Maco

Backset Options: 45mm or 55mm

Centres (PZ): 92mm

Operation: Electric

Spindle: Single 8mm

Handing: Non-handed

Hooks: 2

Anti Lift Bolts: 2

Faceplate: Flat 20mm – Square Ends

1, 2 or 3 Piece Strip: 1 piece

Distance Between Outer Locking Points: 1490mm

Shootbolt Attachments: No

Overall Lock Height: 2200mm

This detailed specification highlights the Maco M-TS Electric Multipoint Door Lock's versatility and robust design, ensuring it meets the needs of various door types while providing exceptional security and ease of use.
