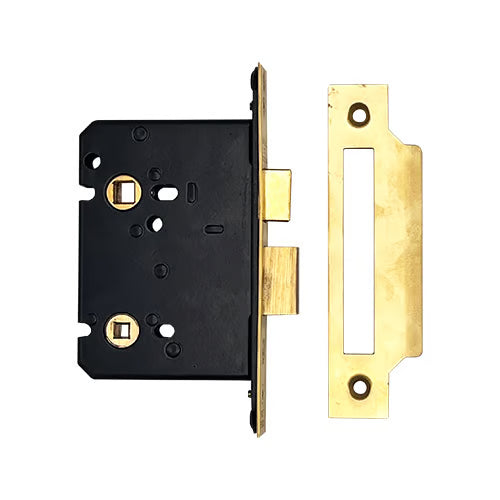

Locks G8020 Bathroom Mortice Lock

Introducing our high-quality bathroom mortice lock, designed specifically for wooden hinged doors. This lock is CE Marked and fire rated to BS EN 1634-1:2000, ensuring safety and compliance with industry standards. It is also performance rated to BS EN 12209, providing you with peace of mind regarding its durability and functionality.

Key Features:

• Operation:
• Latchbolt operated by lever handle from either side
• Deadbolt operated by turn from either side
• Included Components:
• Supplied with striker plate and fixing screws
• Finishes Available:

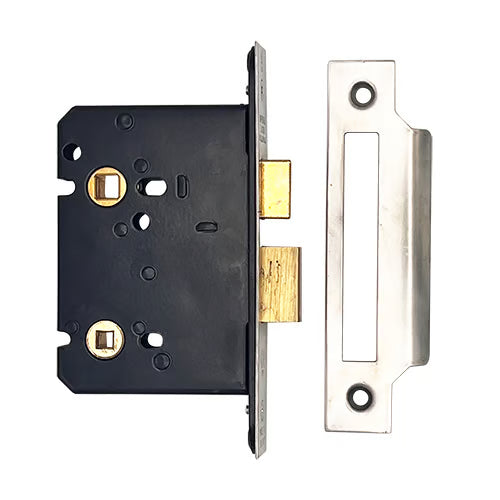

• Stainless Steel (SS)
• Satin Brass (SB)

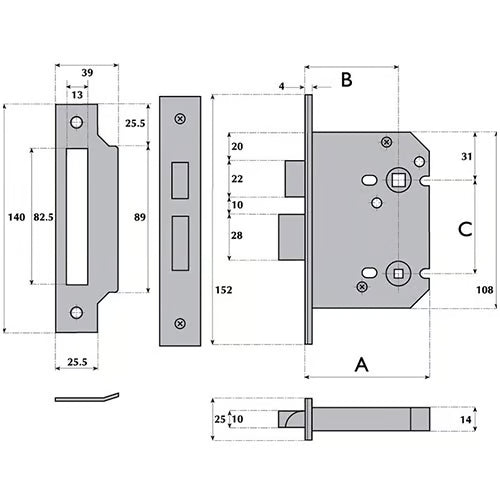

Product Specifications

• Backset: 57mm
• Centres: 57mm
• Faceplate Dimensions: 152mm x 25mm
• Case Depth: 76mm
• Case Height: 108mm
• Case Design:
• Pierced to accept 38mm centre horizontally and diagonally opposed bolt through fixing furniture
• 63mm size pierced diagonally only
• Striker Plate: Type A
• Latchbolt:
• Material: Brass
• Projection: 12mm
• Deadbolt:
• Material: Brass
• Throw: 14mm
• Latchbolt Follower:
• Material: Brass
• Suits: 8mm square spindle
• One-way action
• Sprung to suit sprung lever handle furniture

• Deadbolt Follower:
• Material: Brass
• Suits: 5mm square spindle
