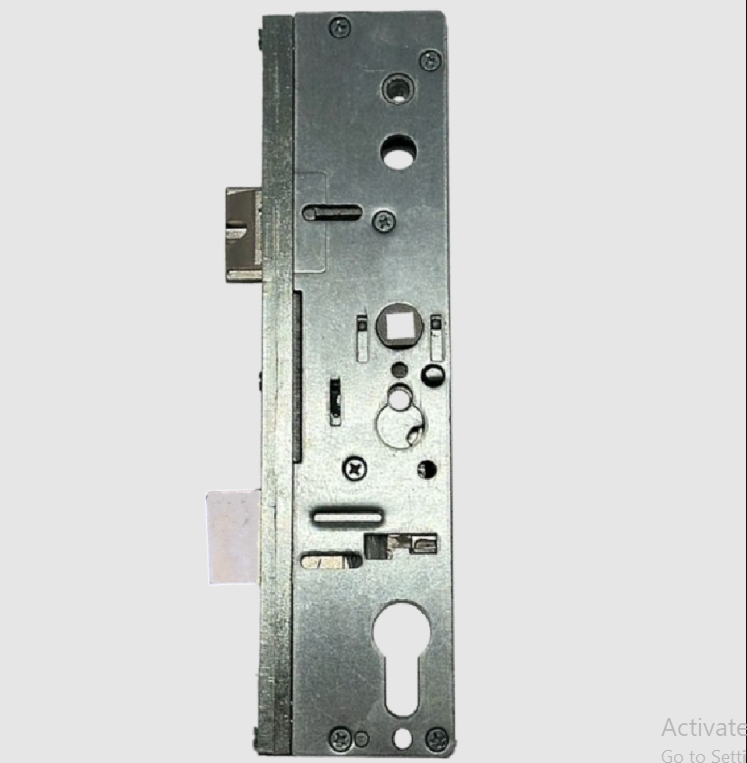

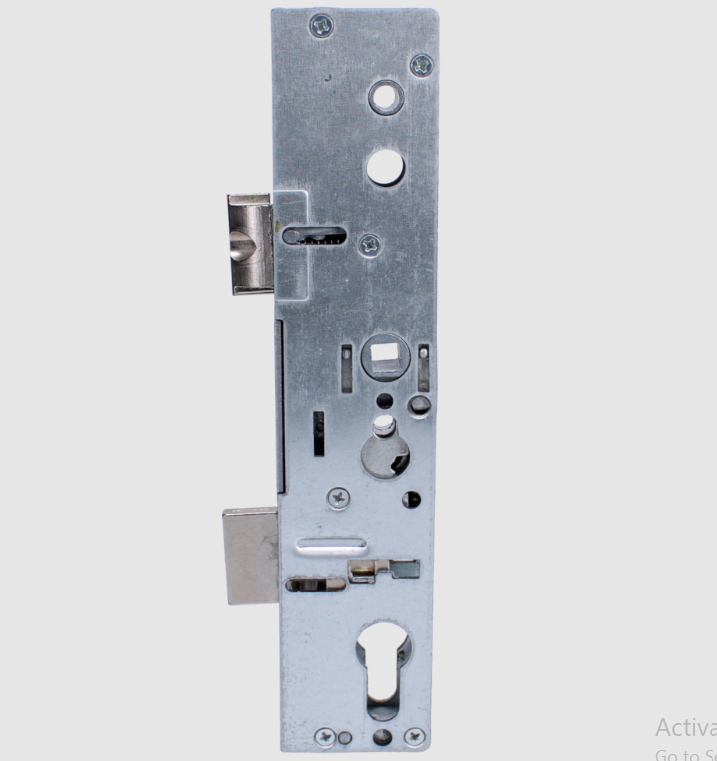

Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox

The ASEC Lockmaster Copy Lever Operated Latch & Deadbolt Single Spindle Gearbox is a versatile and efficient solution for your locking needs. With a backset option of either 35mm or 45mm and 92mm centres, this gearbox is designed to fit seamlessly into your UPVC or composite doors.

This single spindle latch and deadbolt centre case boasts a compact design with a case height of 228mm and a width of either 47mm or 57mm, making it an ideal replacement for the Lockmaster latch and deadbolt centre case. Its Euro profile compatibility ensures it meets modern security standards while providing ease of installation.

One of the standout features of this gearbox is its reversibility, allowing it to be used for both left-handed and right-handed applications. This flexibility makes it a practical choice for various door configurations.

Handing

To reverse the latch, simply remove the screw, take out the latch, flip it to the opposite hand, and reattach the screw. This straightforward process ensures that you can customize the latch orientation to suit your specific needs.

Operation

Locking Method:

• To Lock: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn.
• To Unlock: Turn the key one full turn and push the lever down.

Features

• Reversible for left-handed and right-handed applications
• Single spindle design
• Centre gearbox only
• Euro profile lock case
• Compatible with Lockmaster
• Includes both latch and deadbolt

This ASEC gearbox is the perfect solution when only the centre case gearbox needs replacing, ensuring your door remains secure and functional without the need for a complete lock replacement.
