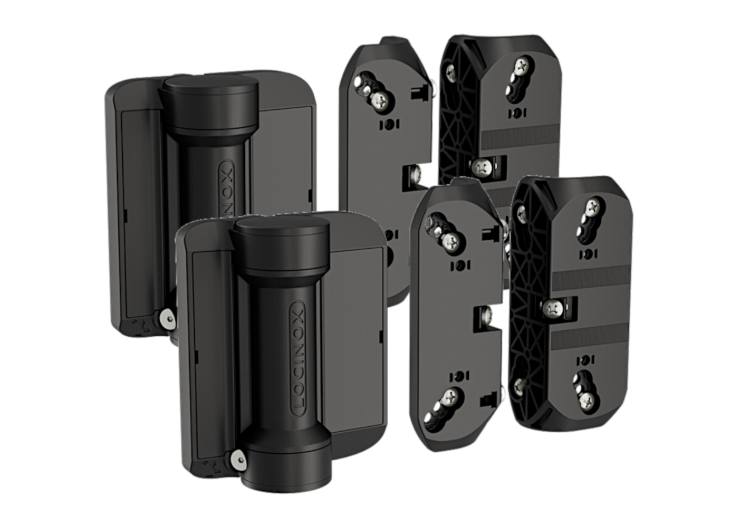

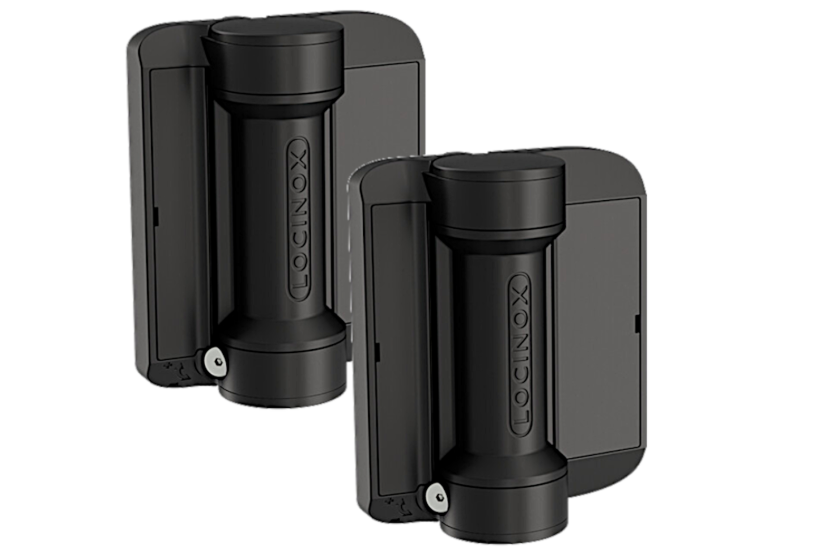

Introducing the Locinox Serval, a versatile and robust solution for your gate needs. This compact 180-degree spring hinge is designed with force adjustability, making it perfect for various applications.
Crafted from a glass fibre reinforced polyamide housing, the Serval ensures reliable performance in all weather conditions, providing durability and longevity. It accommodates both left and right turning gates, supporting a maximum weight of 60Kg and a maximum width of 1100mm, making it an ideal choice for a wide range of gates.
Key Features:
Fixed with self-drilling screws for easy installation
Tested for up to 500,000 cycles, ensuring reliability
Fibreglass reinforced polyamide housing for enhanced durability
Suitable for both left and right turning gates
20mm horizontal and vertical adjustability for precise alignment
Force adjustability from 2Nm to 7Nm (at closed position)
Specifications:

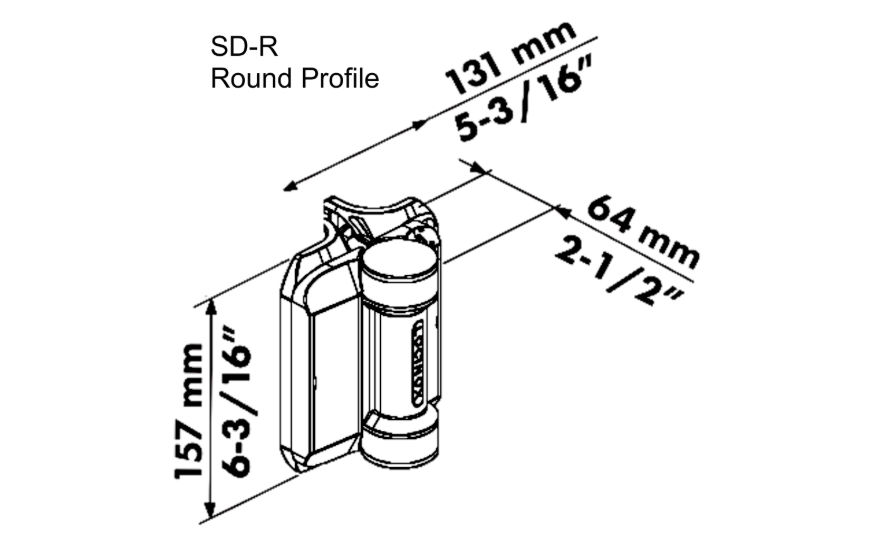

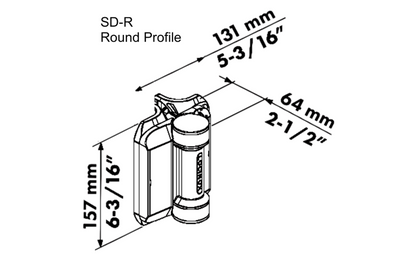

Compact 180° Spring Hinge Size:
Height: 157mm
Width: 131mm
Depth: 64mm
Max Door Weight: 60Kg
Max Door Width: 1100mm

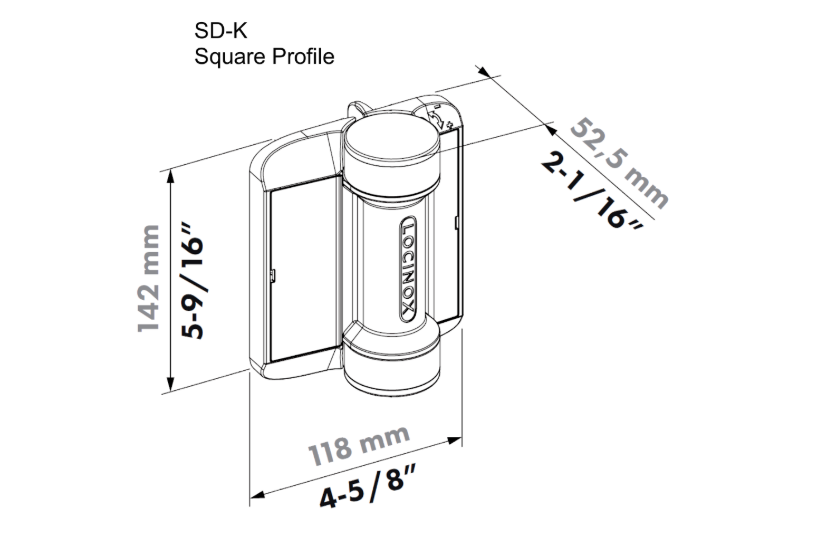

Alternate Size:
Height: 142mm
Width: 118mm
Depth: 53mm
Max Door Weight: 60Kg
Max Door Width: 1100mm
The Locinox Serval is the perfect blend of functionality and ease of use, making it a top choice for your gate hinge needs.
