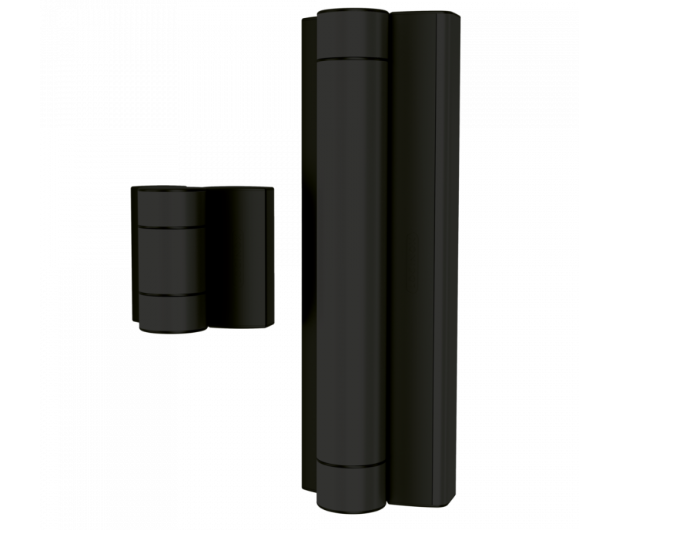

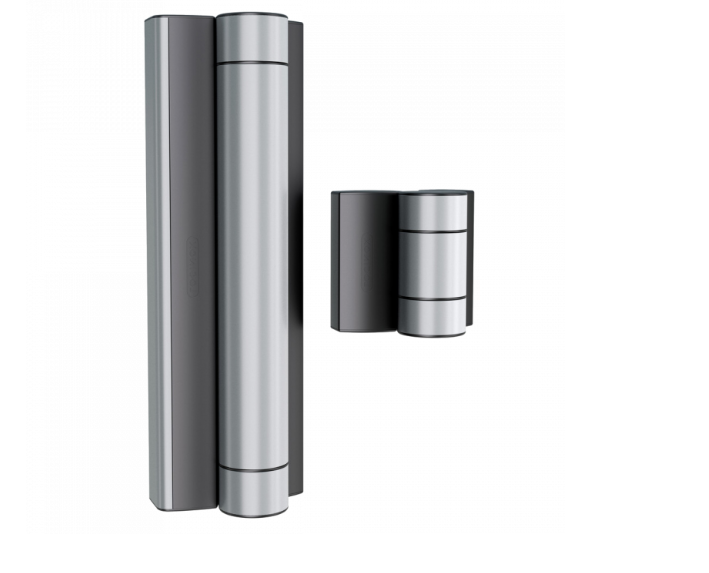

LOCINOX Magnus Motorised Hinge & Gate Closer For Pedestrian Gates

The Locinox Magnus motorised hinge and gate closer is a cutting-edge automation solution tailored for pedestrian swing gates. This all-in-one unit seamlessly integrates a motorised gate closer and hinge, ensuring smooth and controlled opening and closing without the clutter of external arms or bulky operators.

Powered by a robust brushless motor, the Magnus operates efficiently in low energy mode, adapting to varying pedestrian traffic while prioritizing safety. Its integrated obstacle detection feature automatically reverses the gate upon encountering an obstruction, enhancing user safety. The sleek, vandal-resistant design, coupled with anodised aluminium housing, makes it ideal for diverse environments, including residential, commercial, and public access areas.

Installation is a breeze with the Magnus, as it can be mounted on gate posts starting from 60 mm and accommodates gate profiles from 40 mm. It supports pedestrian gates up to 1500 mm wide and 200 kg in weight. The system boasts a durable steel gearbox that delivers up to 100 Nm of torque, along with adjustable speed and force settings for optimal performance.

Locinox’s quick fix mounting system simplifies the installation process, while configuration can be easily managed through a mobile app, allowing for convenient setup and integration with access control systems. With a lifespan exceeding 500,000 cycles and compliance with EN 16005 safety standards, the Magnus stands out as a reliable and modern solution for pedestrian gate automation.

Features:

• Vandal-resistant compact design
• 100 Nm torque
• EN 16005 Compliant
• 2m cable between motor and connection module
• Fits on post profiles from 60 mm and gate profiles from 40 mm
• Motorised gate closer with integrated electronics
• Automated obstacle detection with reverse function
• Brushless motor for long lifespan and intensive usage
• 2 dimensionally adjustable (2 x 20 mm)
• Suits pedestrian gates up to 1500 mm wide and 200 kg
