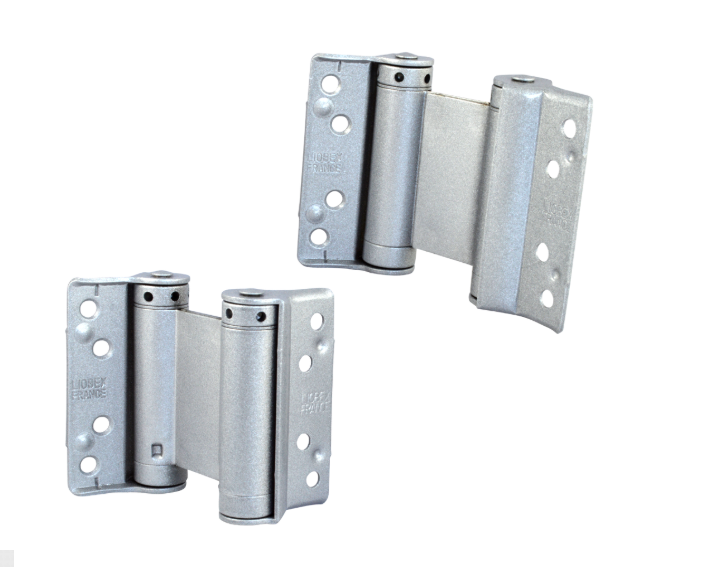

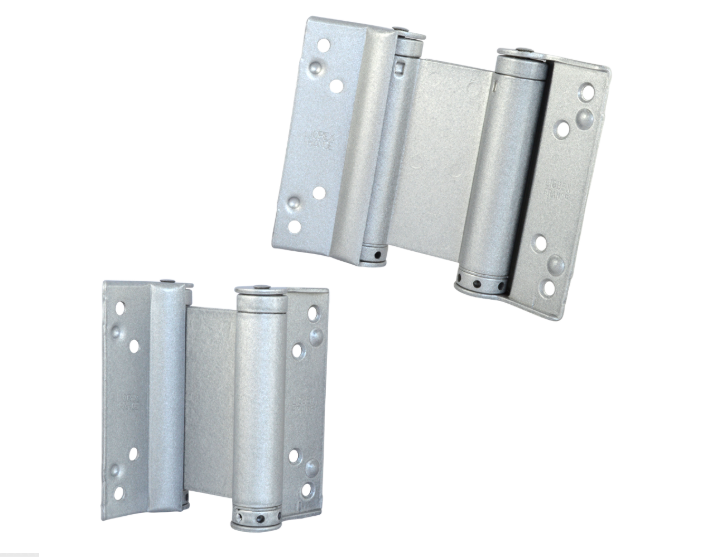

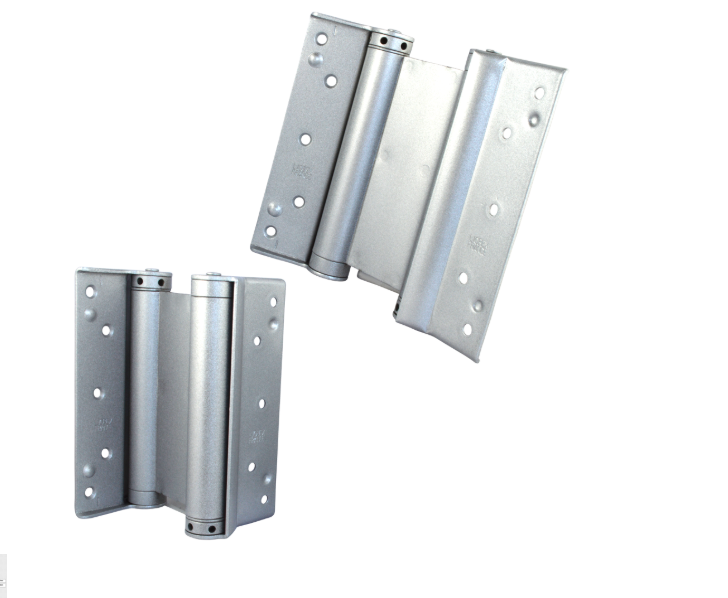

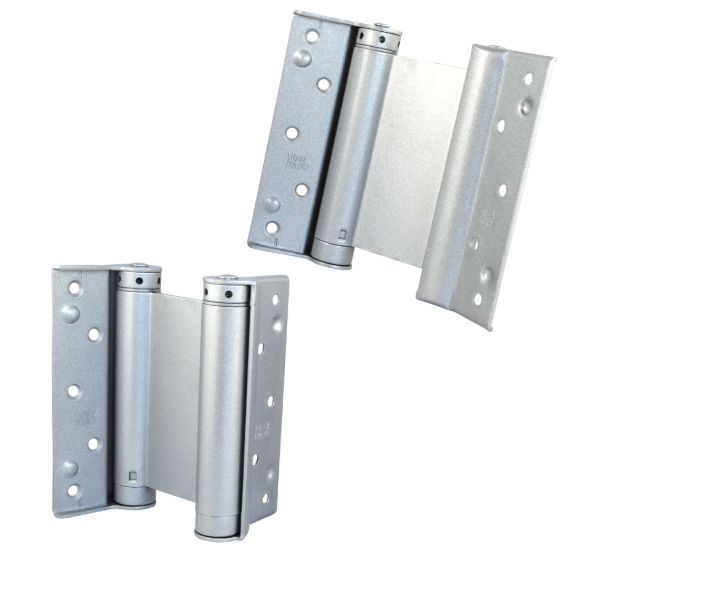

LIOBEX Double Helical Spring Hinge

Introducing our versatile double helical spring hinge, designed specifically for environments where doors need to swing in both directions, making it an ideal choice for bustling restaurants and lively bars. This innovative sprung hinge guarantees that your door will always return to the center position, ensuring smooth and efficient operation.

• Key Features:
• Double Action: Allows the door to swing both ways effortlessly.
• Enclosed Body: Provides enhanced vandal resistance, ensuring durability in high-traffic areas.
• Available Sizes:
• Height: 100mm
  • Door Thickness: 21mm to 30mm
  • Max Door Weight: 15Kg
  • Max Door Width: 700mm
• Height: 125mm
  • Door Thickness: 25mm to 35mm
  • Max Door Weight: 25Kg
  • Max Door Width: 780mm

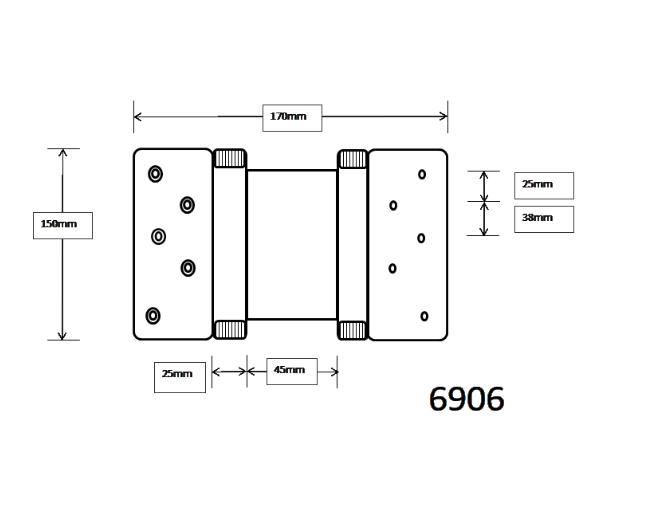

• Height: 150mm
  • Door Thickness: 25mm to 44mm
  • Max Door Weight: 35Kg
  • Max Door Width: 850mm
• Height: 200mm
  • Door Thickness: 35mm to 55mm
  • Max Door Weight: 55Kg
  • Max Door Width: 1000mm
• Height: 75mm
  • Door Thickness: 20mm to 25mm
  • Max Door Weight: 10Kg
  • Max Door Width: 650mm
• With these options, you can find the perfect hinge to meet your specific needs, ensuring both functionality and style in your space.
