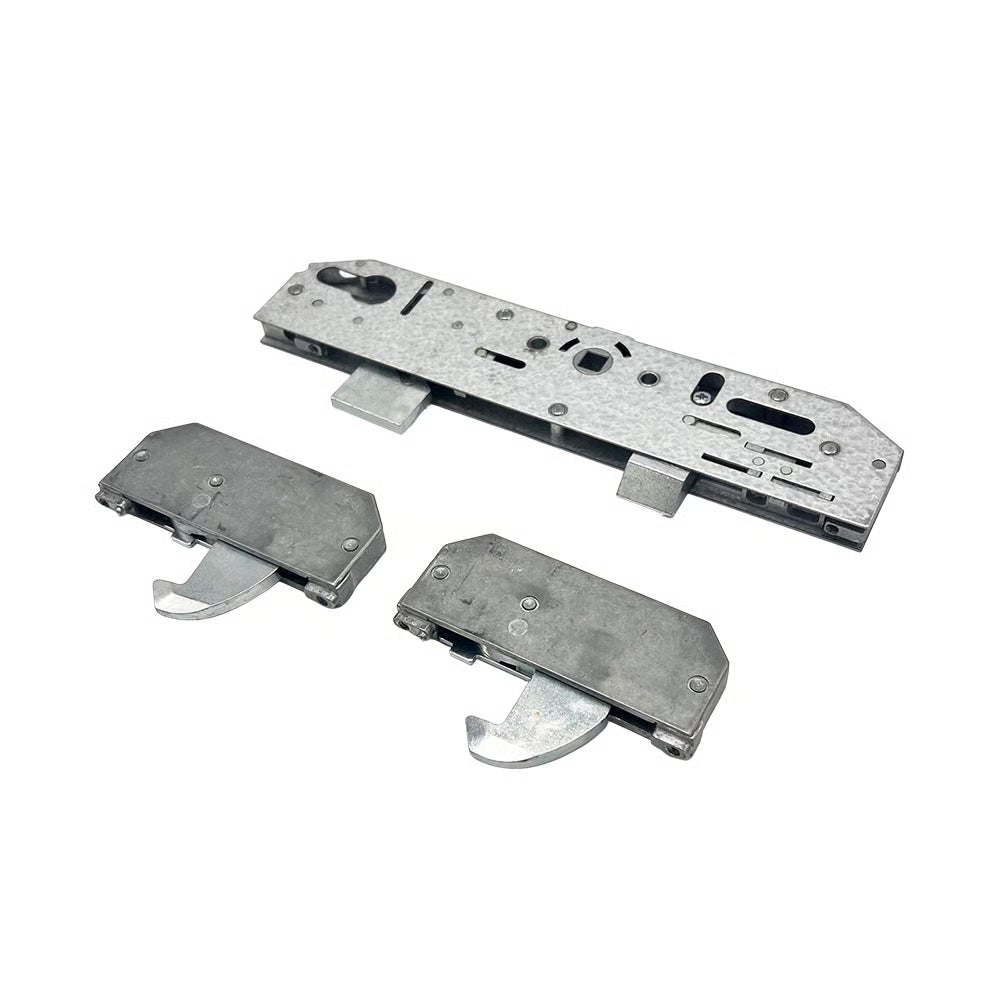

Liniar Bi-Fold Multipoint Refurb Kit

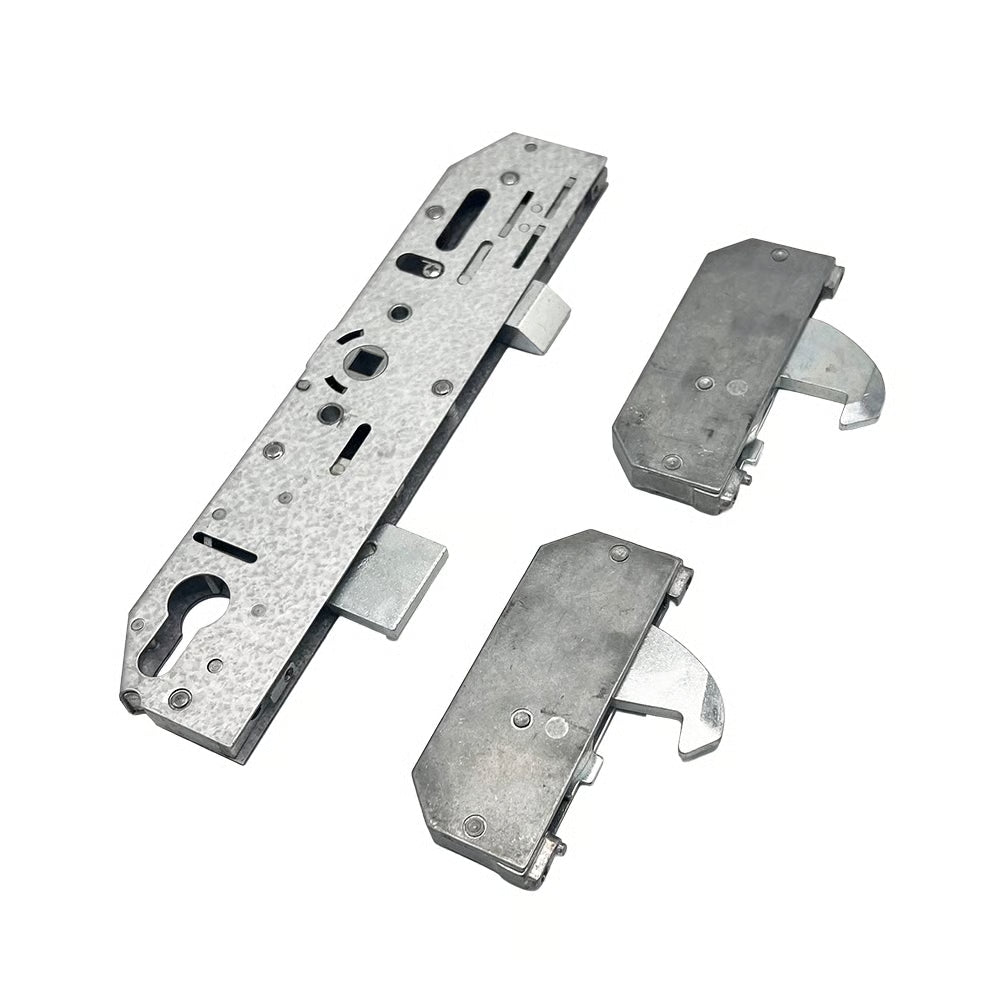

The Liniar Bi-Fold Multipoint Refurb Kit is an essential solution for restoring the functionality of reverse action Liniar bi-fold door locks. This comprehensive kit includes all the necessary components to refurbish multipoint locking mechanisms, ensuring your doors operate smoothly and securely.

Key Features

• Genuine Liniar Components: Trust in authentic parts for reliable performance.

• Multipoint Locking: Two hooks enhance security by engaging multiple points along the door frame.

• Versatile Gearbox: The main gearbox features both latch and deadbolt functions for added security.

• Standard Measurements:

• Backset: 35mm
• PZ Centres: 92mm
• Gearbox Height: 233mm

• Easy Installation: Non-handed design allows for installation on both left- and right-hand doors.

• Compatibility: Designed for use with euro profile cylinders.

Fitment & Installation Tips

To ensure a successful installation, follow these guidelines:

1. Backset Measurement: Confirm that the backset is 35mm to match your door preparation.

2. PZ Centres: Measure the distance between the spindle and cylinder to verify it is 92mm.

3. Spindle Size: Ensure the spindle size is 8mm and that the gearbox height of 233mm fits within the lock cavity of your door.

4. Door Handing: The non-handed design means you don’t need to worry about left or right orientation.

5. Cylinder Compatibility: Check that your existing cylinder is a euro profile for proper fit.

Product Specifications

• Manufacturer: Liniar
• Operation: Lift Lever
• Packaging: Supplied in singles
• Case Width: 50mm
• Copy/Genuine: Genuine
• Measuring Guidelines
• Backset Measurement: Measure from the edge of the door to the center of the lock.
• Centre Measurement: Measure from the center of the spindle to the center of the cylinder.

This refurb kit is designed to restore your bi-fold doors to optimal performance, ensuring security and ease of use.
