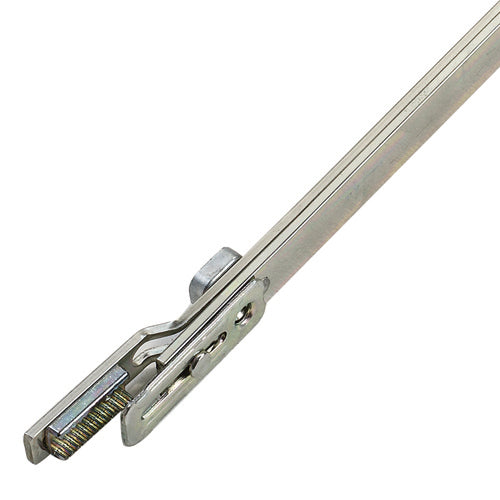

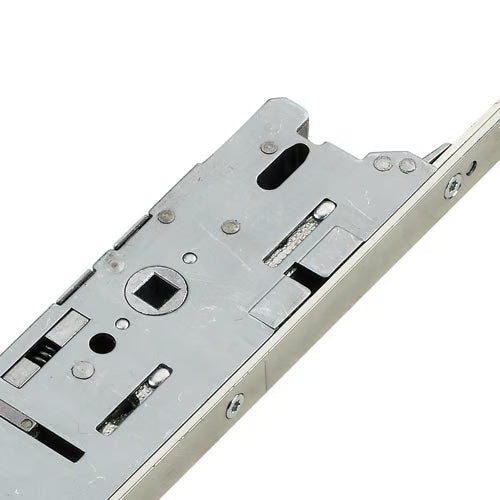

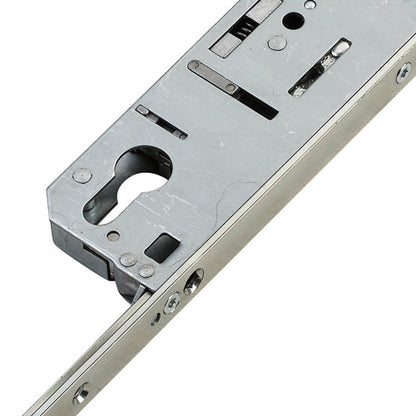

Lift Lever Slave Lock

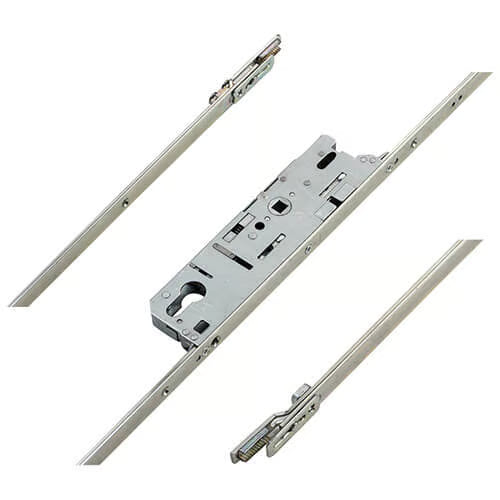

Product Overview: Fuhr Passive Multipoint Door Lock

The Fuhr Passive multipoint door lock is designed specifically for the passive leaf of French doors, providing a secure and reliable locking solution without the need for traditional locking points.

Key Features:

• Versatile Design: This lock is non-handed, making it suitable for both left and right-hand doors.
• Central Lock Mechanism: It features a central lock that connects to shoot bolts, ensuring the passive door leaf is securely held in place once the handle is lifted.
• Lift Lever Operation: The lock operates using a standard lift lever mechanism, simplifying the locking and unlocking process.
• Previous Terminology: Formerly known as "slave" door locks, Fuhr passive locks are available in various configurations, including a main lock and an espag with a separate locking handle (part DPMG01S).

How to Operate:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Additional Products:

We offer a comprehensive range of associated products for Fuhr Passive multipoint door locks, including keeps, spindles, handles, and various accessories, ensuring you have everything needed for installation and maintenance.

Applications:

This lock is versatile and can be utilized in various door types, including UPVC, aluminium, timber, and composite doors, making it an ideal choice for enhancing security in your home.

Product Specification

• Manufacturer: Fuhr
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Spindle: Single 8mm
• Handing: Non handed
• Height: 920mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure proper installation and functionality of the Fuhr Passive multipoint door lock, here are some helpful tips on how to measure the necessary components:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole or cylinder.
  • Ensure the measurement is accurate, as this will determine the correct backset size for your lock.
• Centres PZ Measurement:
  • Measure the distance from the center of the keyhole to the center of the handle hole.
  • This measurement is crucial for ensuring that the lock aligns properly with the handle.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate on the door.
  • If replacing an old lock, ensure the new faceplate matches these dimensions for a seamless fit.

By following these guidelines, you can ensure that your Fuhr Passive multipoint door lock is installed correctly and functions optimally.
