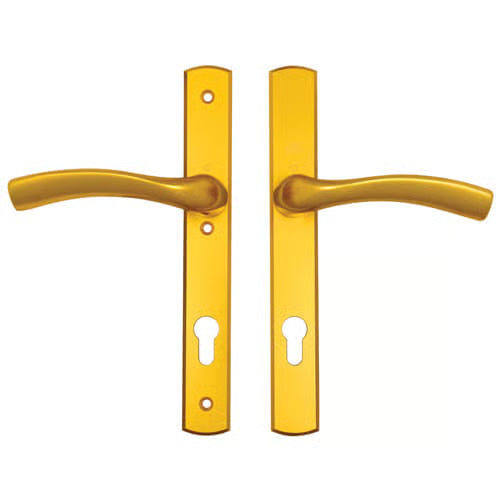

Introducing the Winkhaus Palladio handles, designed for both internal and external use. These unsprung lever handles feature a sleek backplate measuring 260mm x 35mm and are available in three elegant finishes to complement any decor.

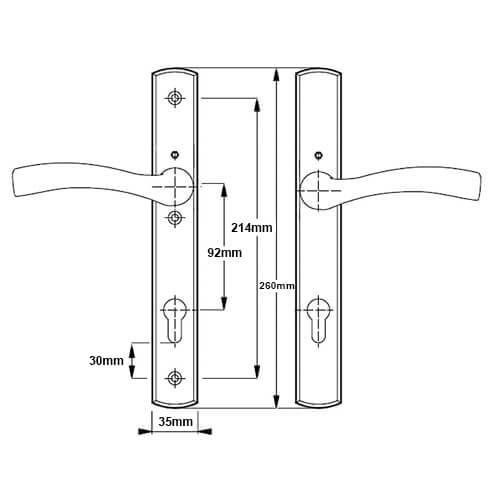

Each handle is equipped with three fixing screws, ensuring a secure installation. The middle fixing screw is positioned 22mm below the lever, while the distance between the top and bottom fixing screws is 215mm. Notably, the bottom screw is located 30mm below the euro profile cut-out, providing a precise fit for your door.
These handles are supplied as a pair and come complete with all necessary fixings, including a spindle and color-coordinated screws for a polished look.
Product Specification
Type: Unsprung
Length: 260mm
Width: 35mm
Centres (PZ): 92mm
Screw Centres: Top to bottom 215mm
Base of Euro to Bottom Screw: 30mm
Top Screw to Spindle: 70mm
Supplied With: Spindles and screws
Packaging: Supplied as a pair, polybagged
Elevate your space with the stylish and functional Winkhaus Palladio handles!
