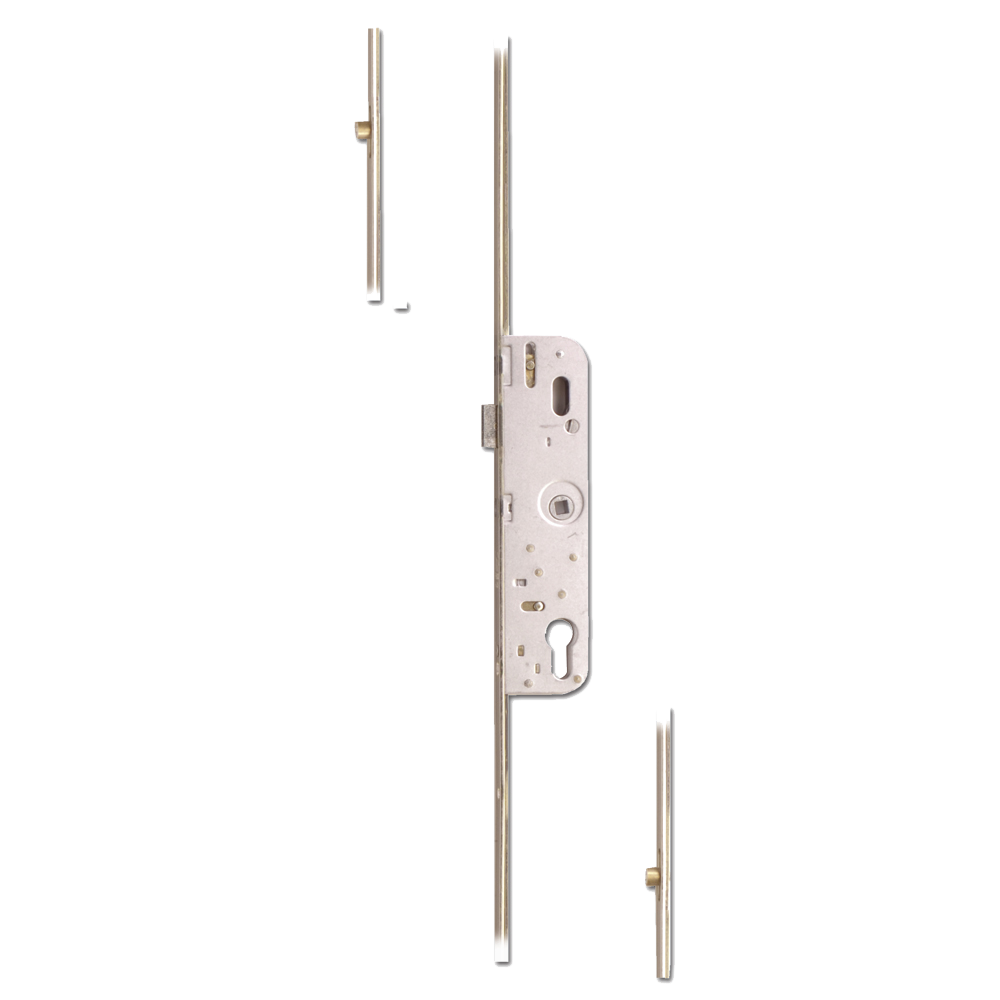

Lever Operated Latch Only - 2 Roller

The FERCO Lever Operated Latch Only - 2 Roller is a robust locking solution designed for specific applications. With a backset of 35mm and a case height of 198mm, it provides a reliable option for those needing to replace older locks.

While these locks have stood the test of time, it's important to note that they offer a lower security level compared to contemporary locking systems. Despite this, their prevalence in existing installations across the UK highlights the ongoing demand for compatible replacement options.

Identification

This lock's unique specifications—70mm centres, a 7mm spindle, and a latch-only centre case—make it easily identifiable, ensuring that users can find the right replacement without hassle.

Gearbox

The latch-only gearbox features a 7mm single spindle, with dimensions of 198mm in height and 48mm in width, ensuring compatibility with various door types.

Additional Locking Points

In addition to the primary locking mechanism within the gearbox, this unit includes two roller locking points along the full-length strip, enhancing its overall security.

Faceplate

The 16mm wide faceplate is designed for UPVC applications, with an overall length of 2200mm, making it versatile for different door installations.

Locking Point Distances

• Locking Point Distance A: 720mm
• Locking Point Distance B: 679mm

Croppable

This full-length unit is croppable, allowing for height adjustments to fit specific door requirements seamlessly.

Handing

Reversing the latch is straightforward: simply push in the latch hold cam on the side of the lockcase, remove the latch, reverse it, and reinsert it. A click will confirm proper engagement.

Sprung/Unsprung

The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles or a separate spring cassette.

Operation

Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the lock. To unlock, turn the key one full turn and push down on the lever.

Features

• Lift lever to engage locking mechanisms
• One full turn of the cylinder to lock
• One full turn of the key to unlock, followed by pushing down on the lever
• 16mm Faceplate
• Single Spindle

This lock is an excellent choice for those looking to maintain functionality while ensuring compatibility with existing installations.
