Lever Operated Latch & Hook Split Spindle 16mm - 2 Hook & 2 Roller

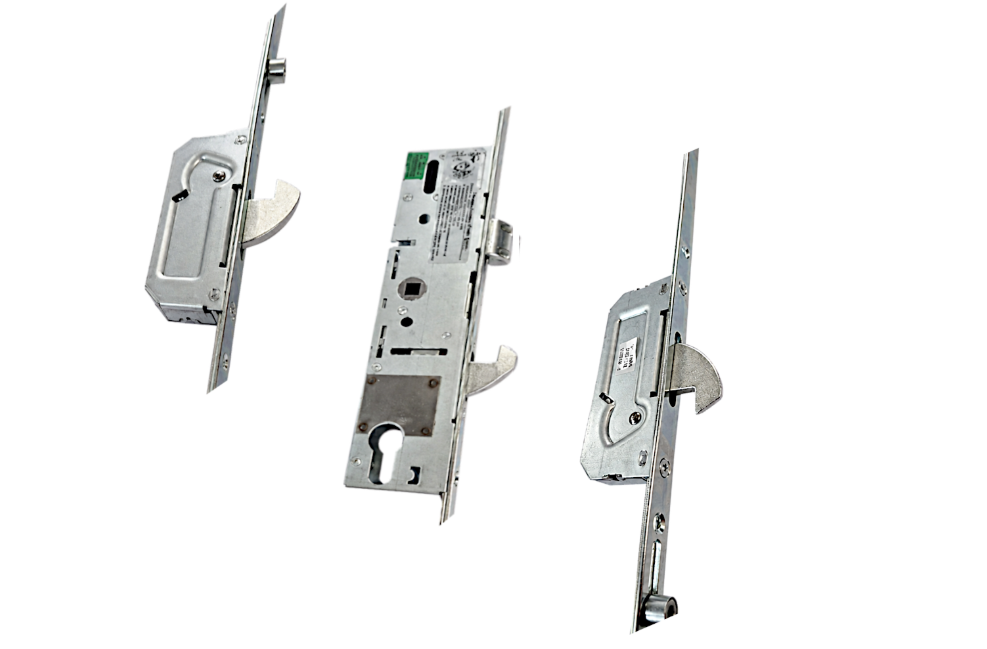

The ERA 6635 85BB Lever Operated Latch & Hook Split Spindle Multipoint Lock is engineered for superior security and functionality, making it an ideal choice for residential and commercial applications.

This multipoint locking system boasts a 35mm backset and 92mm centres, ensuring compatibility with a variety of door types. With a robust case height of 220mm and a width of 53mm, it features a split spindle operation that enhances security through its latch and hookbolt centre case design.

High Security Standards

Designed to meet the rigorous Secured by Design standards, this lock has successfully passed PAS23 and PAS24 testing criteria, ensuring it provides a high level of security against forced entry.

Accreditation

This product is not only PAS24 compliant but also holds Secured by Design accreditation, reflecting its commitment to safety and security.

Identification

The faceplates of this lock are typically stamped with the ERA logo but may also feature branding from other reputable manufacturers such as Cego, Duraflex, Saracen, Spartan, Supa, Surelock, and Westward.

Gearbox Specifications

The latch and hookbolt gearbox is designed with a split spindle, featuring a case height of 220mm and a case width of 53mm, ensuring smooth operation and reliability.

Additional Locking Points

Beyond the primary locking points within the gearbox, this system includes a full-length strip that incorporates 2 hooks and 2 rollers for enhanced security.

Optional Shootbolts

For added security, this unit can be fitted with optional shootbolts, providing an extra layer of protection.

Faceplate Details

The 16mm wide faceplate is specifically designed for UPVC applications, with an overall length of 2100mm, making it versatile for various installations.

Locking Point Distances

• Locking Point Distance A = 730 mm
• Locking Point Distance B = 750 mm
• Locking Point Distance C = 837 mm
• Locking Point Distance D = 856 mm

Croppable Design

This full-length unit is croppable, allowing for height adjustments to fit the specific door it is being installed into.

Handing Features

The latch can be easily reversed by removing the latch screws, withdrawing the latch, rotating it to the opposite hand, and refitting the screws, providing flexibility in installation.

Sprung Mechanism

The gearbox is sprung, incorporating an internal spring mechanism that assists with lever return, eliminating the need for sprung handles or a separate spring cassette.

Operation Instructions

To operate, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, simply turn the key one full turn and push down on the lever.

Key Features

• Secured by Design (SBD licence held by ERA Home Security Limited)
• Snib facility as standard on all locks
• 16mm Faceplate
• Non-handed lock mechanism with reversible sash bolt
• Split Spindle for lever/pad applications
• Bi-directional throw of locking feature for enhanced anti-jemmy protection

This multipoint lock combines advanced security features with user-friendly operation, making it a reliable choice for safeguarding your property.
