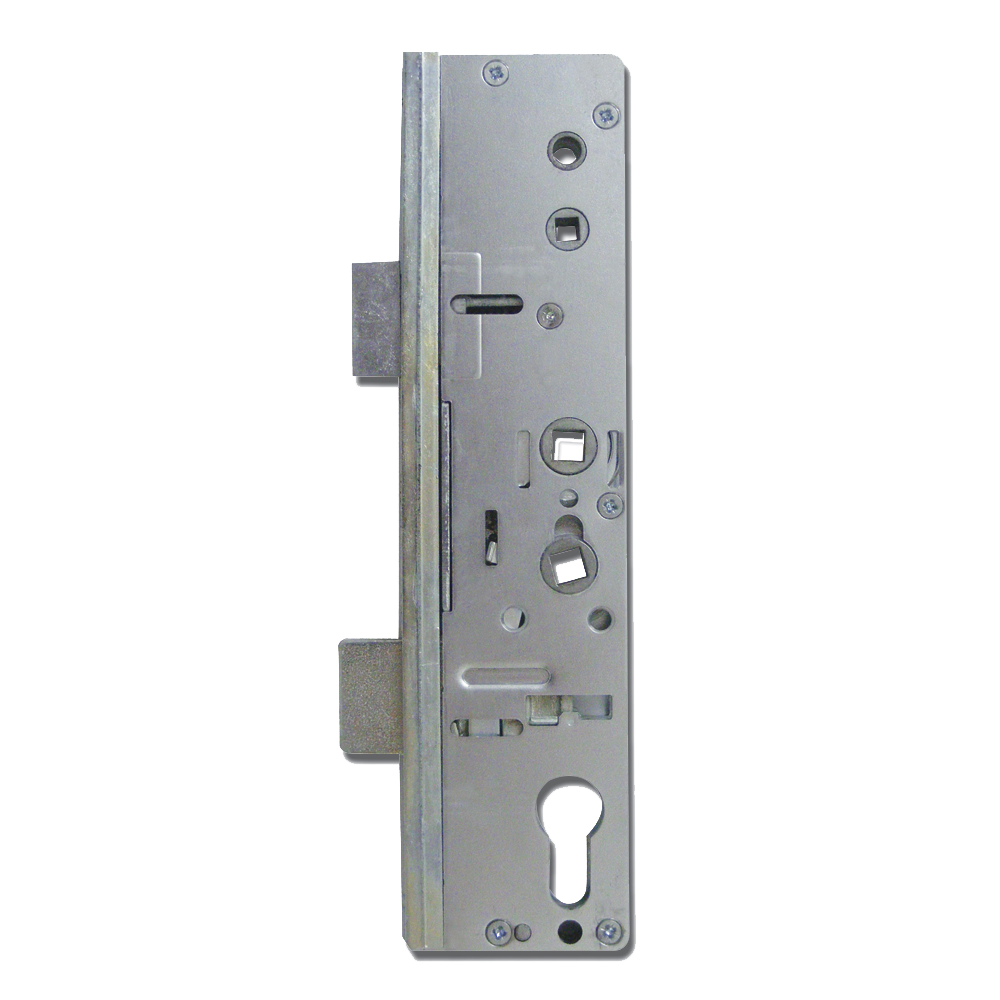

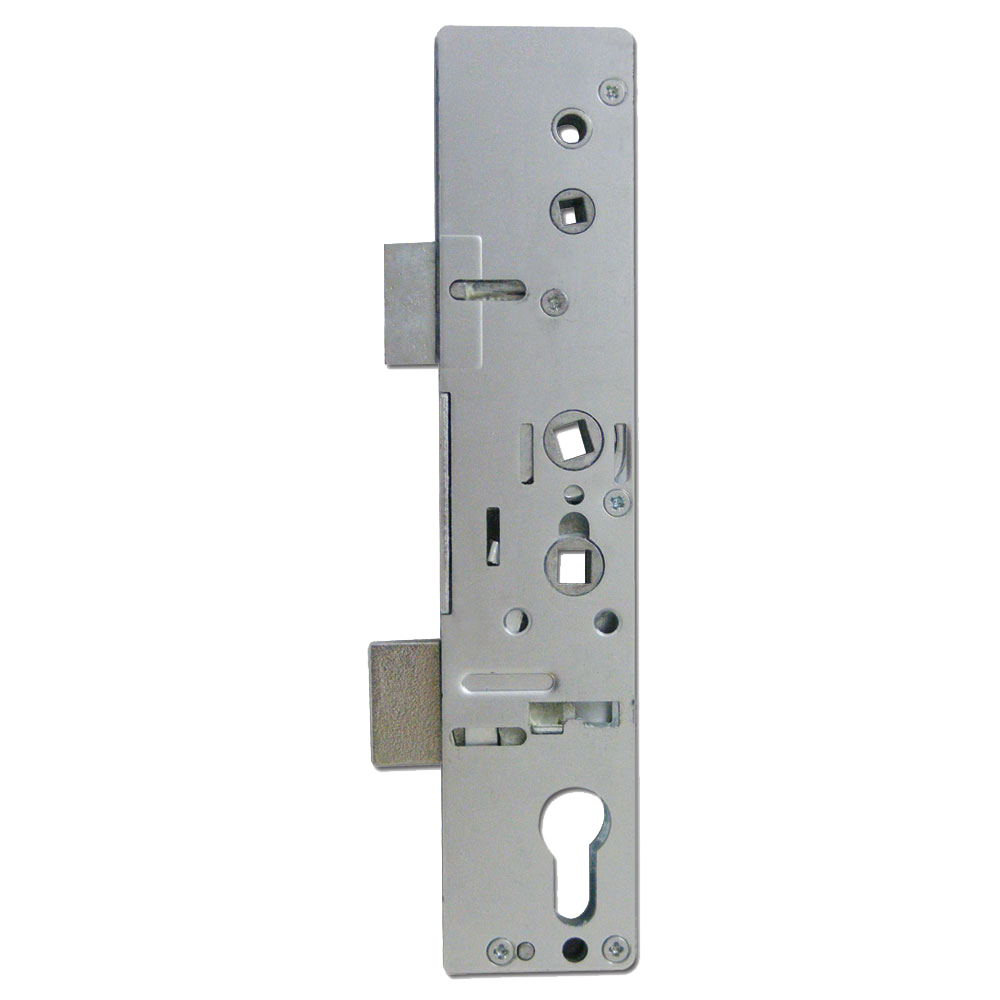

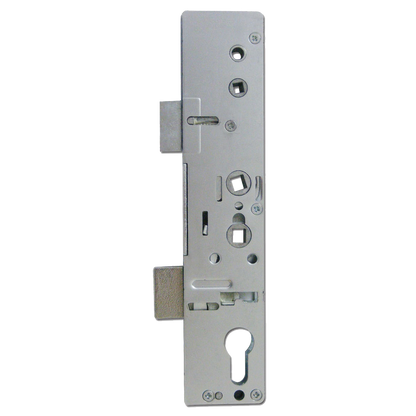

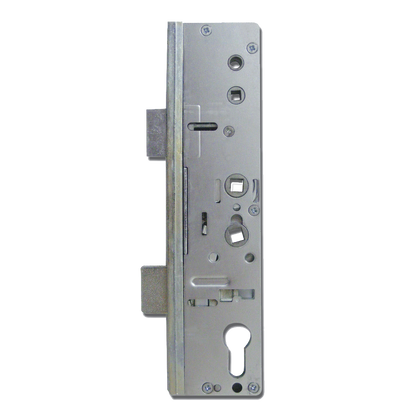

Lever Operated Latch & Deadbolt Twin Spindle Gearbox

The LOCKMASTER Lever Operated Latch & Deadbolt Twin Spindle Gearbox is designed for versatility and reliability, making it an ideal choice for various locking needs. With options for 35mm or 45mm backset and 92mm & 62mm centres, this gearbox accommodates a range of installations. Its robust construction features a 228mm case height and a choice between 50mm or 60mm case width, ensuring a secure fit in your door.

This gearbox serves as a cost-effective repair solution for common lock failures, especially when the locking strip remains functional. By replacing just the gearbox, you can restore your lock's performance without the need for a complete lock replacement.

Handing
The latch is easily reversible, allowing for flexibility in installation. Simply remove the screw in the latch, take it out, flip it to the opposite hand, and reattach the screw for seamless operation.

Operation

• Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push down on the lever.

Features

• Designed to suit Lockmaster systems
• Twin spindle configuration
• Centre gearbox only
• Combines latch and deadbolt functionality
• Compatible with Euro profile lock cases

This gearbox not only enhances security but also simplifies the locking process, making it a practical choice for both residential and commercial applications.
