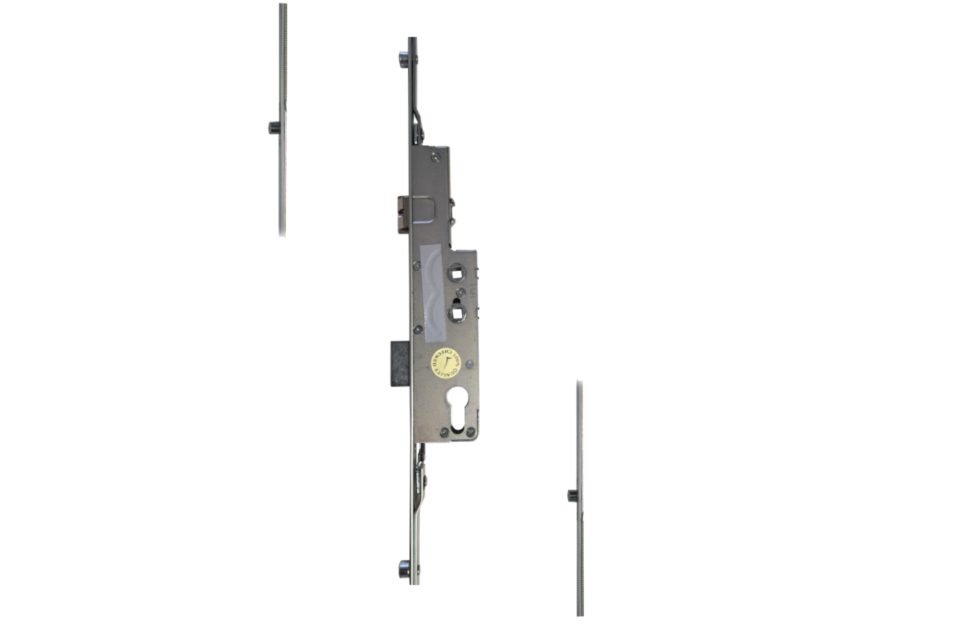

Lever Operated Latch & Deadbolt Twin Spindle - 4 Roller

The AVOCET Lever Operated Latch & Deadbolt Twin Spindle - 4 Roller is a robust locking solution designed for enhanced security and ease of use. With a 35mm backset and options for 92mm & 62mm centres, it fits a variety of door configurations. The case dimensions of 220mm in height and 50mm in width ensure a snug fit, while the twin spindle design allows for both latch and deadbolt functionality.

Identification
Look for "AVOCET" or "WMS" stamped on the faceplate. The center case features a distinctive large cut-out step in the top corner, making identification straightforward.

Gearbox
This latch & deadbolt gearbox is engineered with a twin spindle, maintaining the same case height of 220mm and width of 50mm for compatibility.

Additional Locking Points
Beyond the internal locking mechanisms, the full-length strip incorporates 4 roller locking points, providing additional security.

Faceplate
The 16mm wide faceplate is specifically designed for UPVC and composite applications, extending to a length of 2.2m, ensuring versatility in installation.

Locking Point Distances

• Locking Point Distance A: 168 mm
• Locking Point Distance B: 215 mm
• Locking Point Distance C: 761 mm
• Locking Point Distance D:: 811 mm

Croppable
This full-length unit can be cropped to adjust the strip height, allowing for a customised fit to the door it is being installed into.

Handing
Reversing the latch is simple: remove the screw, take out the latch, flip it to the opposite hand, and reinsert the screw.

Spung/Unsprung
The gearbox is unsprung, necessitating the use of sprung handles or a compatible spring cassette to ensure proper operation and reliable lever return.

Operation
To lock, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn. To unlock, turn the key one full turn and push down on the lever.

Features

• Lift lever to engage locking mechanisms
• One full turn of the cylinder to lock
• One full turn of the key to unlock
• 16mm Faceplate
• Twin spindle design
• Latch & deadbolt functionality
• Euro profile lock case

This comprehensive locking system combines functionality with security, making it an ideal choice for various door types.
