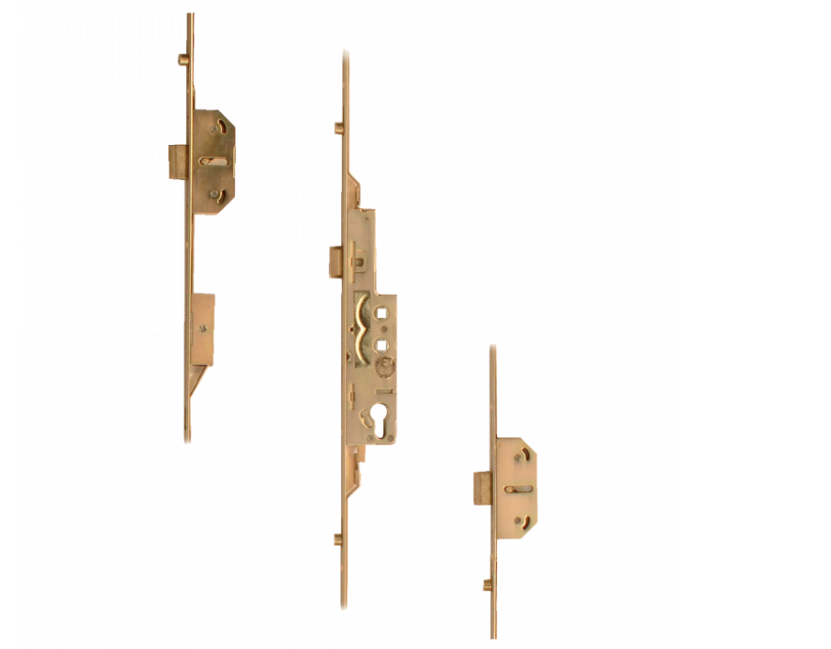

Lever Operated Latch & Deadbolt Twin Spindle - 2 Dead Bolt 4 Roller

The AVOCET Lever Operated Latch & Deadbolt Twin Spindle is designed for optimal security and ease of use. Here’s a detailed overview of its features and specifications:

Key Features

• Backset & Dimensions:

  • 35mm backset
  • 220mm case height
  • 50mm case width
  • 92mm & 62mm centres

• Locking Mechanism:

  • Twin spindle design with a latch and deadbolt centre case.
  • Incorporates 2 dead bolts and 4 roller locking points for enhanced security.

• Identification:

  • Typically marked with "AVOCET" or "WMS" on the faceplate for easy identification.

Gearbox Specifications

• Gearbox Type:
  • Unsprung gearbox requiring sprung handles or a compatible spring cassette for reliable operation.
  • Case height of 220 mm and case width of 50 mm.

Faceplate Details

• Faceplate Size:
  • 16mm wide, suitable for UPVC and composite applications.
  • Full length of 1.92 m, which can be cropped to fit specific door heights.

Locking Point Distances

• Distances:
  • Locking Point Distance A: 168 mm
  • Locking Point Distance B: 215 mm
  • Locking Point Distance C: 685 mm
  • Locking Point Distance D: 715 mm
  • Locking Point Distance E: 780 mm
  • Locking Point Distance F: 810 mm

Handing and Operation

• Handing:

  • The latch can be reversed easily by removing the screw, flipping the latch, and refitting the screw.

• Operation:

  • To lock, lift the lever to engage the mechanisms, then turn the cylinder fully.
  • To unlock, turn the key fully and push down on the lever.

Conclusion

The AVOCET Lever Operated Latch & Deadbolt Twin Spindle is an excellent choice for those seeking a robust locking solution that combines functionality with security. Its versatile design and easy installation make it suitable for various door types.
