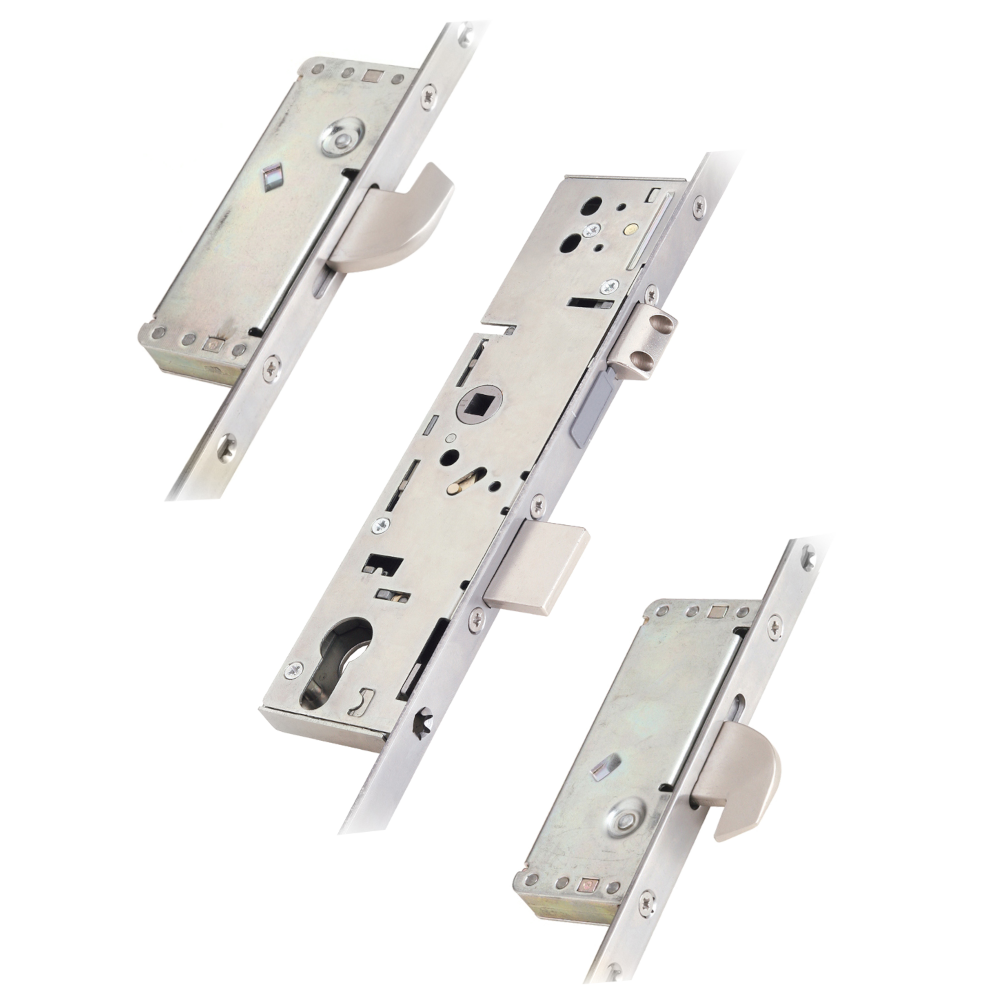

Lever Operated Latch & Deadbolt Split Spindle With 2 Large Hooks 20mm Radius Faceplate

The ERA Lever Operated Latch & Deadbolt Split Spindle With 2 Large Hooks 20mm Radius Faceplate multipoint lock is engineered for superior security and functionality. With a robust design featuring a 45mm backset, 92mm centres, and a case height of 220mm, this lock is ideal for both residential and commercial applications.

Key Features:

• High-Security Design: Meets Secured by Design standards and has successfully passed PAS23 and PAS24 testing criteria, ensuring top-notch security.
• Accreditation: Fully compliant with PAS24 and Secured by Design accredited, providing peace of mind for users.
• Durable Gearbox: The latch and deadbolt gearbox features a split spindle design, enhancing versatility and ease of use.
• Additional Locking Points: Includes 2 large hook locking points for added security, integrated within the full-length strip.
• Versatile Faceplate: The 20mm wide radius faceplate is suitable for both composite and timber doors, with an overall length of 1635mm.
• Locking Point Distances:
• Locking Point Distance A = 728mm
• Locking Point Distance B = 667mm
• Croppable: Note that this unit cannot be cropped on site; ensure the required overall length is confirmed prior to purchase.
• Handing: The latch can be easily reversed by removing screws, allowing for flexible installation.
• Sprung Mechanism: The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles.
• Operation: Engage the locking mechanisms by lifting the lever, then turn the cylinder one full turn to secure. To unlock, simply turn the key and push the lever down.

This multipoint lock is not only functional but also designed to provide maximum security, making it an excellent choice for safeguarding your property.
