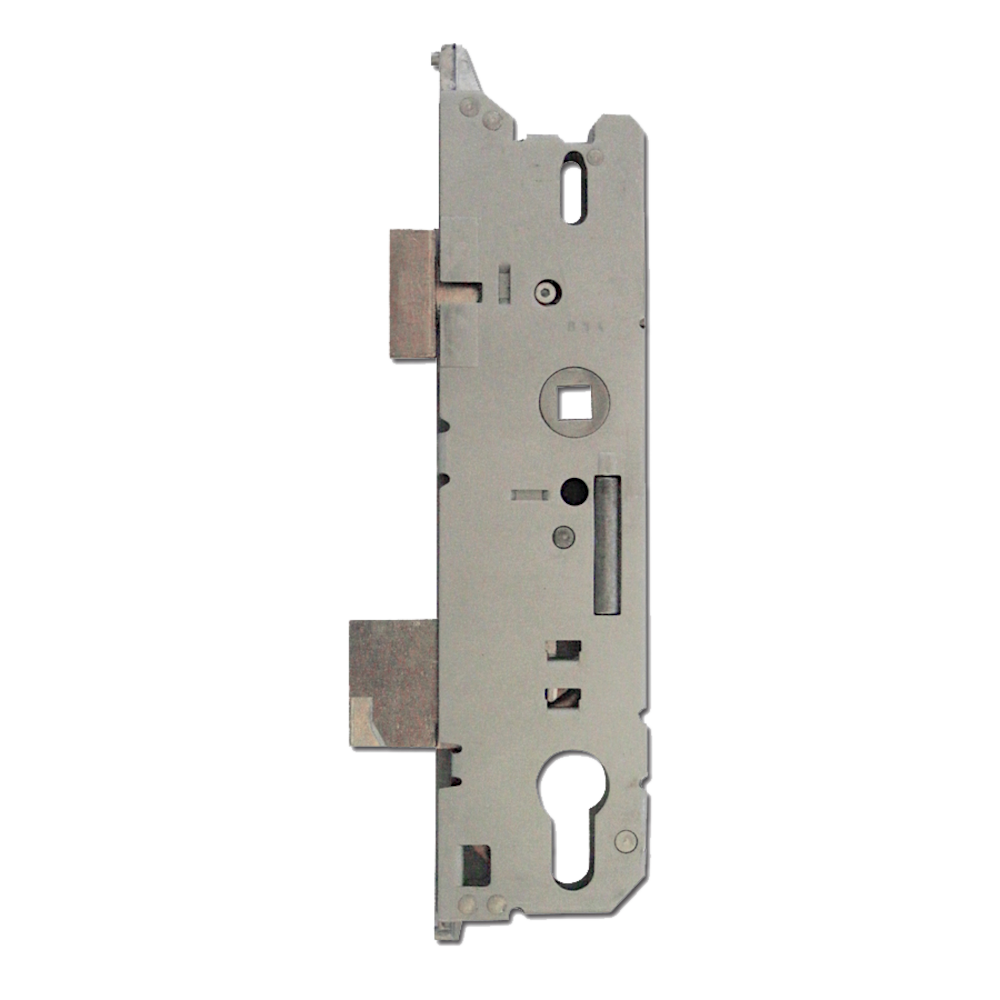

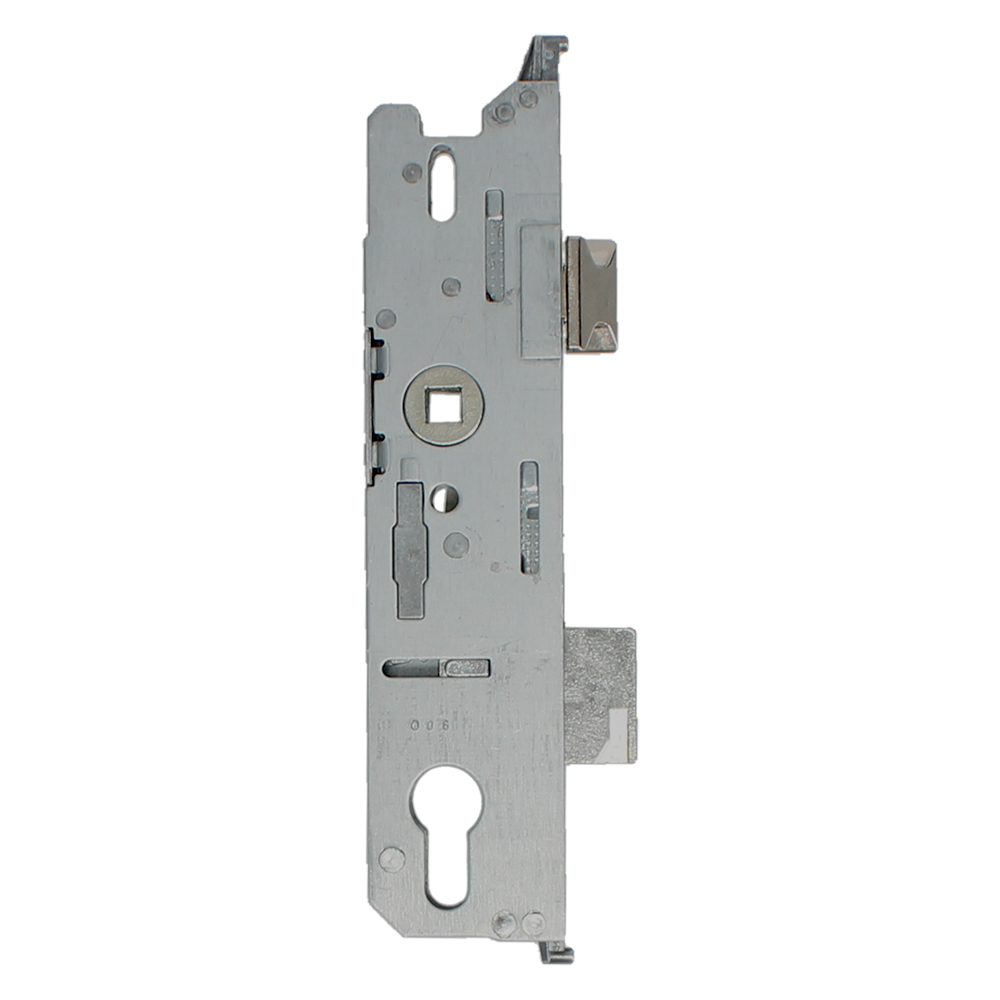

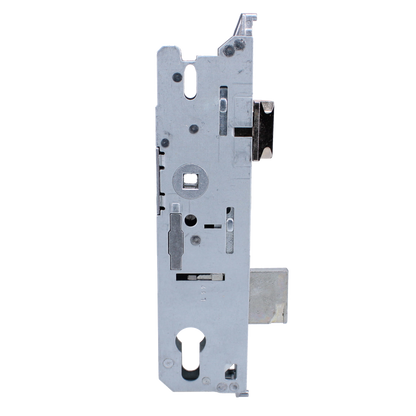

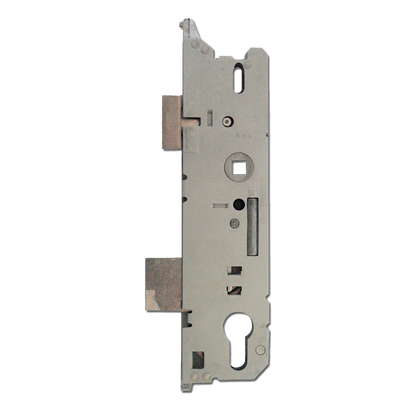

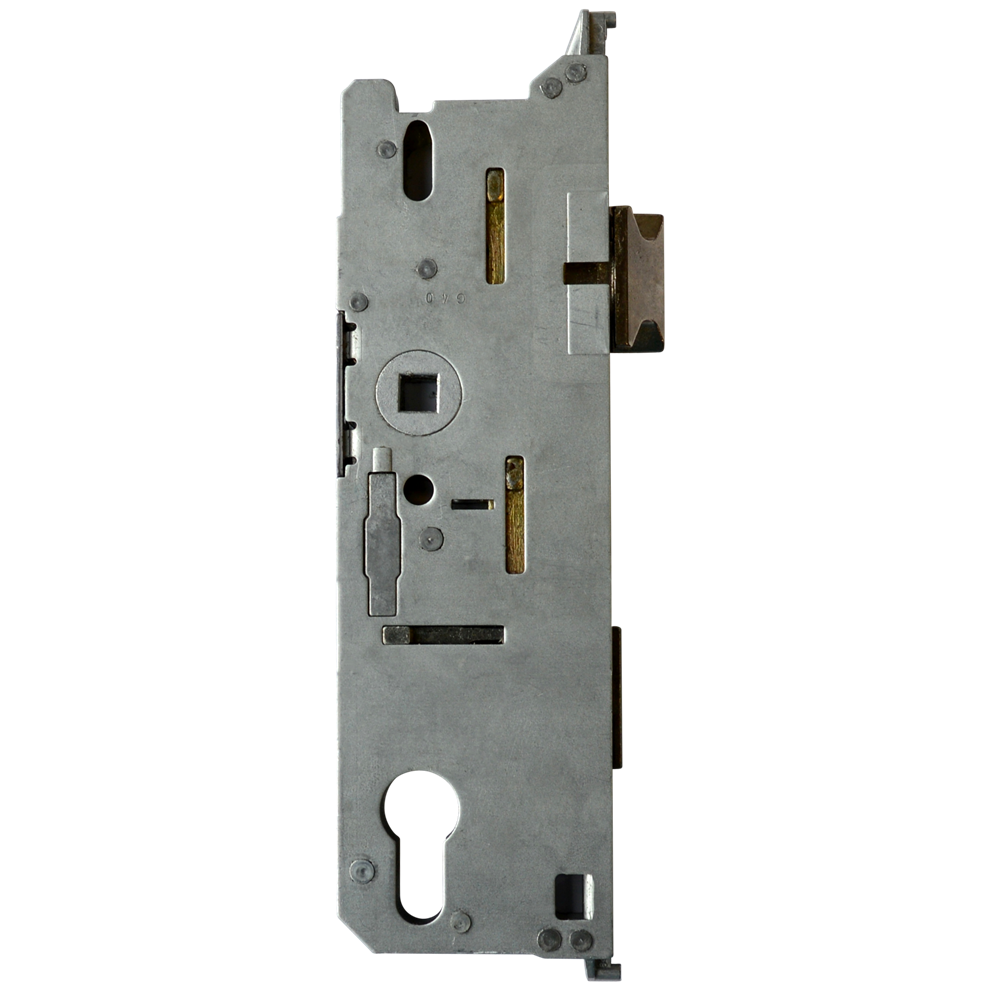

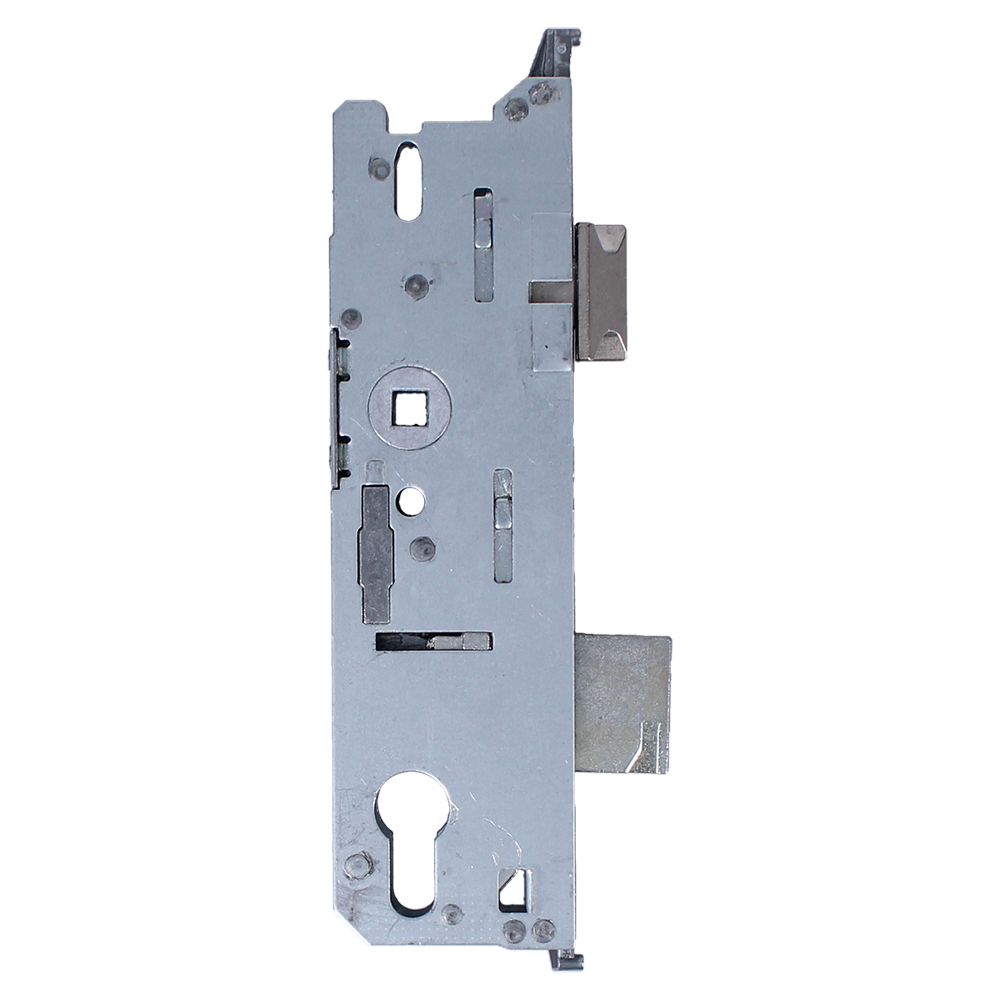

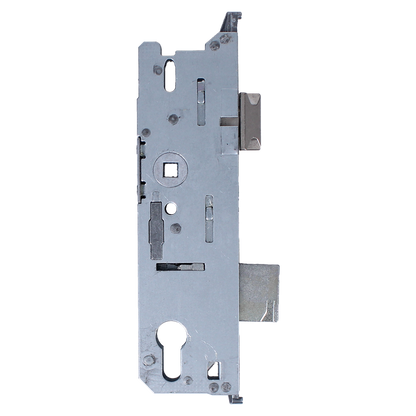

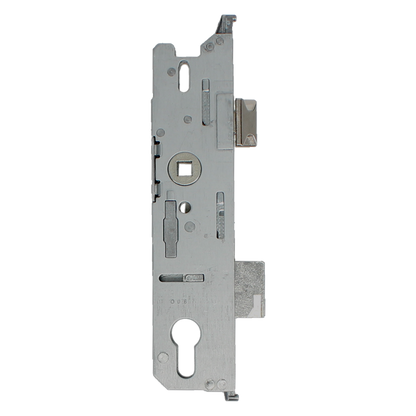

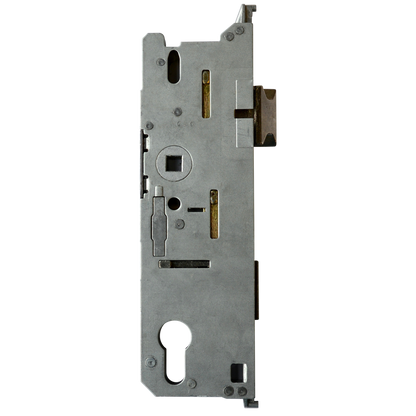

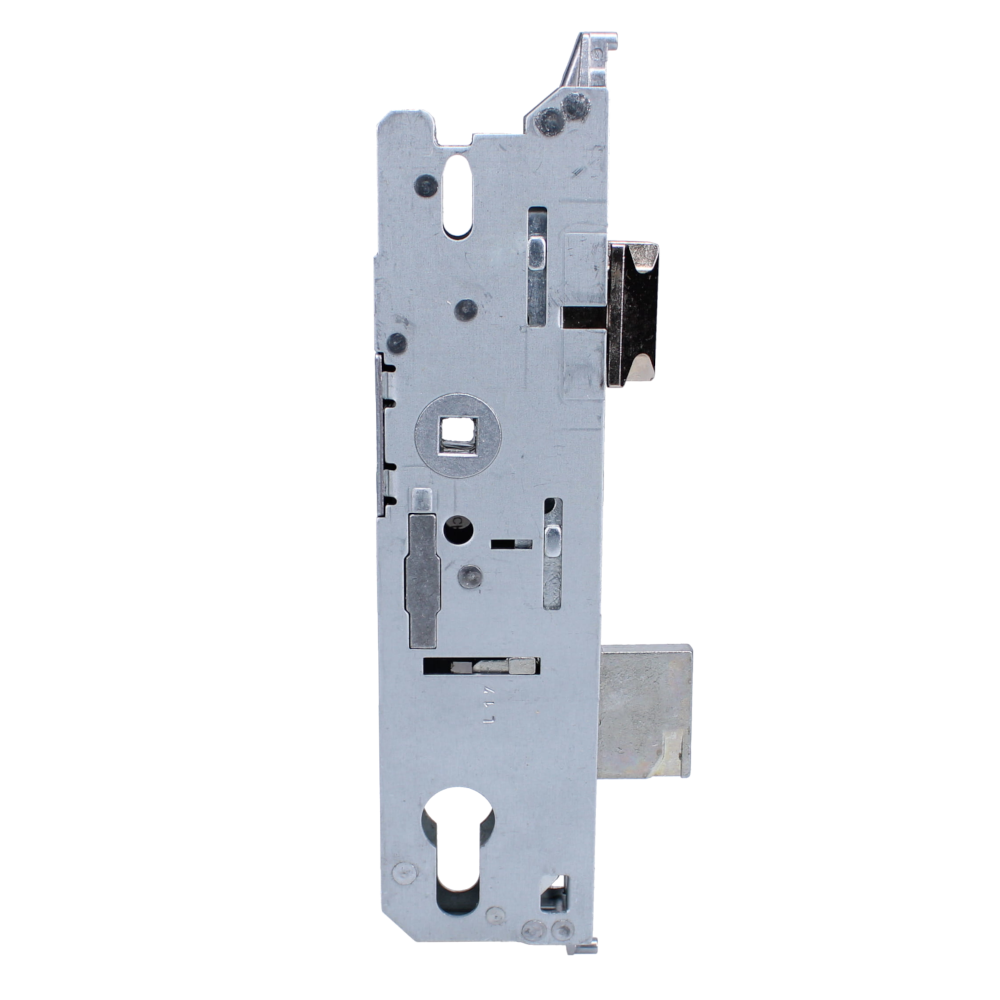

Lever Operated Latch & Deadbolt Split Spindle - Centre Case

The FUHR Lever Operated Latch & Deadbolt Split Spindle Centre Case is a versatile locking solution designed for enhanced security and ease of use. With options for a 35mm, 45mm, or 55mm backset and 92mm centres, this centre case is adaptable to various door configurations. Its dimensions include a 200mm case height and a choice between 50mm or 70mm case widths, making it suitable for a range of installations.

This split spindle centre case operates seamlessly with FUHR multipoint locks, allowing for lever and pad or lever and lever handle setups. It serves as a direct replacement, eliminating the need for a complete locking strip change, which simplifies the installation process.

Handing

To reverse the latch, locate the Allen screw on the side of the lockcase aligned with the latch. Remove the screw, reverse the latch, and then reinsert the Allen screw to secure it in place.

Operation

Locking Method – A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the lock. To unlock, simply turn the key one full turn and push the lever down.

Important Notes

Please note that the ball bearing, screw, and spring necessary for the operation of this centre case are sold separately. The corresponding Aldridge product codes for these components are L23669, L23670, and L23671.

Features

• Euro cylinder
• Split spindle
• Centre Gearbox Only
• Latch & deadbolt configuration
• Euro profile lock case

For detailed specifications, please refer to the datasheet.
