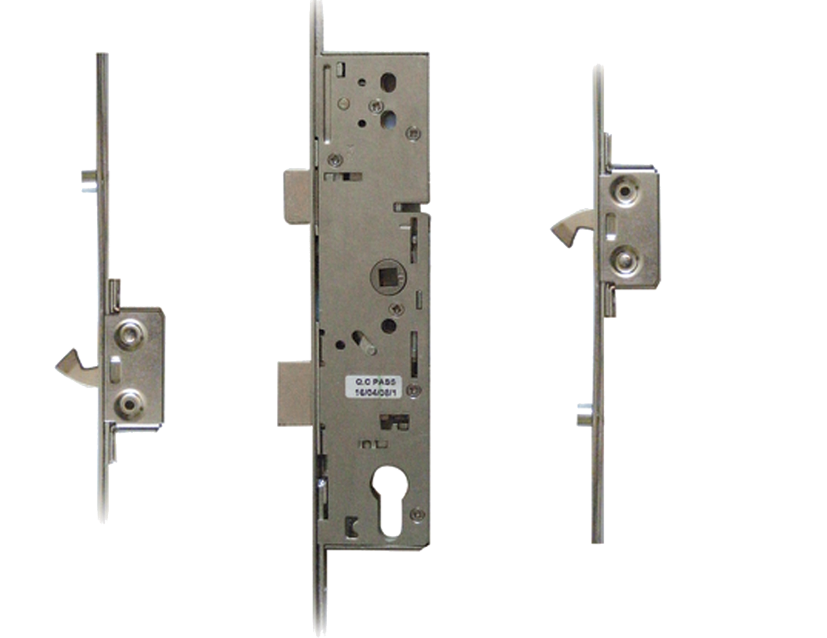

Lever Operated Latch & Deadbolt Split Spindle - 2 Hook 2 Roller

The ERA Lever Operated Latch & Deadbolt Split Spindle Multipoint Lock is designed for enhanced security and ease of use. Here’s a detailed overview of its features and specifications:

Key Features

• Backset & Centres: The lock features a 35mm backset and 92mm centres, making it compatible with a variety of door types.
• Gearbox Dimensions: The gearbox measures 220mm in height and 53mm in width, incorporating a split spindle for efficient operation.
• Locking Mechanism: This multipoint lock includes a latch and deadbolt center case, along with 2 hook and 2 roller locking points for added security.

Identification

• The faceplate is clearly stamped with "ERA," and the lock can be easily identified by its unique small hook locking points.

Additional Specifications

• Faceplate: The 16mm wide faceplate is ideal for UPVC and composite doors, with an overall length of 2250mm. It can be cropped to fit specific door sizes.

• Locking Point Distances:

  • Distance A: 615mm
  • Distance B: 615mm
  • Distance C: 710mm
  • Distance D: 710mm

Handing & Operation

• Handing: The latch can be reversed for left or right-hand doors by adjusting the latch retaining screws.

• Operation: To engage the locking points, lift the lever handle and turn the cylinder one full turn to lock. To unlock, simply turn the cylinder one full turn and push down on the lever handle.

Additional Features

• Sprung Mechanism: The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for additional sprung handles.

• Enhanced Security: The bi-directional throw of the locking feature provides an anti-jemmy advantage, while the central brass deadbolt throws 22mm to prevent unauthorized entry.

• Snib Facility: All locks come with a snib facility as standard, enhancing usability.

Conclusion

The ERA Lever Operated Latch & Deadbolt Split Spindle Multipoint Lock is a robust and versatile locking solution, perfect for ensuring the security of your doors while offering ease of operation.
