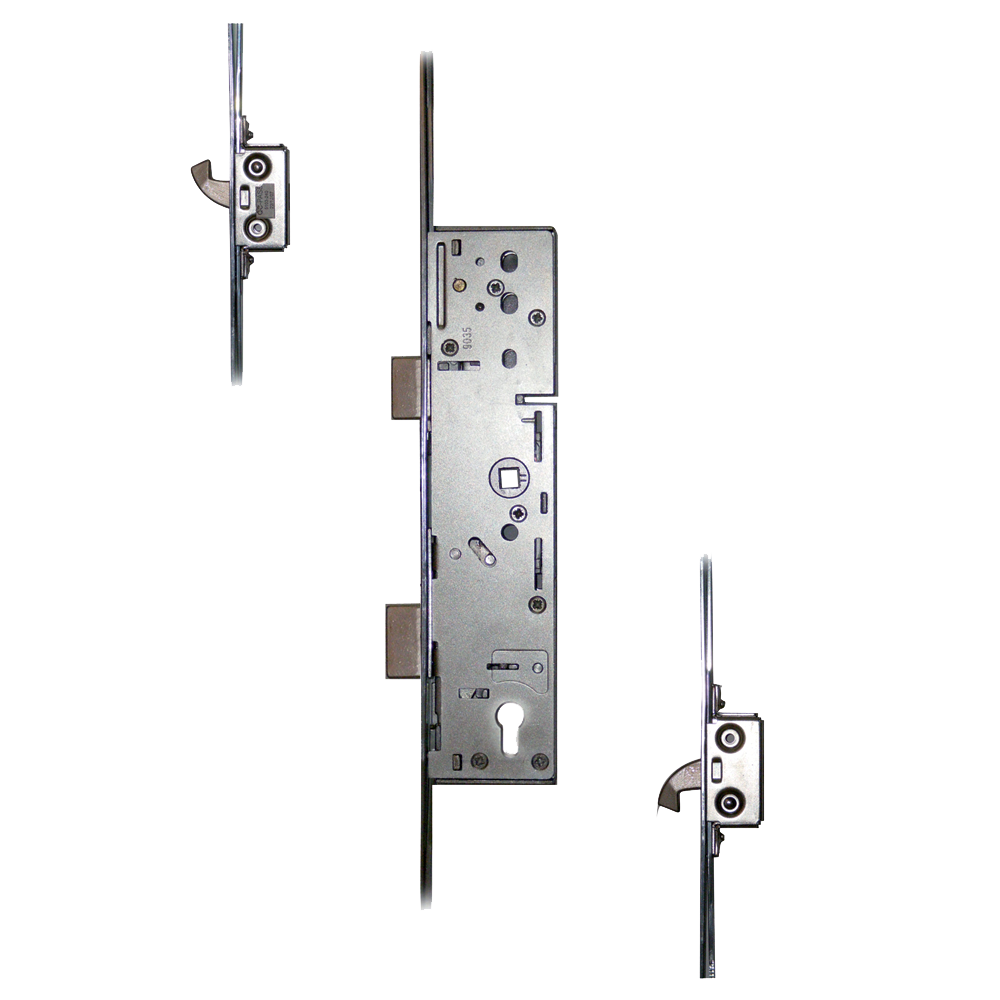

Lever Operated Latch & Deadbolt Split Spindle- 2 Hook

• The ERA Lever Operated Latch & Deadbolt Split Spindle - 2 Hook Multipoint Lock is designed for enhanced security and ease of use, making it an ideal choice for both UPVC and composite doors.

Key Features

• Backset & Centres: With a 45mm backset and 92mm centres, this lock fits a variety of door configurations.
• Gearbox Dimensions: The gearbox measures 220mm in height and 63mm in width, featuring a split spindle design for versatile operation.
• Additional Locking Points: This multipoint lock includes two hook locking points, providing extra security beyond the standard latch and deadbolt.
• Faceplate Specifications: The 16mm wide faceplate is suitable for various door types and can be cropped to fit specific installations, with an overall length of 2250mm.
• Locking Point Distances:
• • Locking Point Distance A: 680mm
  • Locking Point Distance B: 700mm

• Handing Flexibility: The latch can be easily reversed to accommodate different door handings, ensuring a perfect fit for your installation needs.

• Sprung Mechanism: The internal spring mechanism aids in lever return, eliminating the need for additional sprung handles.

Operation Instructions

1. Locking: Lift the lever handle to engage the locking points, then turn the cylinder one full turn to secure the door.

2. Unlocking: To unlock, turn the cylinder one full turn and push the lever handle down to retract the locking points.

Additional Notes

• This model is referred to as the "Replacement Lock" by ERA.
• It holds a Secured by Design (SBD) license, ensuring it meets high-security standards.
• The bi-directional throw of the locking feature enhances its anti-jemmy capabilities, providing peace of mind against unauthorized entry.

This multipoint lock combines functionality with robust security features, making it a reliable choice for safeguarding your property.
